Controller functions:
Manual control - precise steering and throttle control. Return-to-Home - automatic return if connection lost or safety limit reached. Automatic/manual mode switching - Convenient switching between autonomous and pilot-controlled modes. Engine on/off - quick access to engine control. Control lights - ability to switch lights on/off as required. Control interface: Ergonomic handle with joystick and button layout for comfortable long-term use. 7" (or larger) colour display with touch screen - clear and real-time data display. Real-time telemetry - GPS position, battery level, sensor data and other critical parameters. Programmable buttons - customisable functions according to user needs. Security and reliability: Automatic disconnection in the event of a security incident. Software updates during warranty, providing the latest features and security enhancements. Additional features: Intuitive and customisable user interface - easy to use for both novice and experienced operators. Wide operating temperature range (-10°C to +50°C) - ensures stable operation in a wide range of conditions. Included accessories - charger and carrying strap. This control panel provides complete control and safety, making unmanned boat operations efficient and comfortable in any conditions.

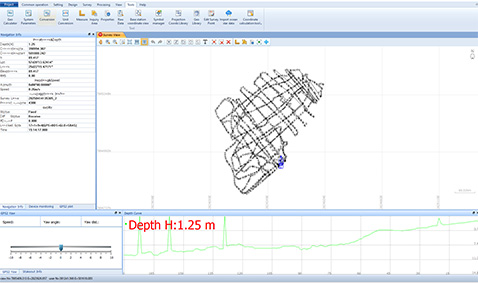

The software (ALPHA-NAV)

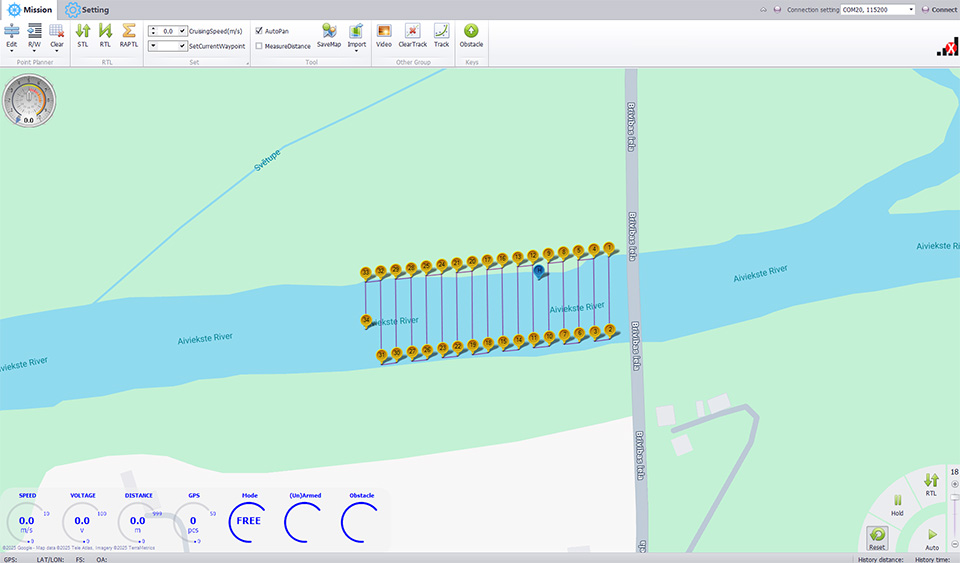

Provides full control and data analysis of unmanned boat operations in real time. Its permanent licence includes: Real-time visualisation of echolocation measurements - accurate depiction of depth and bottom relief. Automated mission planning - a convenient routing tool for efficient operations. Data export in popular formats (ASCII, DWG, DXF) - easy data processing and integration with other systems. UAV status monitoring - battery level, speed, sensor data and other critical parameters. GNSS quality and accuracy analysis - high-precision positioning monitoring. Compatible with Windows 11 Pro or equivalent, ensuring stable operation in a professional environment. Ideal solution for hydrography, research and any unmanned boat applications where reliable and functional software is required.

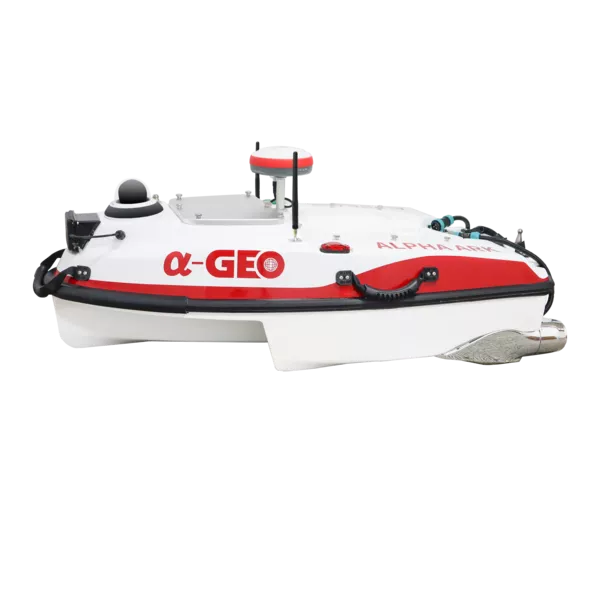

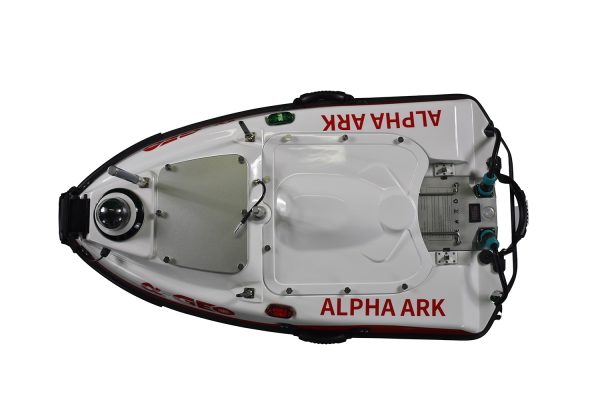

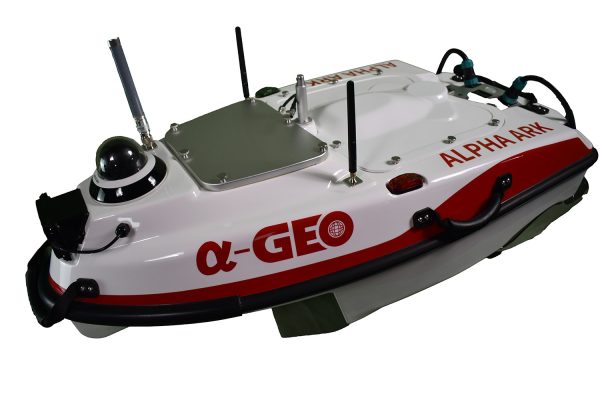

Alpha ARK
SPECIFICATION
- Hull dimension (L × W × H)
1180mm×620mm×345mm
- Hull material
Kevlar + Carbon fibre material
- Hull weight
15kg
- Standard displacement
25kg
- Maximum displacement
30kg
- Anti-wave &wind
5th wind level and 3rd wave level
- Boat shape
M-type trimaran
- Navigation lights
A pair of two-color navigation lights

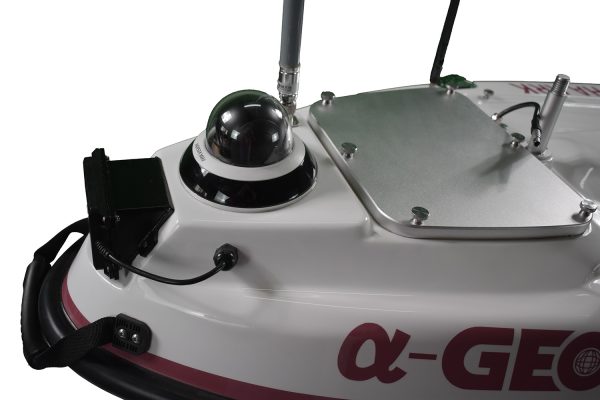

- Camera
360° full view camera
- Available Instrumentation
Single-beam echo sounder(Standard)
Side scan sonar(Optional)
ADCP(Optional)
Online water quality monitoring system(Optional)
Water sampling System(Optional)
Electrical
- Battery life
6 hours (1.5 - 2 m/s)
- Cruising speed
1.5 - 2 m/s
- Maximum speed
6 m/s
- Motor
Brushless DC motor ( BLDCM)

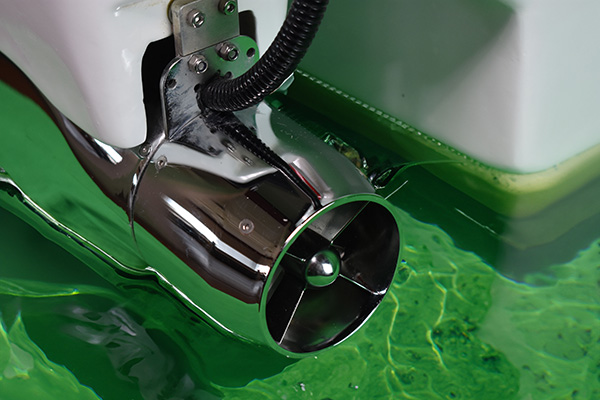

- Propeller
Ducted propeller
Navigation and commander System
- Navigation model
Electrical
Automatic mode
Cruise mode
- Positioning system(Optional)
GPS/BeiBou
RTK
Specified GNSS device
- Obstacle avoidance
Ultrasonic radar
- Direction control
Differential steering
- Communication loss protection
Automatically return to base when the communication is lost
Communication
- Communication mode
Wireless point-to-point
telecommunications
Network communication
- Communication distance
Network bridge: 3km
Network: unlimited
- Hardware configuration
Laptop/tablet computer/ ground stations(optional)
- Software function
USV management
Route management
Status display
Data management
Log function
- Remote control unit
Waterproof, dust proof and dropproof
Digital high-defifinition image transmission
Ultra-long link
Impressive battery edurance
Sounding performance
- Frequency
200 kHz
- Beam angle
5°
- Sounding range
0.4 -100 m
- Sounding accuracy
±1 cm ±0.1% D (D:depth of water)
- Resolution
0.01 m
- Data output
RS-232 (Depth data format can be customized)
- Pressure depth
≥50m
