Manhole tripod


In Stock (VAT not included)

Nr. 13610000

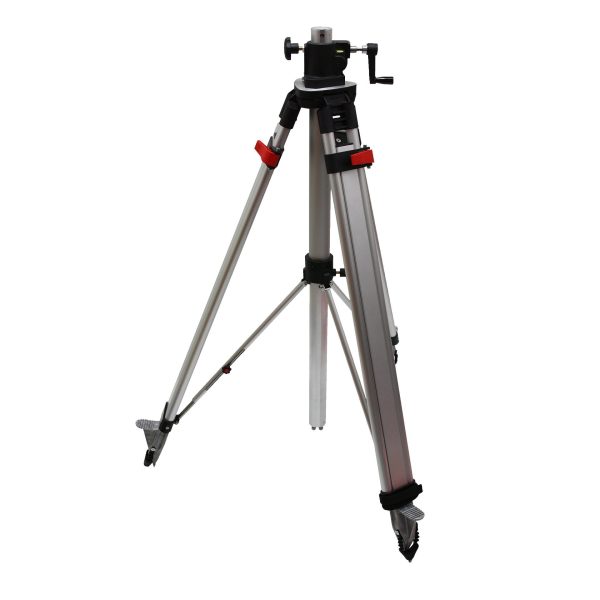

With the NESTLE manhole tripod you can introduce 3D laser scanner any deep into the shaft.
With the delivery of five extensions a depth of 4m from the stand
base is possible.

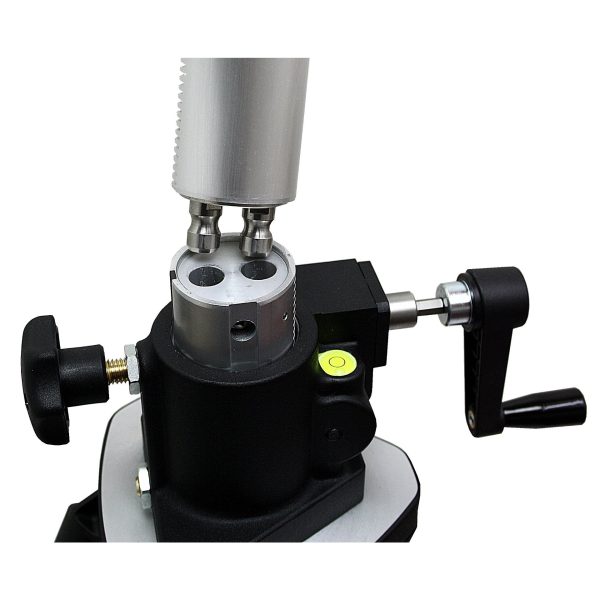

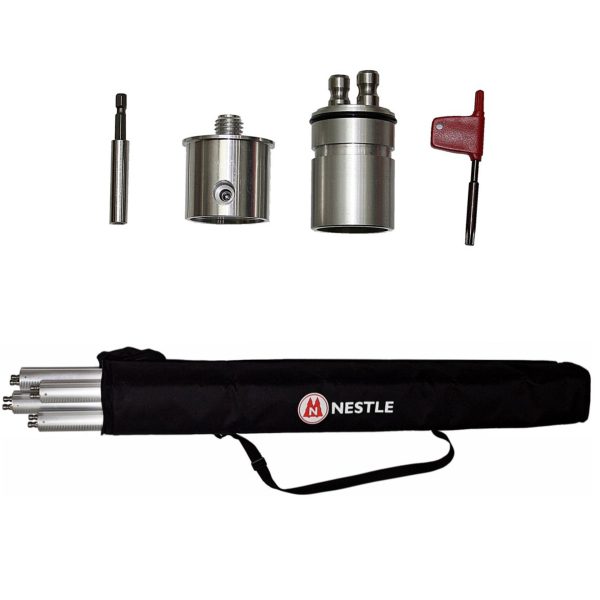

• To move the Instrument up or down the supplied crank or an optional cordless drill can be used. • A removable device used to facilitate installation of the scanner: Z + F IMAGER 5006, Z + F IMAGER 5010. Adaptations of other scanners available on request. • We assume the guarantee to 5m depth from the stand base. Scope of delivery: Manhole tripod with 1 extension 1m, plate 110mm, incl. rubber feet, 4 extensions à 1m in a bag, crank, adapter for cordless screwdriver, T-spanner, coupling for operation down, coupling for operation up.

Manhole tripod


  • Weight with 1 extension
  • 8,500g

  • Weight of 1 extension
  • 1,200g

  • Transport length
  • 130cm

  • Weight of attaching device
  • max. 20kg

  • Material
  • Aluminium
