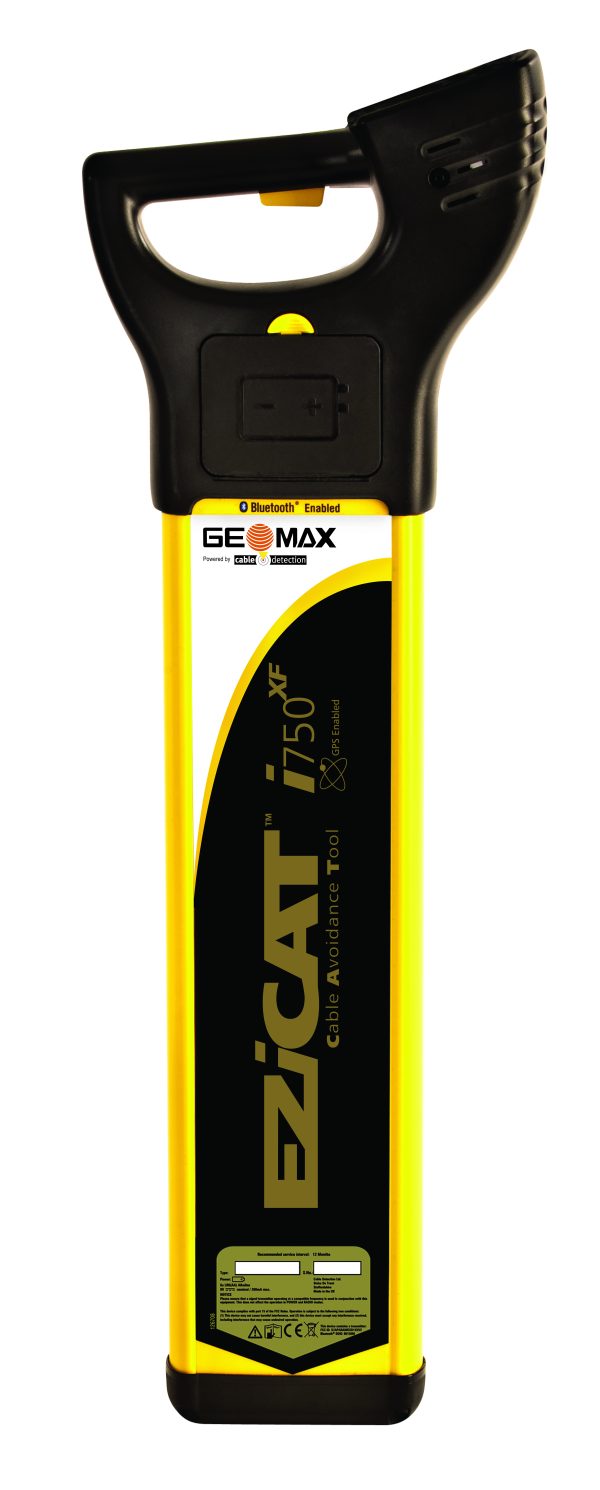

The EZiSYSTEM xf-Series utility locating and tracing equipment makes locating buried utilities easy and efficient. The xf-Series locators have additional low frequencies enabling you to locate and trace utilities over longer distances and in congested environments. With an EZiCAT locator there is no need to manually adjust the sensitivity, with the unique Automatic Pinpointing feature users can simply press the trigger and start locating.

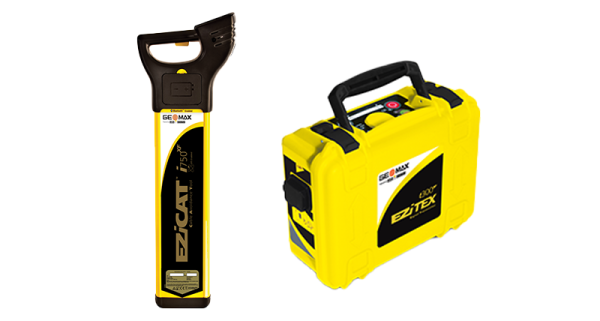

EZiSYSTEM xf-Series
SPECIFICATION
- Power
50Hz model or 60Hz model
- Radio
Power, Radio, 33kHz
- Auto
Power, Radio, 33kHz
- Transmitter mode
32.768 (33) kHz
8.192 (8) kHz
640Hz
512Hz
- Depth range
Line = 0.32ft to 9.84ft
Sonde = 0.32ft to 32.48ft
- Depth accuracy
10%
- Bluetooth
Class 2 Low energy
- GPS
Chipset (1): u-blox®GPS; Type: GPS L1C/A; Accuracy (2): Horizontal Position 2.5 m Autonomous, 2.0 m SBAS,CEP; Start time: Cold 45 s typical, Aided 7 s typical, Hot 1 s typical
- Memory capacity
64MB
- Battery
6 x AA Alkaline (IEC LR6) supplied
- Battery operating time
40 h intermittent use (at 68°F)
- Dimensions (HxWxD)
29.9 x 9.84 x 3.3in
- Weight with batteries
6lbs
