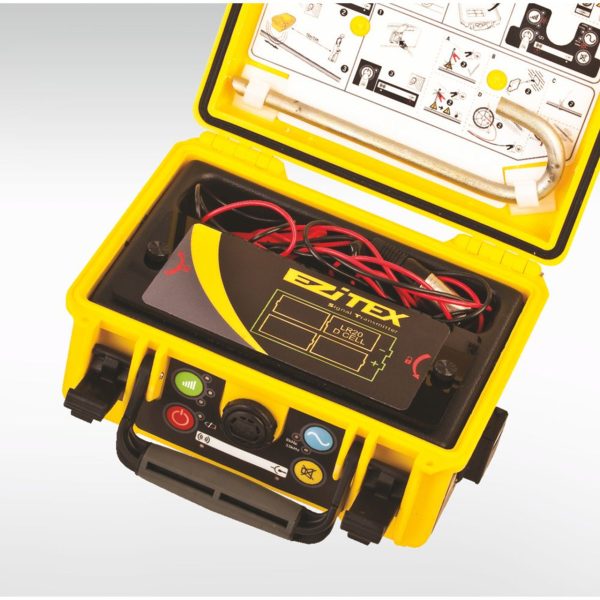

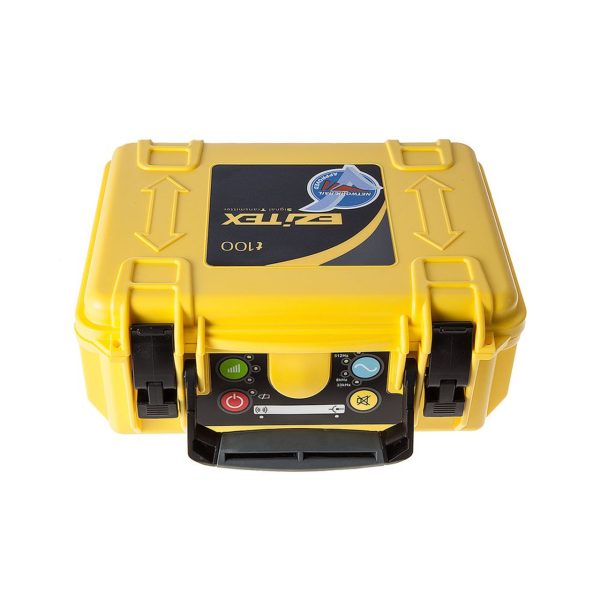

The EZiTEX t100 transmitter is compact, robust and easy to use. It is a dual frequency transmitter that has been designed in conjunction with the EZiCAT cable locators to easily and accurately avoid, trace or locate buried cables and pipes.
Ezitex t100
SPECIFICATION
- Frequency
8kHz, 33kHz
- Protection
IP67 Case lid closed
IP65 Case lid open
- Connection Power Output
Up to 1W max
- Induction Power Output
Up to 1W max
- Power Output Control
4 power level setting
- Batteries
4 x D alkaline (IEC LR20) supplied
- Battery operating time
30 h intermittent use (at 68°F)
- Weight & dimensions
5.5lbs - 5.24in (H) x 8.11in (D) x 9.84in (W)
