Micasense RedEdge-P

10,300.00

In Stock (VAT not included)
Highlights:

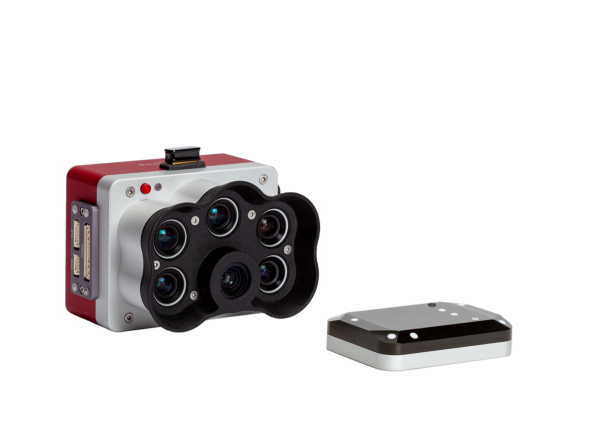

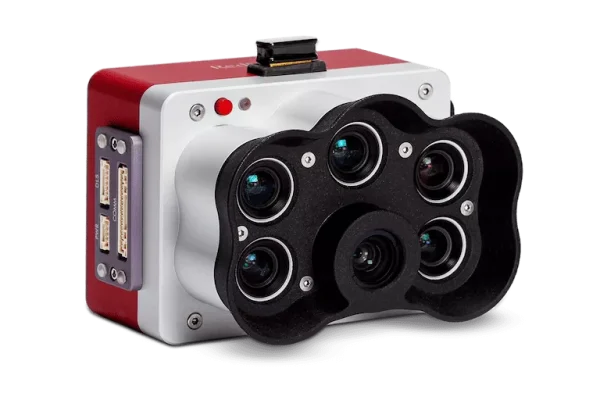

The MicaSense RedEdge Panchromatic (RE-P) is our premium multispectral camera, which combines a panchromatic sensor with five narrow bands to produce high-resolution multispectral and RGB from one flight for advanced analytics.

Description

The MicaSense RedEdge Panchromatic (RE-P) is our premium multispectral camera, which combines a panchromatic sensor with five narrow bands to produce high-resolution multispectral and RGB from one flight for advanced analytics.

Micasense RedEdge-P

SPECIFICATION

  • Technical
  • 5 multispectral sensors (R, G, B, RE, NIR, 5.5 mm lenses)

    10.3 mm lens

    panchromatic band nadir configuration

  • Payload weight (incl. mount)
  • 502 g (1.1 lb)

  • Lowest possible GSD
  • 2.0 cm/px

    0.78 in/px

  • Maximum coverage at lowest GSD*
  • Up to 90 ha (230 ac) at 60 m (190 ft) flight altitude

  • Maximum coverage at 120 m (400 ft)*
  • Up to 160 ha (395 ac) at 4 cm/px (1.57 in/px) GSD

  • Horizontal absolute accuracy (RMS) with PPK (w/o GCPs)
  • Down to 3 cm (1.18 in)

  • Vertical absolute accuracy (RMS) with PPK (w/o GCPs)
  • Down to 5cm (1.97 in)

  • Sensor type
  • 5 individual sensors Red, Green, Blue, Rededge, Near-infrared,

    panchromatic sensor

  • Sensor size x
  • 5.04 mm (0.19 in)

    8.5 mm (0.33 in)

  • Sensor size y
  • 3.78 mm (0.15 in)

    7.1 mm (0.28 in)

  • Mega pixel
  • 5 × 1.58

    5.1

  • Shutter type
  • Electronic shutter

  • Pixel in x
  • 1456

    2464

  • Pixel in y
  • 1088

    2056

  • Focal length of lens
  • 5.5 mm (0.22 in)

    10.3 mm (0.4 in)

  • Focal length (35mm equivalent)
  • 41 mm (1.61 in)

    38,6 mm (1.52 in)

  • Vertical field of view
  • 38.3°

    37.7º

  • Horizontal field of view
  • 49.6°

    44.5º

  • Minimal trigger time
  • 0.5 s

  • Minimal trigger distance
  • 8 m (26 ft)

GSD overview

  • GSD at 120 m flight altitude
  • 4 cm/px (3.2 in/px)

  • Flight altitude
  • 120 m (400 ft)

  • Maximum frontal overlap
  • 80%

  • Maximum coverage
  • 150 ha (380 ac)

  • Lowest possible GSD
  • 2 cm/px (0.78 in/px)

  • Flight altitude
  • 60 m (195 ft)

  • Maximum frontal overlap
  • 75%

  • Maximum coverage
  • 100 ha (300 ac)
