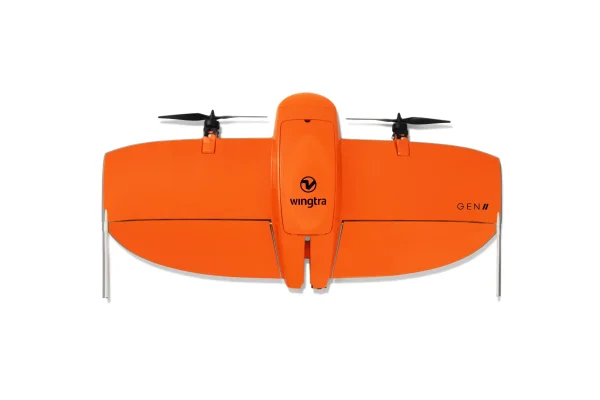

WingtraOne GEN II

18,900.00 ex. VAT

In Stock
Highlights:

WingtraOne GEN II features the most advanced reliability in surveying drones. This is the key to maximizing drone uptime, boosting your productivity and ensuring you deliver consistently.

The payload range now includes an oblique camera for the most detailed 3D reconstruction and a built-in PPK GNSS receiver for each camera, allowing you to take on a wider array of missions with centimeter-level accuracy.

Category:
Description

WingtraOne GEN II features the most advanced reliability in surveying drones. This is the key to maximizing drone uptime, boosting your productivity and ensuring you deliver consistently. The payload range now includes an oblique camera for the most detailed 3D reconstruction and a built-in PPK GNSS receiver for each camera, allowing you to take on a wider array of missions with centimeter-level accuracy.

WingtraOne GEN II

SPECIFICATION

  • Drone type
  • Tailsitter vertical take-off and landing (VTOL)

  • Maximum take-off weight
  • 4.5 kg (9.9 lb)

  • Weight (with batteries)
  • 3.7 kg (8.1 lb)

  • Maximum payload weight
  • 800 g (1.8 lb)

  • Wingspan
  • 125 cm (4.1 ft)

  • Dimensions of WingtraOne
  • 125 × 68 × 12 cm (without middle stand)

    4.1 × 2.2 × 0.4 ft (without middle stand)

  • Dimensions of Pilot Box
  • 57 × 37 × 20 cm, 8.6 kg

    1.8 × 1.2 × 1.0 ft, 19 lb

  • Battery capacity
  • Two 99 Wh batteries (required as a pair)

  • Battery type
  • Li-ion

    UN3481 compliant

    smart battery technology

  • Radio link
  • Bi-directional 10 km (6 mi) in direct line of sight,

    obstacles reduce the range

  • Onboard GPS
  • Redundant, using GPS (L1, L2), GLONASS (L1, L2), Galileo (L1) and BeiDou (L1)

    Frequencies range: 1227.6 MHz / 1242.9375-1251.6875 MHz / 1561,098 MHz / 1575,42 MHz / 1598.0625-1609.3125 MHz / 1602,00 MHz

  • Dimensions of travel hardcase (optional)
  • 137 x 67 x 23 cm (54 x 26 x 9 in)

  • Weight of travel hardcase including the drone
  • 18.6 kg (41 lb)

Sustained wind measured on ground

  • 0-5 m/s (0-11 mph)
  • Tippings rarely occur

  • 5-8 m/s (11-19 mph)
  • Tippings can occur

  • > 8 m/s (> 19 mph)
  • Not recommended to fly

Flight speed

  • Operational cruise speed
  • 16 m/s (35.8 mph)

  • Climb / sink cruise
  • 6 / 3 m/s (13.4 / 6.7 mph)

  • Climb / sink hover
  • 6 / 2.5 m/s (13.4 / 5.6 mph)

Wind resistance

  • Max sustained wind
  • 12 m/s (27 mph)

  • Max wind gusts
  • 18 m/s (40 mph)

  • Max sustained wind on the ground
  • 8/ms (19 mph)

Maximum flight time

  • Up to 59 min

Temperature

  • -10 to +40 °C (+14 to +104 °F)

Maximum take-off altitude above sea leve

  • 2500 m (8200 ft); with high-altitude propellers it is possible to take off from up to 4800 m (15,700 ft) and fly up to 5000 m (16,400 ft) AMSL

Weather

  • IP54, not recommended to fly in fog, rain and snow

Ground control points required

  • No (with PPK option); using 3 checkpoints to verify the accuracy is recommended

Auto-landing accuracy

  • < 2 m (< 7 ft)
