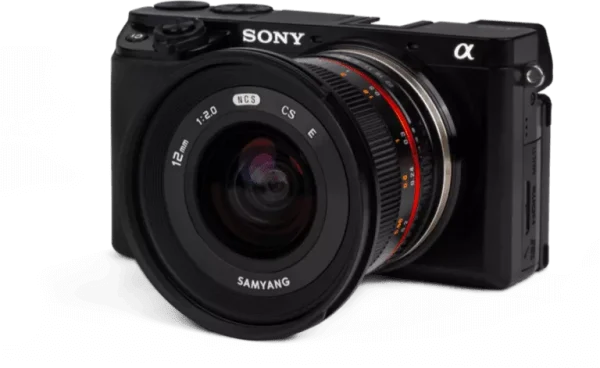

Oblique a6100

2,400.00

In Stock (VAT not included)
Highlights:

Optimized to map vertical structures, the Oblique Sony ɑ6100 allows you to generate high-resolution 3D meshes with centimeter-level absolute accuracy.

Category:
Description

Optimized to map vertical structures, the Oblique Sony ɑ6100 allows you to generate high-resolution 3D meshes with centimeter-level absolute accuracy.

Oblique a6100

SPECIFICATION

  • Technical
  • 24 MP, APS-C sensor

    12 mm lens

    low oblique configuration

  • Payload weight (incl. mount)
  • 730 g (1.61 lb)

  • Lowest possible GSD
  • 1.6 cm/px

    0.63 in/px

  • Maximum coverage at lowest GSD*
  • Up to 70 ha (180 ac) at 49 m (161 ft) flight altitude

  • Maximum coverage at 120 m (400 ft)*
  • Up to 180 ha (450 ac) at 3.9 cm (1.54 in) GSD

  • Horizontal absolute accuracy (RMS) with PPK (w/o GCPs)
  • Down to 2 cm (0.8 in)

  • Vertical absolute accuracy (RMS) with PPK (w/o GCPs)
  • Down to 4 cm (1.6 in)

  • Sensor type
  • APS-C

  • Sensor size x
  • 23.5 mm (0.93 in)

  • Sensor size y
  • 15.6 mm (0.61 in)

  • Mega pixel
  • 24.2

  • Shutter type
  • Focal plane

  • Pixel in x
  • 6000

  • Pixel in y
  • 4000

  • Focal length of lens
  • 12 mm (0.47 in)

  • Focal length (35mm equivalent)
  • 18 mm (0.71 in)

  • Front tilt angle (off-nadir)
  • 15°

  • Horizontal field of view
  • 90° (-45° ... 45°)

  • Vertical field of view
  • 66° (-18° ... 48°)

  • Minimal trigger time
  • 1.0 s

GSD overview

  • GSD at 120 m flight altitude
  • 3.9 cm/px (1.54 in/px)

  • Flight altitude
  • 120 m (400 ft)

  • Maximum frontal overlap
  • 90%

  • Maximum coverage
  • 180 ha (450 ac)

  • Lowest possible GSD
  • 1.6 cm/px (0.63 in/px)

  • Flight altitude
  • 49 m (160 ft)

  • Maximum frontal overlap
  • 75%

  • Maximum coverage
  • 70 ha (180 ac)

  • 2.0 cm/px GSD
  • 2 cm/px (0.79 in/px)

  • Flight altitude
  • 62 m (203 ft)

  • Maximum frontal overlap
  • 80%

  • Maximum coverage
  • 90 ha (230 ac)
