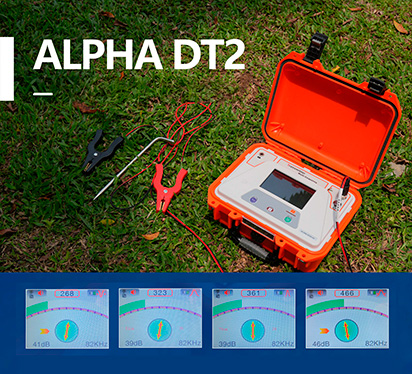

Alpha DT2

In Stock
Highlights:

The underground pipeline locator is the latest multifunctional equipment developed by AlphaGEO for detecting pipelines, pipes, cables, optical fibers, etc. It can accurately determine the position, path direction, and burial depth of underground pipelines. It can identify target cables even in complex cable networks and precisely locate cable grounding faults. As a comprehensive solution in the field of detection, it truly achieves multi-purpose functionality, significantly reducing usage costs.

Category: Brands:
Description

The design of the underground pipeline detector conforms to ergonomic principles. The device is lightweight, sturdy, durable, and highly resistant to harsh environments. It features a high-definition backlit color LCD screen in both Receiver and Transmitter, ensuring clear visibility under any weather or lighting conditions for all-day operation. The intelligent compass tracking and positioning function provides real-time visual display of the detected object's position, direction, and burial depth. With a wide frequency range, it meets the needs of various users and supports custom frequencies.

Alpha DT2

SPECIFICATION

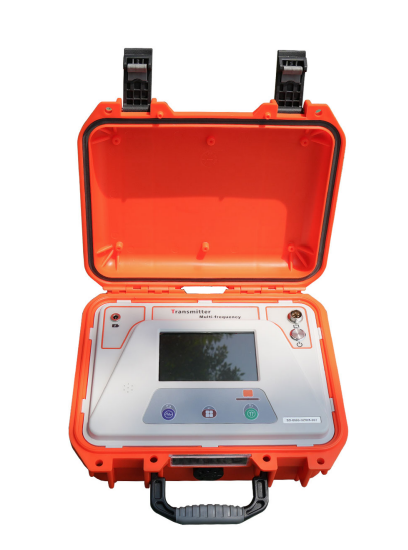

Transmitter

  • Display
  • High-definition backlit color LCD screen

  • Operating frequency
  • 512 Hz to 200 kHz

Short-circuit protection function

  • Matching load
  • Automatic matching

  • Maximum output power
  • 10 watts

  • Battery
  • Built-in rechargeable lithium battery, continuous operation for 10 hours after full charge

  • Waterproof/Dust proof
  • IP65

  • Dimensions
  • 345x266x120mm

  • Weight
  • 2.8 kg

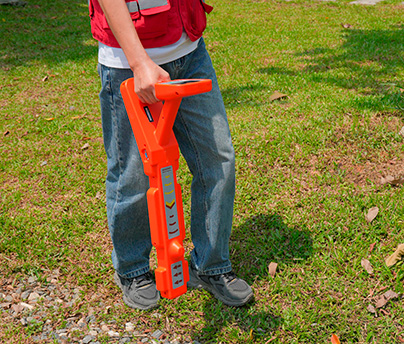

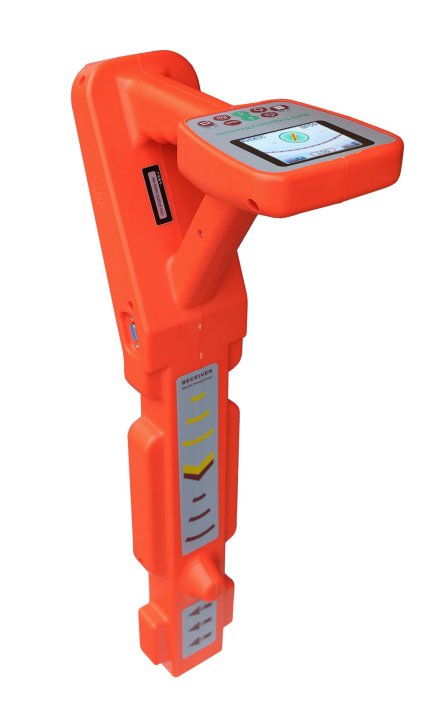

Receiver

  • Display
  • High-definition backlit color LCD screen

  • Guidance
  • Color intelligent compass tracking and positioning

  • Passive frequencies
  • 50/60Hz; Active frequency range: 50Hz to 200 kHz

Automatic identification of external accessories

  • Four working modes
  • Peak, valley, wide-peak, peak-distance arrow

  • Signal strength
  • Graphical qualitative display and numerical quantitative display, range 0-1000, indicating maximum signal strength

  • Dynamic gain
  • Range 0dB to 100dB

  • Detection depth
  • Maximum 20 meters

  • Audio indication
  • Real-time tone

  • Battery
  • Built-in rechargeable lithium battery, continuous operation for 10 hours after full charge

  • Operating temperature
  • -20°C to + 70°C

  • Waterproof/Dustproof
  • IP65

  • Dimensions
  • 668x110x(53-288)mm

  • Weight
  • 1.8 kg
