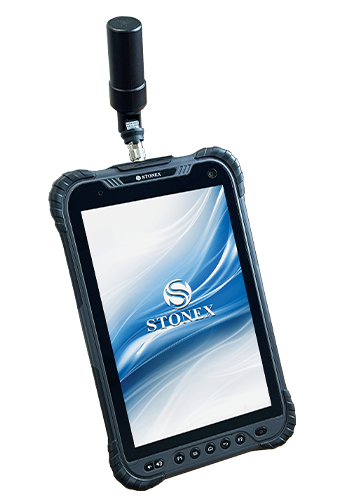

S80G RTK GNSS

3,700.00 ex. VAT

In Stock
Highlights:

The S80G is a GNSS system that offers a range of features and capabilities for efficient data and photo collection in the field. It is a multi-constellation system, meaning it can utilize signals from multiple satellite networks, including GPS, GLONASS, Galileo, and BeiDou. Furthermore, the S80G is a triple-frequency GNSS system, which means it can receive and process signals from L1, L2, and L3/L5 frequency bands.

Category:
Description

This triple-frequency capability enhances the system’s precision and robustness, particularly in areas with potential signal interference or obstructions. The GNSS board of the S80G is equipped with 1408 channels, allowing it to track multiple satellites simultaneously. The S80G offers RTK (Real-Time Kinematic) and raw data recording capabilities, enabling users to capture high-resolution data and imagery. The S80G system comes with an antenna that is directly connected to the tablet, providing an RTK precision of 2 cm. However, the system also supports the use of an external antenna SA85, which can further enhance the precision of the collected data, allowing users to achieve even greater accuracy in their field work, approximately < 1 cm. The S80G can operate in real-time mode, utilizing RTK corrections transmitted by a network of GNSS Permanent Stations.

S80G RTK GNSS

SPECIFICATION

  • Satellite signals tracked
  • GPS: L1 C/A, L1C, L2P, L2C, L5

    GLONASS: L1, L2

    BEIDOU: B1l, B2l, B3l, B1C, B2a, B2b

    GALILEO: E1, E5a, E5b,E6

    QZSS: L1, L2, L5

    IRNSS: L5

    SBAS

  • PPP
  • HAS, B2b PPP

  • Chanels
  • 1408

  • Position rate
  • 5Hz

  • Signal Reacquisition
  • <1s

  • RTK Initialization time
  • <10s

  • Hot start
  • <15 s

  • Initialization Reliability
  • >99.99%

Positioning

  • Static survey with external Antenna SA85
  • 1cm

  • RTK Network with external Antenna SA85
  • 1cm

  • RTK Network with standart Antenna
  • 2cm

  • PPP Accuracy
  • <20cm

  • SBAS Accuracy
  • <60cm

System

  • CPU
  • Qualcomm QCM4290

    Octa-core 2.0GHz

  • Operating System
  • Android 13.0

  • RAM
  • 6GB

  • FLASH
  • 128GB

DISPLAY

  • Screen Size
  • 8.0” HD

  • Resolution
  • 1280 x 800 pixels

  • Brightness
  • 800 nits

  • Touch Panel
  • Multi-touch, wet hands, gloves operable

CAMERA

  • Front
  • 8 MP

  • Rear
  • 16 MP

DATA COMMUNICATION

  • GSM
  • WCDMA: B1/B2/B5/B8

    TDD-LTE: B38/B39/B40/B41

    FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20/B25/B28(b)/B66

    Nano SIM card

  • Bluetooth
  • Bluetooth 5.1 BLE

  • Wi-Fi
  • Wi-Fi 2.4 GHz+5 GHz MIMO 1x1

  • NFC
  • Yes

SENSOR

  • GNSS
  • Qualcomm

  • Gyroscope
  • Yes

  • e-Compass
  • Yes

  • Accelerometer
  • Yes

  • Ambient light sensor
  • Yes

INTERFACE

  • TF Slot
  • MicroSD

  • USB
  • Type C (Charging, Data, USB2.0 OTG)

  • GSM
  • Nano SIM card

POWER SUPPLY

  • Battery
  • Lithium-ion 3.8V 8200mAh (removable)

  • Operating time
  • Up to 8 hours

  • Charging time
  • 5 hours

PHYSICAL SPECIFICATIONS

  • Dimensions
  • 249 x 146 x 28 mm

  • Weight
  • 700 g

  • Operating Temperature
  • -20°C to 60°C (-4°F to 140°F)

  • Storage Temperature
  • -40°C to 70°C (-40°F to 158°F)

  • Waterproof/Dustproof
  • IP67

  • Shock Resistance
  • Designed to endure a drop of 1.2 meters onto marble

  • MIL-STD
  • MIL-STD-810H

STANDARD ACCESSORIES

  • Charger & 4 kinds of adapter, Battery, Screen sticker
