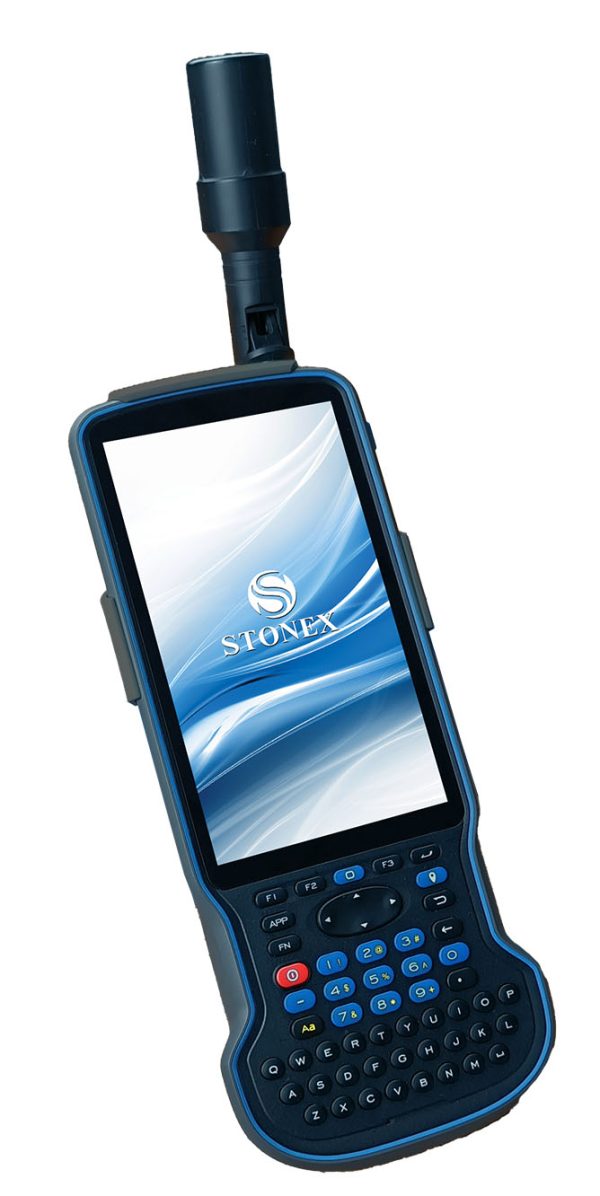

S55G RTK GNSS

In Stock
Highlights:

The S55G is an RTK GNSS receiver controller featuring three-frequency GNSS board with an impressive 1408 channels, supporting multiple satellite constellations: GPS, GLONASS, BEIDOU, GALILEO, QZSS, and IRNSS. It operates on the Android 12 system, providing a simple and intuitive interface.

Category:
Description

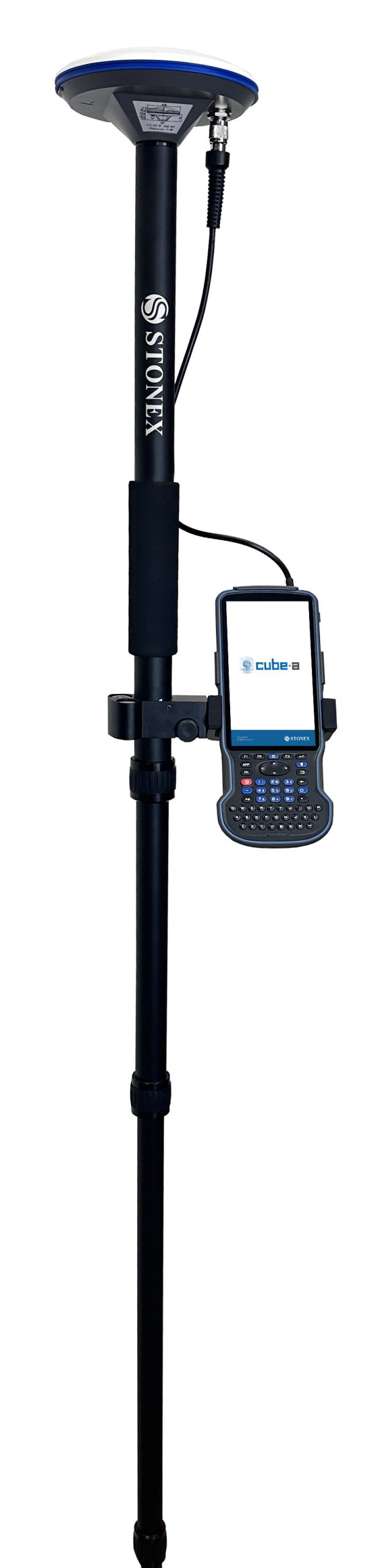

The controller is equipped with a remarkable 5.5" TFT display that boasts a resolution of 1920 x 1080 pixels and a brightness of 500 nits, along with a compact QWERTY keyboard. The S55G enables users to work in real-time with RTK corrections while simultaneously recording raw data for post-processing. It also supports the use of an external antenna SA85, which can further enhance the precision of the collected data, allowing users to achieve high accuracy in their field work, approximately < 1 cm.

S55G RTK GNSS

SPECIFICATION

  • Satellite signals tracked
  • GPS: L1 C/A, L1C, L2P, L2C, L5

    GLONASS: L1, L2

    BEIDOU: B1l, B2l, B3l, B1C, B2a, B2b

    GALILEO: E1, E5a, E5b,E6

    QZSS: L1, L2, L5

    IRNSS: L5

    SBAS

  • PPP
  • HAS, B2b PPP

  • Chanels
  • 1408

  • Position rate
  • 5Hz

  • Signal Reacquisition
  • <1s

  • RTK Initialization time
  • <10s

  • Hot start
  • <15 s

  • Initialization Reliability
  • >99.99%

Positioning

  • Static survey with external Antenna SA85
  • 1cm

  • RTK Network with external Antenna SA85
  • 1cm

  • RTK Network with standart Antenna
  • 2cm

  • PPP Accuracy
  • <20cm

  • SBAS Accuracy
  • <60cm

System

  • CPU
  • Qualcomm QCM4290

    Octa-core 2.0GHz

  • Operating System
  • Android 13.0

  • RAM
  • 6GB

  • FLASH
  • 128GB

DISPLAY

  • Screen Size
  • 5.5” TFT

  • Resolution
  • 1920 x 1080pixels

  • Brightness
  • 500 nits

  • Touch Panel
  • Multi-touch, wet hands, gloves operable

CAMERA

  • Rear
  • 13 MP

EXTERNAL RADIO (optional)

  • Model
  • SR02

  • Type
  • Tx-Rx-Transreciver (2 watt)

  • Frequency Range
  • 410-470MHz

  • Channel Spacing
  • 12.5 KHz / 25 KHz

  • Maximum range
  • 3-4 km in urban environment

    Up to 10 km with optimal conditions

DATA COMMUNICATION

  • GSM
  • WCDMA: B1/B2/B5/B8

    TDD-LTE: B38/B39/B40/B41

    FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20/B25/B28(b)/B66

    Nano SIM card

  • Bluetooth
  • Bluetooth 5.0

  • Wi-Fi
  • Wi-Fi 2.4 GHz+5 GHz

  • NFC
  • Yes

SENSOR

  • Gyroscope
  • Yes

  • e-Compass
  • Yes

  • Accelerometer
  • Yes

  • Ambient light sensor
  • Yes

  • Laser
  • Red point

INTERFACE

  • TF Slot
  • MicroSD

  • USB
  • Type C (Charging, Data, USB3.0 OTG)

  • GSM
  • Nano SIM card

POWER SUPPLY

  • Battery
  • 9000mAh

  • Operating time
  • Up to 8 hours

  • Charging time
  • 4 hours

PHYSICAL SPECIFICATIONS

  • Dimensions
  • 230 x 96 x 37 mm

  • Weight
  • 500 g

  • Operating Temperature
  • -20°C to 65°C (-4°F to 149°F)

  • Storage Temperature
  • -30°C to 70°C (-22°F to 158°F)

  • Waterproof/Dustproof
  • IP67

  • Shock Resistance
  • Designed to endure a drop of 1.2 meters onto marble
