The S55 features a 5.5-inch display with a resolution of 1920 x 1080 pixels and a brightness of 500 nits, providing maximum visibility and comfort for the operator. The full keyboard makes data entry quick and easy; it features up to 4 customizable function keys and a dedicated button for point surveying in the field. With a 9000mAh battery, the S55 provides up to 18 hours of continuous use, making it the perfect tool for long surveying sessions.

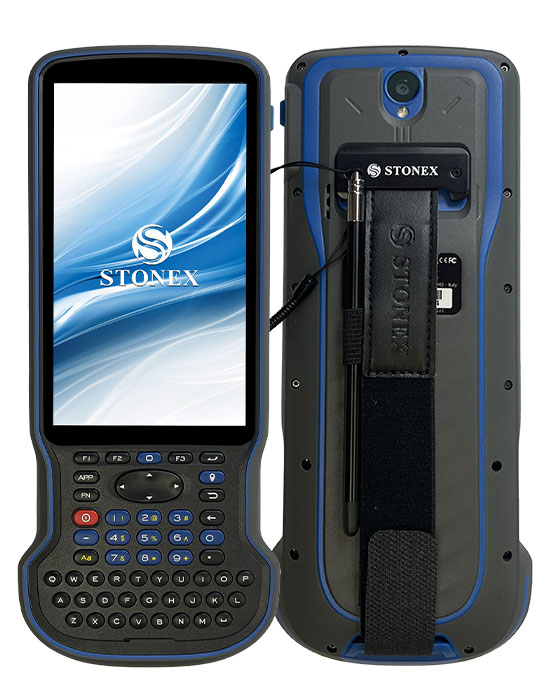

S55 Controller
SPECIFICATION
- CPU
Qualcomm SM6115 2.0 GHz
- Operating System
Android 12
- RAM
4 GB
- FLASH
64 GB
- Keyboard
QWERTY 43 keys
DISPLAY
- Screen Size
5.5"
- Resolution
1920 x 1080 px
- Brightness
500 Nits
- Touch Panel
Capacitive
CAMERA
- Rear
13 MP
DATA COMMUNICATION
- GSM
GSM: 850/900/1800/1900 WCDMA: B1/B2/B4/B5/B8
LTE-TDD: B34/B38/B39/B40/B41
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/
B12/B13/B17/B20/B25/B26/B28
- Bluetooth
5.0
- Wi-Fi
802.11a/b/g/n/ac
SENSOR
- GNSS
Qualcomm GPS, GLONASS, BDS, Galileo
- Gyroscope
Yes
- Compass
Yes
- Accelerometer
Yes
- Ambient light sensor
Yes
INTERFACE
- TF Slot
Support MicroSD
- USB
Type C
- GSM
Dual sim
POWER SUPPLY
- Battery
9000 mAh
- Operating time
Up to 18 hours
- Charging time
4 hours
PHYSICAL SPECIFICATIONS
- Dimensions
228 mm x 96 mm x 21 mm
- Weight
420 g
- Operating Temperature
-20°C to 65°C (-4°F to 149°F)
- Storage Temperature
-30°C to 70°C (-22°F to 158°F)
- Waterproof/Dustproof
IP67
- Shock Resistance
Designed to endure to a 1.2 m on marble
