The Zenmuse P1 integrates a full-frame sensor with interchangeable fixed-focus lenses on a 3-axis stabilized gimbal. Designed for photogrammetry flight missions, it takes efficiency and accuracy to a whole new level

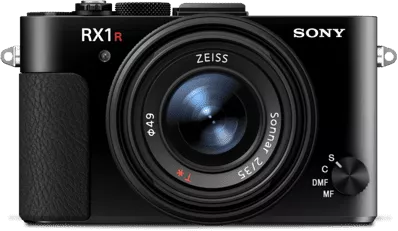

RX1R II
€7,600.00 ex. VAT

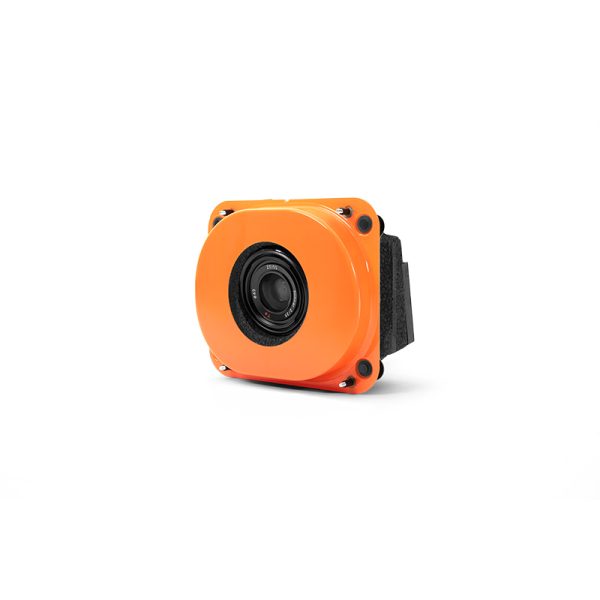

For high accuracy surveys, Sony’s 42 MP full-frame sensor guarantees superior image resolution for a drone camera, while the low distortion lens ensures best reconstruction results.
Related products

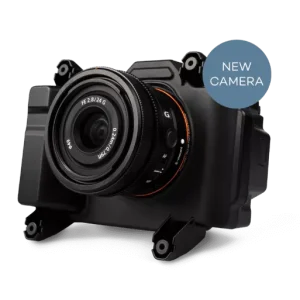

RGB61
Powered by the Sony A7R Mark IV, RGB61 guarantees maximum coverage, superior accuracy and a lighter data load, while offering in-app light settings control.
Oblique a6100
Optimized to map vertical structures, the Oblique Sony ɑ6100 allows you to generate high-resolution 3D meshes with centimeter-level absolute accuracy.
a6100
The a6100 camera from Sony offers the best combination of accuracy and coverage for an affordable price.
Zenmuse P1
For high accuracy surveys, Sony’s 42 MP full-frame sensor guarantees superior image resolution for a drone camera, while the low distortion lens ensures best reconstruction results.
RX1R II
SPECIFICATION
- Technical
42 MP, full-frame sensor
35 mm lens
nadir configuration
- Payload weight (incl. mount)
590 g (1.27 lb)
- Lowest possible GSD
0.7 cm/px
0.28 in/px
- Maximum coverage at lowest GSD*
Up to 90 ha (230 ac) at 55 m (179 ft) flightaltitude
- Maximum coverage at 120 m (400 ft)*
Up to 210 ha (550 ac) at 1.6 cm (0.63 in) GSD
- Horizontal absolute accuracy (RMS) with PPK (w/o GCPs)
Down to 1 cm (0.4 in)
- Vertical absolute accuracy (RMS) with PPK (w/o GCPs)
Down to 3 cm (1.2 in)
- Sensor type
Full frame
- Sensor size x
35 mm (1.38 in)
- Sensor size y
23.3 mm (0.92 in)
- Mega pixel
42.4
- Shutter type
Leaf shutter
- Pixel in x
7952
- Pixel in y
5304
- Focal length of lens
32.8 mm (1.29 in)
- Focal length (35mm equivalent)
32.8 mm (1.29 in)
- Vertical field of view
39.2°
- Horizontal field of view
56.2°
- Minimal trigger time
0.6 s
- Minimal trigger distance
9.6 m (31 ft)
GSD overview
- GSD at 120 m flight altitude
1.6 cm/px (0.63 in/px)
- Flight altitude
120 m (400 ft)
- Maximum frontal overlap
89%
- Maximum coverage
220 ha (550 ac)
- Lowest possible GSD
0.7 cm/px (0.28 in/px)
- Flight altitude
53 m (170 ft)
- Maximum frontal overlap
74%
- Maximum coverage
90 ha (230 ac)
- 2.0 cm/px GSD
2 cm/px (0.79 in/px)
- Flight altitude
155 m (510 ft) 1
- Maximum frontal overlap
94%
- Maximum coverage
245 (605 ac)
