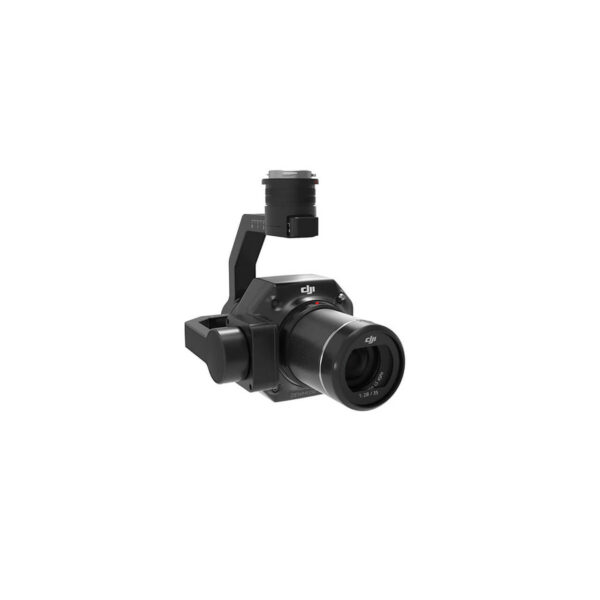

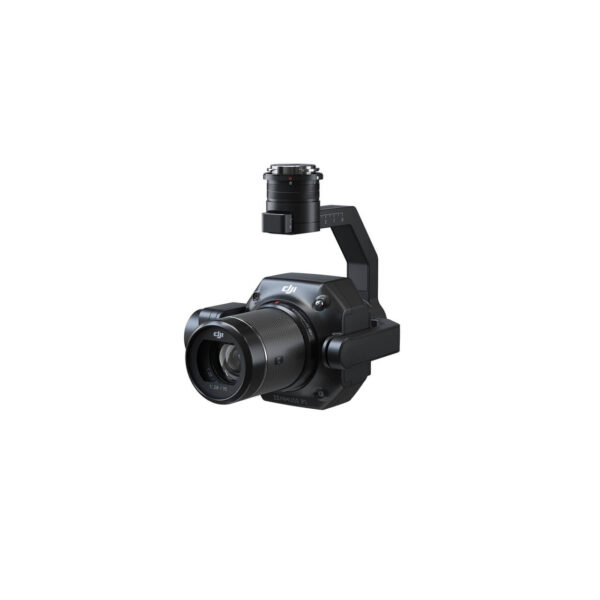

Zenmuse P1

SPECIFICATION

• Dimensions

• 198×166×129 mm

• Weight

• Approx. 800 g

• Power

• 20W

• IP Rating

• IP4X

• Supported Aircraft

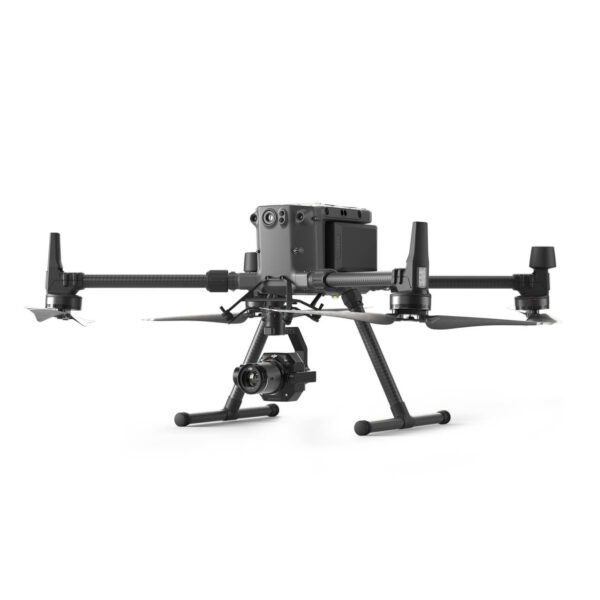

• Matrice 350 RTK

• Operating Temperature Range

• -20° to 50° C (-4° to 122° F)

• Storage Temperature Range

• -20° to 60° C (-4° to 140° F)

• Absolute Accuracy

• Horizontal: 3 cm, Vertical: 5 cm *

Camera

• Sensor

• Sensor size (Still): 35.9×24 mm (Full frame)

  Sensor size (Max video recording area): 34×19 mm

  Effective Pixels: 45MP

  Pixel size: 4.4 μm

• Supported Lenses

• DJI DL 50mm F2.8 LS ASPH (with lens hood and balancing ring/filter), FOV 46.8°

  DJI DL 35mm F2.8 LS ASPH (with lens hood and balancing ring/filter), FOV 63.5°

  DJI DL 24mm F2.8 LS ASPH (with lens hood and balancing ring/filter), FOV 84°

• Supported SD Cards

• SD: UHS-I rating or above; Max capacity: 512 GB

• Storage Files

• Photo / GNSS Raw Observation Data/ Image Log File

• Photo Size

• 3:2 (8192×5460)

• Operation Modes

• Photo, Video, Playback

• Minimum photo interval

• 0.7 s

• Shutter Speed

• Mechanical Shutter Speed: 1/2000*-1 s

  Electronic Shutter Speed: 1/8000-1 s

  *Aperature value no larger than f/5.6

• Aperture Range

• f/2.8-f/16

• ISO Range

• Photo: 100-25600

  Video: 100-25600

Gimbal

• Stabilized System

• 3-axis (tilt, roll, pan)

• Angular Vibration Range

• ±0.01°

• Mount

• Detachable DJI SKYPORT

• Mechanical Range

• Tilt: -130° to +40°;

  Roll: -55° to +55°;

  Pan: ±320°
