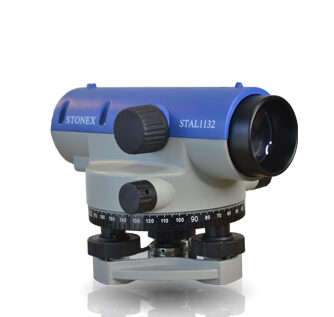

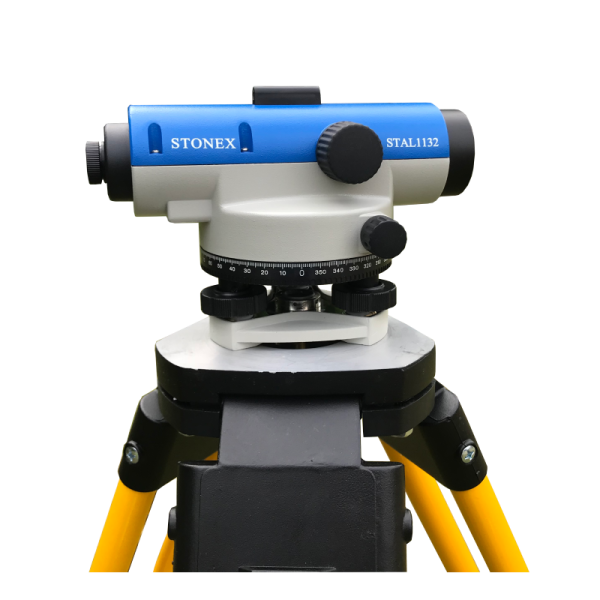

STAL 1000/1100 Series autolevels are immediate to set up and use. Accuracy up to 1 mm/Km (double run leveling) makes STAL 1032 an high accuracy autolevel, even for monitoring and engineering works. Horizontal knobs with an unlimited range ensure precise pointing while the circle, graduated in DEG or GON, gives angular measurements. The new redesigned optic is so bright that let you use the new STAL autolevels even in low-light conditions, thanks to the wide objective aperture (40 mm). STAL 1132 is available with 32x telescope, and give an accuracy of 1.5 mm/Km.
T1000 / T1100
SPECIFICATION
- Standard deviation per Km (double run leveling)
1.0 mm
TELESCOPE
- Image
Erect
- Resolving power
3.98"
- Magnification
32x
- Objective aperture
40 mm
- Field of view
1°20'
- Minimum focusing distance
0.75 m
- Stadia multiplication constant
100
- Stadia addition constant
0
- Circular level accuracy
8/2 mm
- Hor. circle graduation
1° (DEG model)
1 Gon (GON model)
COMPENSATOR
- Compensator
V Hanging wire/Air damping
- Compensator range
+15'
- Setting accuracy
±0.3"
- Thread
5/8"
PHYSICAL SPECIFICATIONS
- Net Weight
1.45 Kg (with box and accessories 2.5 Kg)
- Waterproof/Dustproof
IP54
