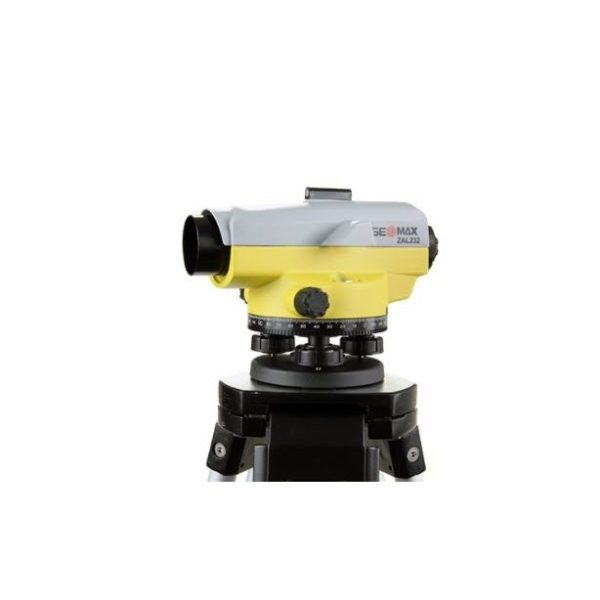

The GeoMax ZAL100 automatic level series are dependable, durable and economic tools designed for your daily levelling tasks in the construction site. With three different types of magnification, a new solid-built design and IP54 protection, with a full range of accessories and services, the GeoMax automatic levels provide great quality at affordable value.
ZAL100
SPECIFICATION
ACCURACY
- ZAL120
2.5 mm
TELESCOPE
- Image
Erect
- Magnification
20 x
- Field of view
< 2.1 m at 100 m
- Shortest target distance from instrument axis
< 1.0 m
ACCURACY
- ZAL124
2.0 mm
TELESCOPE
- Image
Erect
- Magnification
24 x
- Field of view
< 2.1 m at 100 m
- Shortest target distance from instrument axis
< 1.0 m
ACCURACY
- ZAL132
2.0 mm
TELESCOPE
- Image
Erect
- Magnification
32 x
- Field of view
< 2.1 m at 100 m
- Shortest target distance from instrument axis
< 1.0 m
COMPENSATOR
- Working range
± 15’
- Setting accuracy
0.5’’
DISTANCE MEASUREMENT
- Multiplication factor
100
- Additive constant
0
CIRCULAR LEVEL
- Sensitivity
8’/2 mm
CIRCLE
- Graduation
360°
- Graduation interval
1°
ADAPTATION
- Central fixing screw
5/8”
ENVIRONMENTAL
- Operating temperature
-20°C to +40°C (-4°F to +102°F)
- Protection
IP54
