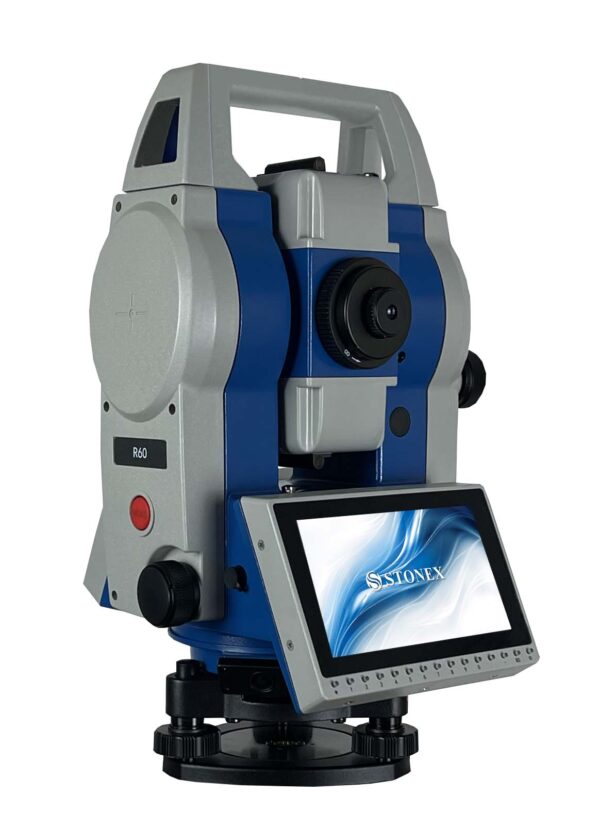

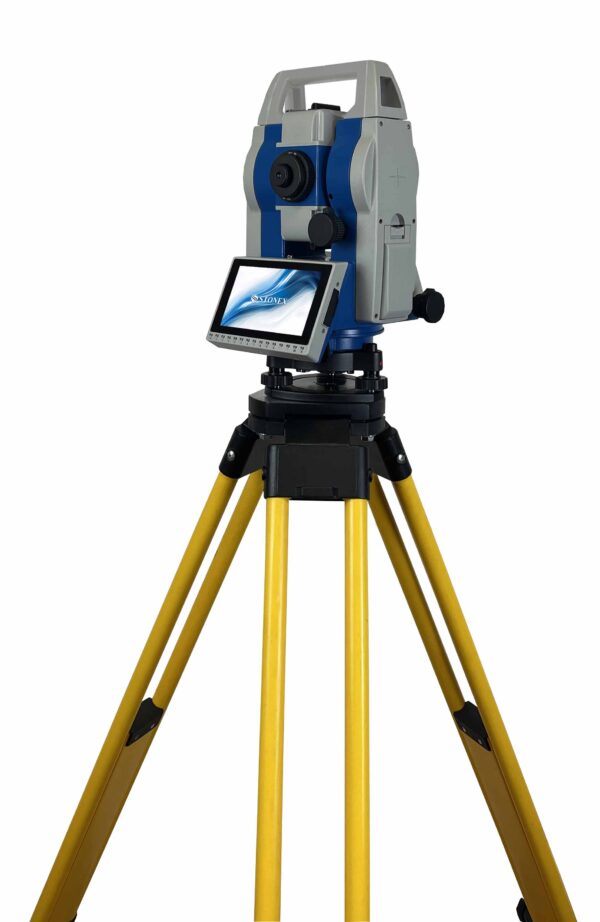

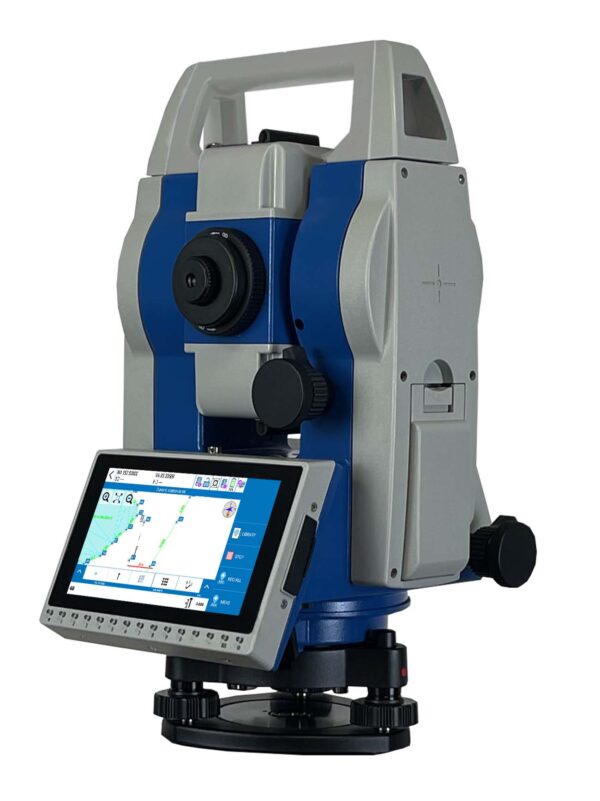

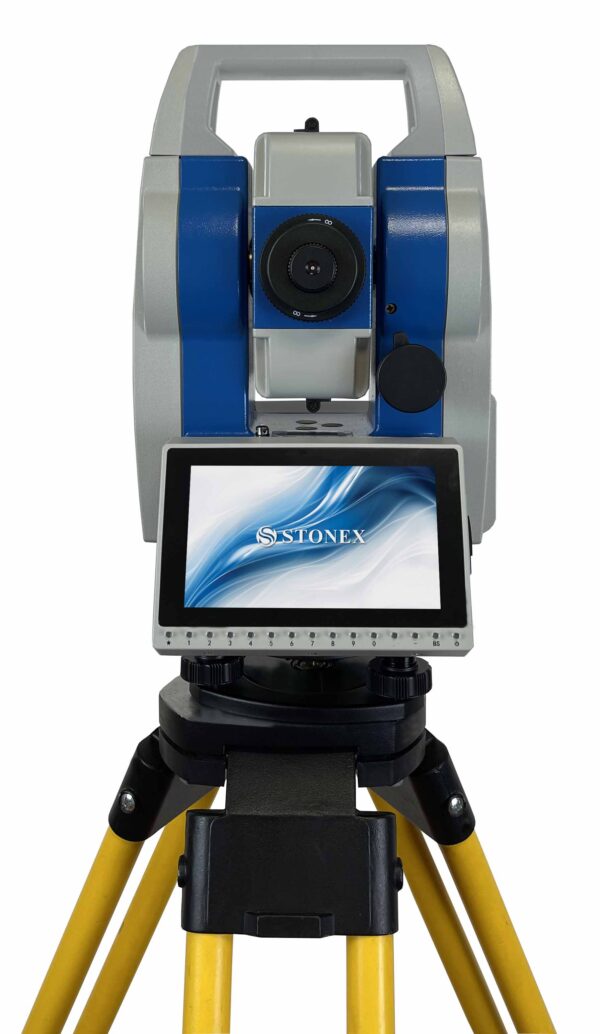

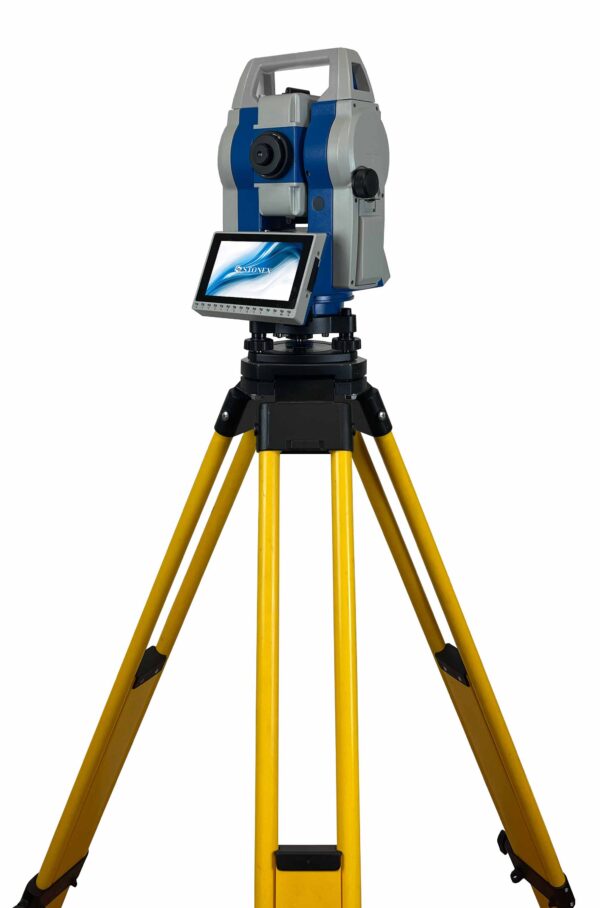

The R60 is a device with a 5.5-inch touch screen and the Android operating system, which provides users with a smartphone-like experience in terms of ease of use and familiarity. With the Android OS, operators can easily access a wide range of features and functions, making their work more efficient and productive. The R60 is available in two versions, one with an accuracy of 2″ and endless drives, and the other with an accuracy of 1″ and lock drives. With a prism, the instrument has an accuracy of 2 mm + 2 ppm, and it can measure reflectorless up to a range of 1000 m.
R60
SPECIFICATION
- Accuracy
1”
2”
- Reading System
Absolute encoder
- Angle Units
DEG 360°
GON 400
MIL 6.400
- Display Resolution
0.1〞
0.00002g
0.0005 mil
TELESCOPE
- Magnification / Field of view
30x / 1°30’
- Tube Length
156 mm
- Minimum Focus Distance
1.0 m (3.3 ft)
- Reticle Illumination
10 brightness levels adjustable
- Effective Aperture
Ø 45 mm
- Laser Pointer
Red light, coaxial
TILT SENSOR
- Type
Dual axis
- Compensation Range/Accuracy
≥3.0′
DISTANCE MEASUREMENT RANGE
- Prism Mode
5.000 m
- Reflective Sheet (6 cm x 6 cm)3
800 m
- Reflectorless
1000 m
DISTANCE MEASUREMENT ACCURACY
- Prism Mode
2 mm + 2 ppm
- Reflective Sheet (6 cm x 6 cm)
3 mm + 2 ppm
- Reflectorless
3 mm + 2 ppm
MEASUREMENT TIME
- Prism (Track/Fast/Standard)
0.4 / 0.6 / 1.0 sec
- Reflectorless
1.5-5 sec
DISTANCE MEASUREMENT
- Distance Units
m
US ft
INT ft
- Display Resolution
0.0001 m
0.001 m
0.01 ft
0.001 ft
LASER PLUMMET
- Laser Type
635nm semiconductor laser
- Accuracy
±1.0 mm @ 1.5 m
- Spot
2.5 mm @ 1.5 m
LEVEL VIAL SENSITIVITY
- Plate Level
30“/ 2 mm
- Circular Level
8‘/ 2 mm
ENVIRONMENTAL CONDITIONS
- Operating Temperature
-20°C to +50°C (-4°F to +122°F)
- Storage Temperature
-40°C to +70°C (-40°F to +158°F)
- Waterproof/Dustproof
IP55
PHYSICAL SPECIFICATION
- Dimensions
358 x 211 x 220 mm
- Weight Including Battery and Tribrach
6.5 Kg
POWER
- Battery Voltage/Capacity/Type
7.2Vdc / 5200mAh /Li-ion
- Batteries Number
2
- Operating Time
Up to 8 hours (with one battery)
- Battery Charger
AC 100 - 240V, charging time 3h
OTHER SPECIFICATIONS
- CPU
CORTEX-A55 Quad-Core
- Display
5.5” color touch, 720 x 1280 px
- OS
Android 11
- Memory
4GB+32GB
- Interface
USB type-A
USB type-C
RS232
Bluetooth
Wi-Fi
- Guide Light
Yes
- Sensors
Temperature / Pressure
ONBOARD FIELD APPLICATION PROGRAMS
- Cube-a TS-GPS, R60 Manager
