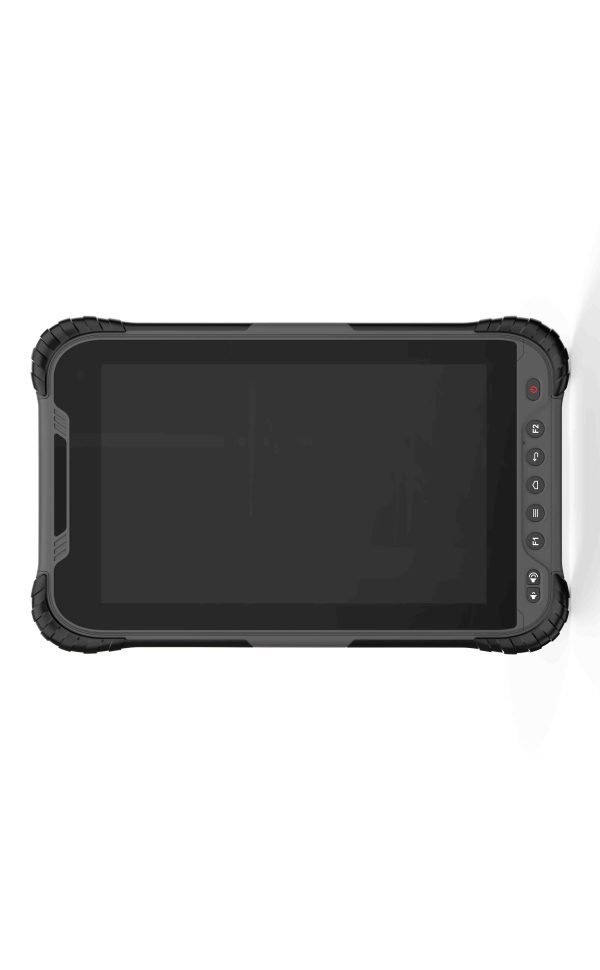

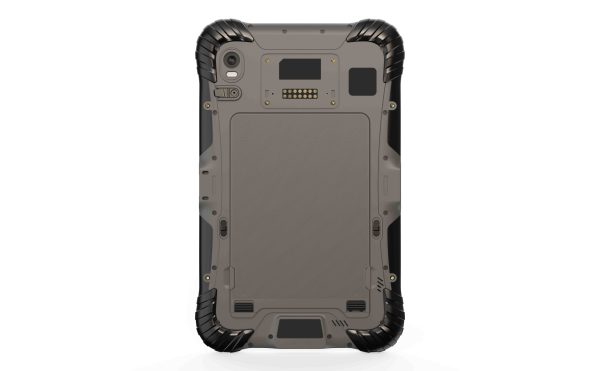

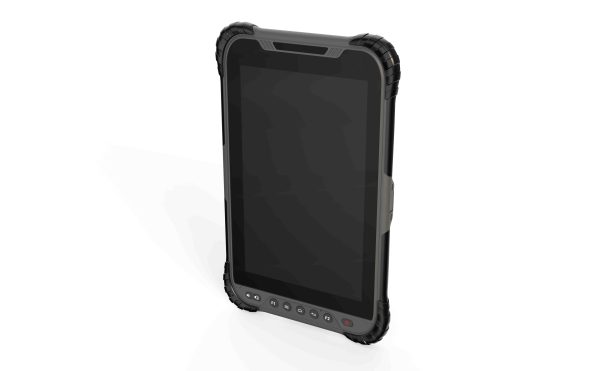

The GeoMax Zenius800 field controller uses the latest technology to achieve the high accuracy results and maximum efficiency required for on-site success. Uploading large BIM and CAD files is quick and easy. The high-performance octa-core processor ensures the data appears on the tablet screen in seconds. A clear 8” display makes working with design and 3D files simple and convenient. With an IP67 rating the Zenius800 operates reliably despite adverse environmental conditions. The water repellant touchscreen is unaffected by water or dust, making sure it works when you do.
Zenius800
SPECIFICATION
- Display
8” Sunlight readable HD display with 1280 x 800 resolution and protected by Corning® Gorilla® Glass
- Keypad
8 Keys with customizable function keys
- Operating System
Android 8.0 Oreo
OFFICE / CLOUD COMMUNICATION
- Wi-Fi
802.11 a/b/g/n/ac
- Cellular
4G LTE cellular modem
- Network
TD-SCDMA: B34/B39
WCDMA:B1/B2/B5/B8
CDMA/EVDO: BC0
LTE-TDD:B38/B39/B40/B41
LTE-FDD: B1/B2/B3/B4/
- Quad-Band GSM
850/900/1800/1900 MHz
- USB
High speed USB Type-C OTG port
STORAGE
- Internal
4GB RAM, 32GB Flash
- MicroSD
SDHC supported Micro SD card slot
- USB OTG
Mass-Storage device support
SYSTEM
- Processor
Qualcomm® SnapdragonTM 626
incorporating 8 Cortex-A53
cores up to 2.2 GHz each
- Battery power
8200 mAh 3.8 V Lithium-Ion battery (31.16Wh)
- Operating time
Up to 15 hours
INSTRUMENT COMMUNICATION
- Bluetooth®
Bluetooth 4.1
DOCUMENTATION
- Front Camera
5 MegaPixel fixed focus
- Rear Camera
13 MegaPixel with auto-focus.
- NFC
13.56 MHz with a 0 to 3cm reading distance
NAVIGATION
- GNSS Solutions
Multi-constellation; single frequency
GPS, GLONASS, Galileo, BeiDou
PHYSICAL
- Dimensions
242*152*17.8 mm
- Weight
630 g (Including Battery)
- Operating temp.
-20°C to +60°C
- Protection class
IP67 dust-tight and withstands temporarily immersion under water.
- Humidity
5 to 95% non-condensing
- Vibration
Method 514.6-I
- Shock
MIL-STD-810G, Method 516.6
