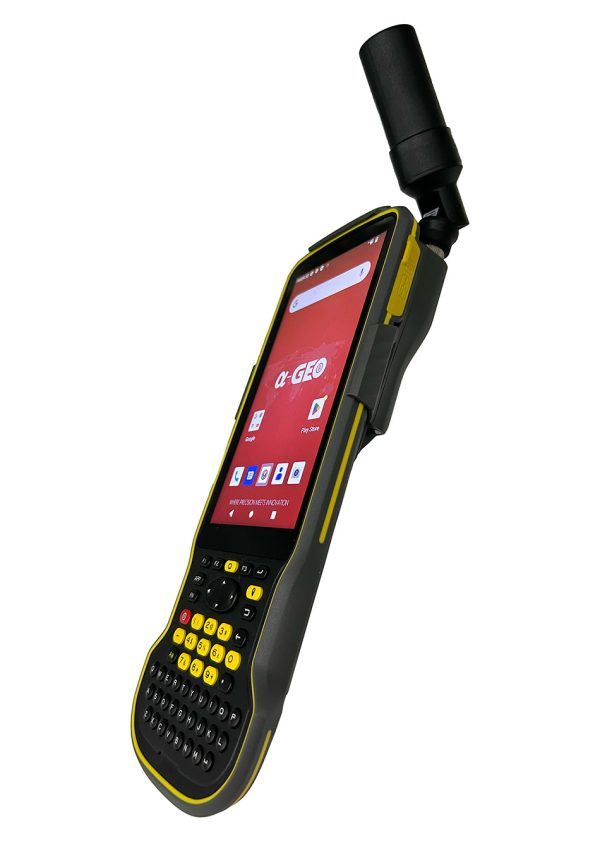

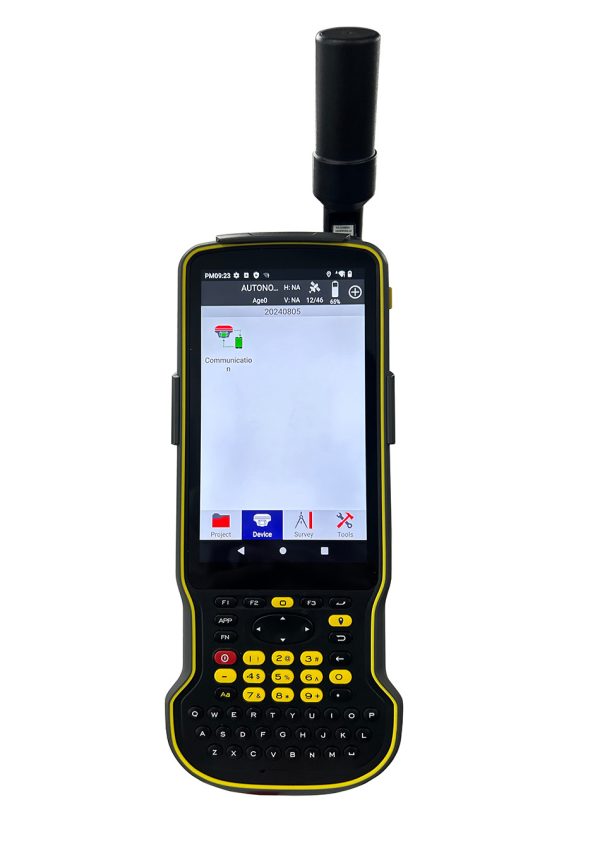

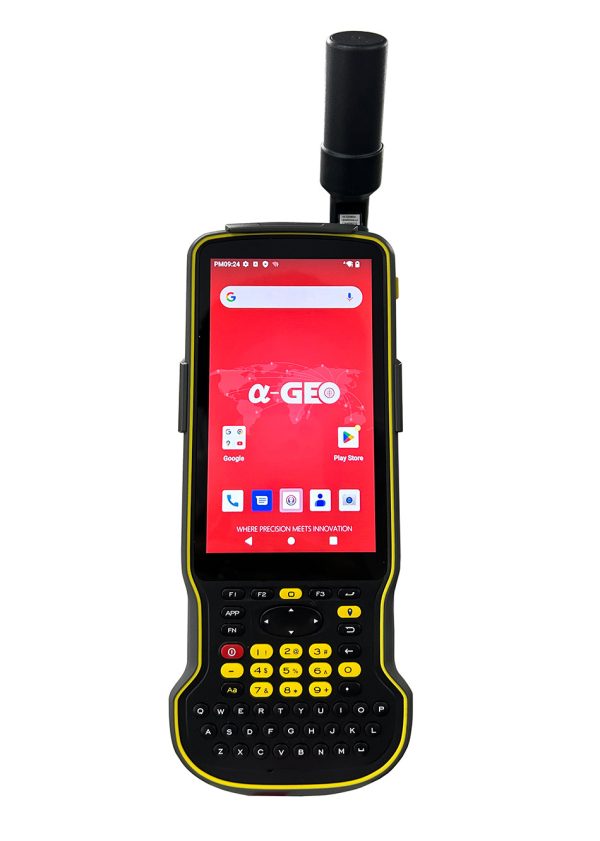

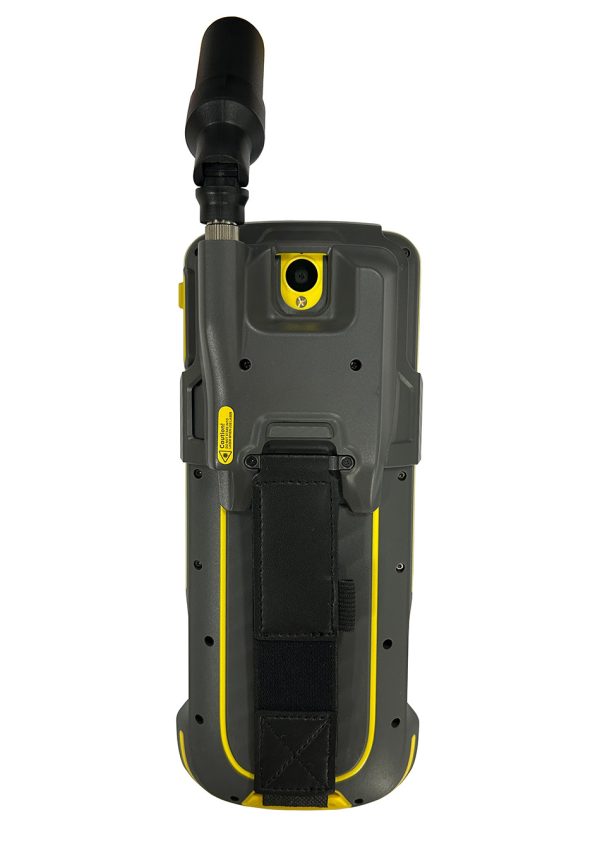

The S60III pro RTK handheld terminal is the ultimate solution for enhancing efficiency and productivity in mobile field operations. With centimeter to decimeter-level positioning accuracy, it is an extremely portable, durable, and versatile device, ideal for precision GIS data collection, power line inspections, construction site development, environmental research, landscaping, and various other applications.. Equipped with a 5.5-inch sunlight-readable display, users can easily view GIS data tables, complex vector and raster maps, and high-resolution images even in bright sunlight and high-light conditions. Its industrial design, compliant with the IP68 standard, ensures reliable performance in extreme and challenging environments, making it the preferred choice for field professionals, particularly those with demanding equipment requirements. The S60III pro integrates precision GNSS positioning technology and long-range RFID technology, empowering efficient data collection for both individual operators and large field teams.
S60III Pro
SPECIFICATION
- CPU
Qualcomm SDM 662 octa-core 2.0 GHz
- OS
Android 12 GMS support
- RAM
4GB SDRAM
- ROM
64GB
Physical parameters
- Size
228mmx96mmx21 mm
- Weight
420 g (14.42 oz) with battery
- Dust and water proof
IP68
- Humidity
5%-95% (non-condensing)
- Shock and vibration
1.2 m (4 ft) fall on concrete
- Display
5S"IPS LTPS LCD capacitive multi-touch 1920 x 1080 pixels HD+ 401 ppi Brightness 500 nit
- Keypad
QWERTKEY
- Camera
13 MP with auto-focus and flash
Environment
- Operating:
-20°C to +65 °C (-4°F to+ 149°F)
- Storage:
-30°C to +70°C (-22°F to+ 158°F)
GNSS performance
- Signals tracking
GPS: L1C/A, L2C, L2P, L5
GLONASS: L1, L2
BDS: B1, B1C, B2, B2a, B2b, B3
GALILEO: E1, E5a, E5b, E6
QZSS: L1, L2, L5, L6
SBAS: WAAS, EGNOS, MSAS, GAGAN, SDCM
- RTK accuracy
2cm HRMS
- SBAS accuracy
< 1m HRMS
- L-band
PPP, E6 HAS supports
Communications
- SIM Card Type
Nano-SIM card
- Network modem
GSM: 850/900/1800/1900
WCDMA:B 1 /B2/B4/B5/B8
LTE-TDD: B34/B38/B39/B40/B41
LTE-FDD:B 1 /B2/ B3/ B4/B5/B7 /B8/B 12/ B13/B17/B20/B25/B26/ B28
- Wi-Fi
802.11 a/b/g/n/ac access point mode (2.4 G/5G)
- Bluetooth0
V5.0
- USB
Type C, OTG supported
- NFC
Support
Electrical
- Li-ion battery capacity
9000 mAh
- Operating time
22 h
- Charging time
4h(typical)
Sensors and Multimedia
13 MP rear camera with auto-focus and flash GNSS (BDS, GPS, GLONASS)
A-GPS support
G-sensor
Gyroscope
E-compass
Light sensor
Speaker
Microphone
Standard Accessories
A/C charger
USB cable
Stylus
Handstrap
Certifications
- CE, FCC
