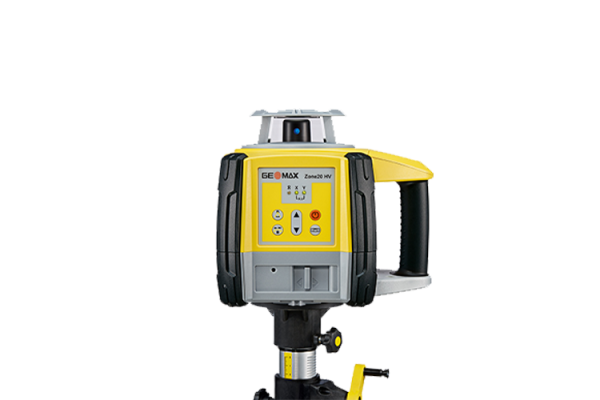

The multipurpose Zone20 HV offers the Zone20 H basic specifications, plus the capability of vertical leveling and aligning. It includes a long-range remote to adjust and align easily on any job site. To support the toughest working conditions, the rotating head is fully enclosed and the laser complies with IP67 class, making it the perfect multipurpose laser for any professional.
Zone20HV
Specification
- Description
Self-leveling horizontal, vertical, 90° manual slope in dual axes
- Operating Range
900 m / 3000 ft
- Self-leveling accuracy
± 2.2 mm at 30 m (± 3/32” at 100 ft)
- Self-leveling range
± 5°
- Grade range
-
- Rotation Speed
120, 300, 600 rpm
- Laser diode type/class
635 nm (visible) / class 2
- Batteries type
4 D-cell alkaline / Li-Ion
- Battery life
> 60h (alk) / > 40h (Li-Ion)
- Operating Temps.
-10°C to 50°C
14°F to 122°F
- Storage Temp.
-30°C to 70°C
-22°F to 158°F
- Protection
IP67
