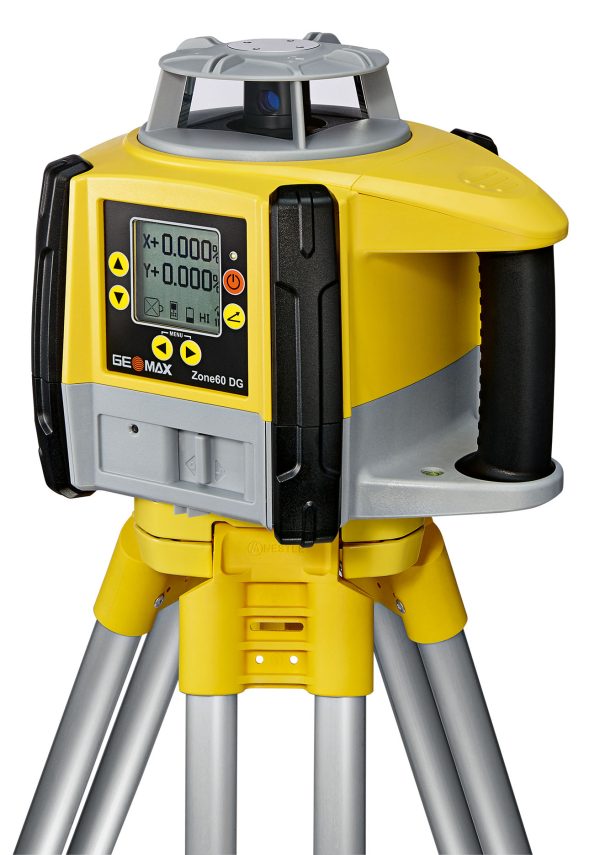

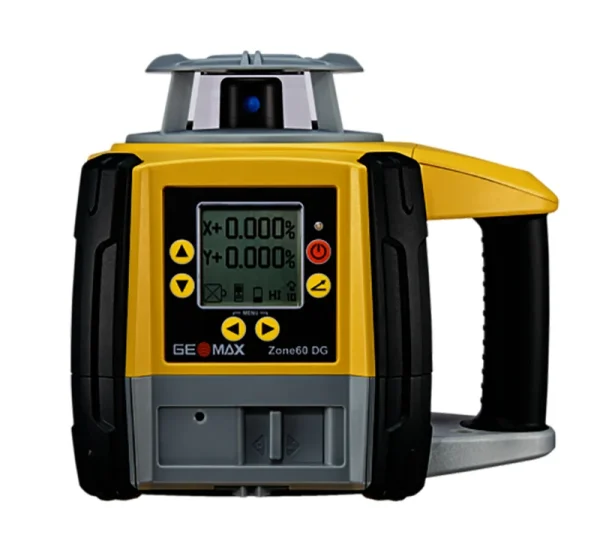

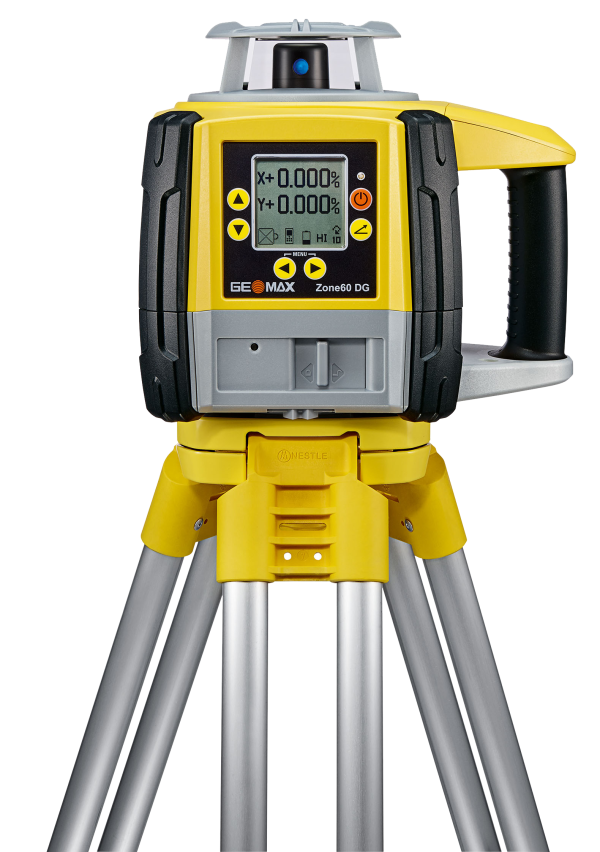

The Zone60 DG is a fully-automatic grade laser in both axes, specifically designed for crews that require dependability and accuracy on a daily basis. Digital grades can be entered up to 15% slope making it suitable for almost any construction site. Save even more time by using this laser with the ZRD105B laser receiver, which automatically catches and monitors the laser’s beam.
Zone60DG
Specification
- Description
Self-leveling horizontal, vertical, digital slope in dual axes (fully automatic). Beam catching option.
- Operating Range
900 m / 3000 ft
- Self-leveling accuracy
± 5°
- Self-leveling range
Up to 15 %
- Grade range
± 1.5 mm at 30 m (±1/16” at 100 ft)
- Rotation Speed
300, 600 rpm
- Laser diode type/class
635 nm (visible) / class 1
- Batteries type
4 D-cell alkaline / Li-Ion
- Battery life
> 60h (alk) / > 40h (Li-Ion)
- Operating Temps.
-20°C to 50°C
-4°F to 122°F
- Storage Temp.
-30°C to 70°C
-22°F to 158°F
- Protection
IP67
