Capable of operating at a speed of 15 rps (rotations per second), the Zone75 DG is a perfect fit for machine guidance solutions. With a laser beam that is stable over longer distances, it is especially suited for land levelling and agriculture applications. For optimal land use, Zone75 DG not only gives you a reference for horizontal planes but also for slopes up to 15%.

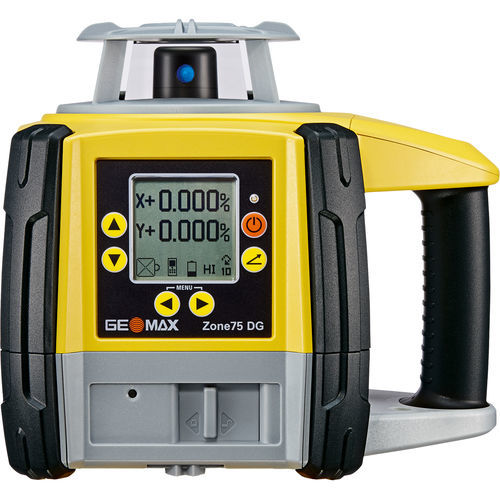

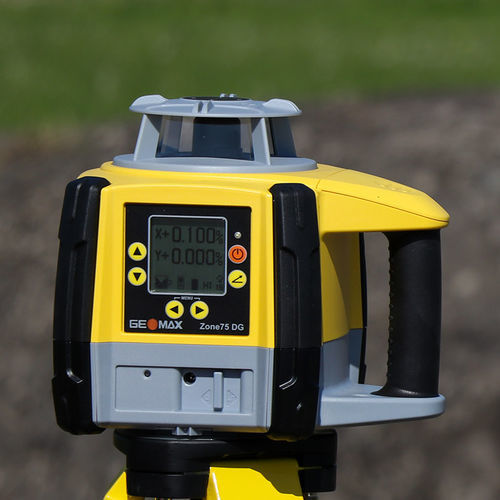

Zone75DG
Specification
- Description
Self-leveling horizontal, vertical, digital slope in dual axes (fully automatic). Beam catching option.
- Operating Range
1100 m / 3600 ft
- Self-leveling accuracy
± 5°
- Self-leveling range
Up to 15 %
- Grade range
± 1.5 mm at 30 m (±1/16” at 100 ft)
- Rotation Speed
300, 600, 900 rpm
- Laser diode type/class
635 nm (visible) / class 1
- Batteries type
Li-Ion
- Battery life
> 50h
- Operating Temps.
-20°C to 50°C
-4°F to 122°F
- Storage Temp.
-30°C to 70°C
-22°F to 158°F
- Protection
P67
