Description

Featuring easy-to-use, dial-in grade capabilities this laser is more flexible in use and enables semiautomatic grade in leveling applications. The Zone60 HG allows a grade up to 8% slope in both axes with high accuracy. This rugged laser is an ideal solution for exterior applications like concrete and form work.

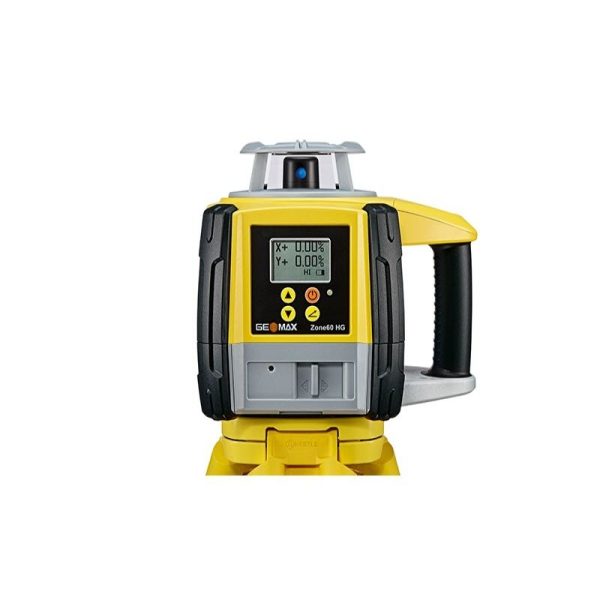

Zone60HG

Specification

  • Description
  • Self-leveling horizontal digital slope in dual axes (semi-automatic).

  • Operating Range
  • 900 m / 3000 ft

  • Self-leveling accuracy
  • ± 5°

  • Self-leveling range
  • 8 %

  • Grade range
  • ± 1.5 mm at 30 m

    (±1/16” at 100 ft)

  • Rotation Speed
  • 600 rpm

  • Laser diode type/class
  • 635 nm (visible) / class 1

  • Batteries type
  • 4 D-cell alkaline / Li-Ion

  • Battery life
  • > 60h (alk) / > 40h (Li-Ion)

  • Operating Temps.
  • -10°C to 50°C

    14°F to 122°F

  • Storage Temp.
  • -30°C to 70°C

    -22°F to 158°F

  • Protection
  • IP67
