Equipped with an advanced automatic compensator featuring crossed suspensiondtapes and an air damper system, the AL32 significantly enhances leveling accuracy and operational efficiency. A conveniently placed press button allows for easy compensator verification, ensuring optimal performance. Its robust metal housing offers superior durability and protection, making the ALPHA AL32 an ideal choice for demanding field.

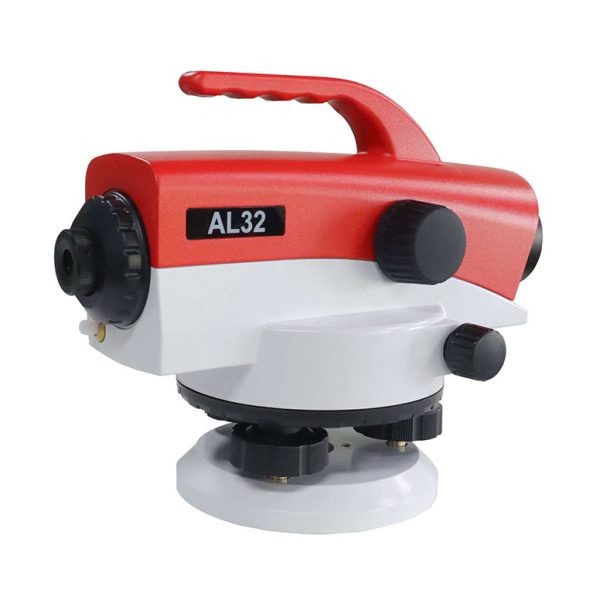

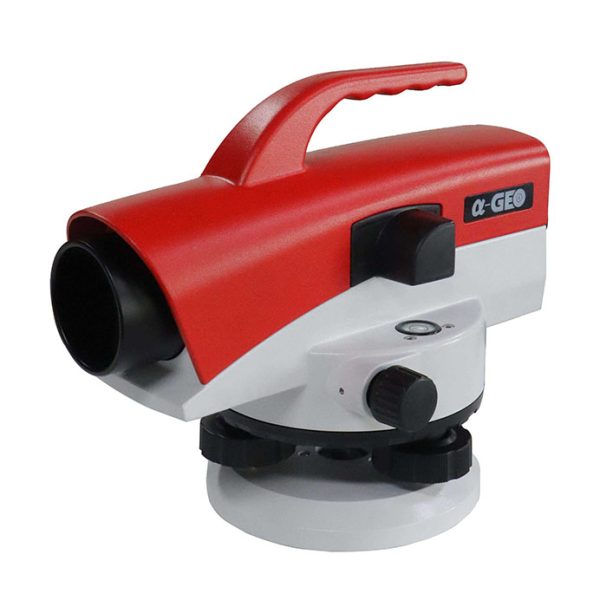

ALPHA AL32
SPECIFICATION
- Telescope Magnification
32X
- Standard Deviation for 1km Double-run Leveling
1.0mm
- Setting Accuracy
±0.3”
- Compensator Working Range
±15’
- Telescope Image
Erect
- Effective Aperture Size of Objective
40mm
- Angle of FOV
1°17.5’
- Shortest Sighting Distance
0.5m
- Stadia Multiplication / Addition Constants
100/0

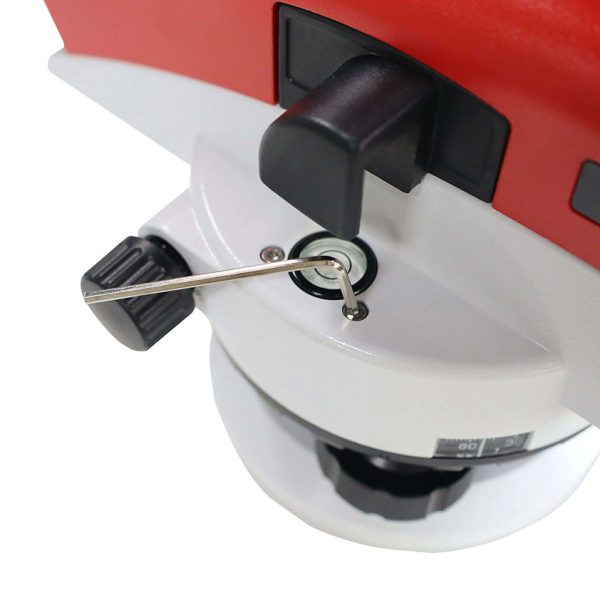

- Accuracy of Circular Level
8’/2mm
- Graduation Value
360°or 400gon
- Degrees of Protection
IP54
- Compensator Type
X wire-hung and air-damping
- Instrument Size
229mm x 145mmx175mm
- Net Weight
1.8Kg
