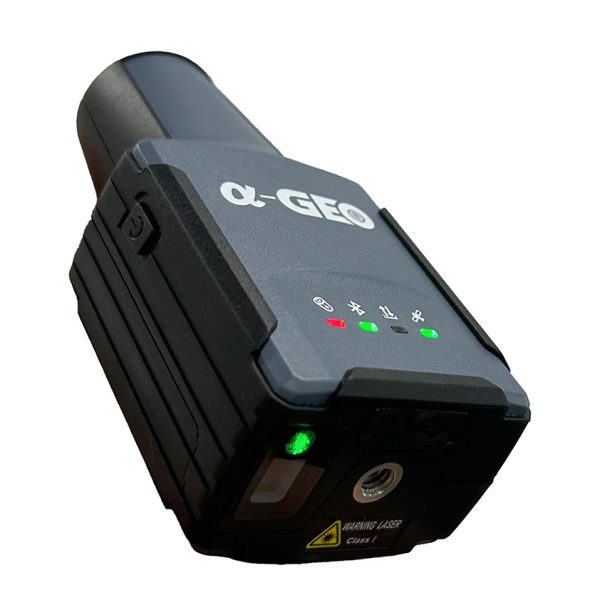

L2 Plus impresses with its unique design and ultra-small body size, the dimension of this RTK receiver is only 61(L)x41(W)x120(H)mm, such a small size RTK receiver can take the place of cellphone that putting it into the pocket is not a problem. And the weight of L2 Plus is only 170g including internal battery, extremely lightweight that you almost don't feel tired while you hold it for a long time in the field work.
L2 Plus
SPECIFICATION
GNSS Performance
- Satellites signals tracking
GPS:L1C/A,L2C,L2P,L5
BDS:B1, B2,B3,B1C,B2a, B2b, B3
SBAS:WAAS, ENGOS, MSAS, GAGAN, SDCM
QZSS:L1,L2,L5,L6
Galileo:E1, E5a, E5b,E6
GLONASS:L1,L2
- Channels
1408
- Cold start
<60s
- Hot start
<15s
- Positioning output rate
1Hz~ 50Hz
- Signal reacquisition
<1s
- RTK initialization time
<5s
- Initialization reliability
>99.99%
- Time accuracy
20ns
Positioning accuracy
- Static GNSS surveying
H: ±(2.5mm+0.5ppm)
V: ±(5mm +0.5ppm)
- RTK surveying
H: +(8mm + 1ppm)
V: +(15mm+1ppm)

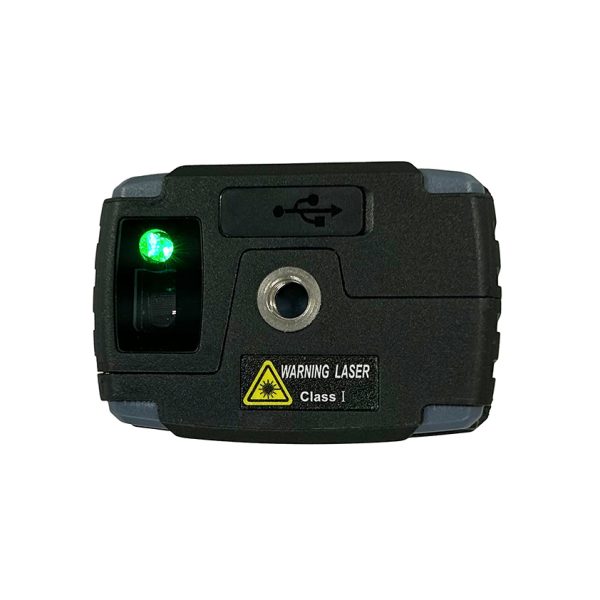

- Laser surveying
+1cmm + 5mm/m
IMU
- Sensor
Supported, 4D IMU
initialization in 3 seconds
- Update rate
400Hz
- Accuracy
<2.5cm within 120°
- Tilt compensation
0 ~ 120°
- 1/0 interface
Type-C
- Bluetooth
Bluetooth V4.0
Electrical
- Battery
Built-in Li-ion battery, supports external power supply
- Capacity
2000mAh
- Battery life
>12hrs
- Interface
Type-C 5V/2A
Environmental
- Operating temperature
-20°C~+75°C
- Storage temperature
-40°C~+85°C
- Protection IP
IP67
- Shockproof
Survive a 2m pole drop onto concrete
- Vibration
MIL-STD-810G
- Humidity
100% Non-condensing
Physical
- Dimensions
120mmx61mmx41mm
- Weight
170g
- Materials
Polymer engineering materials
- Keys
Power button

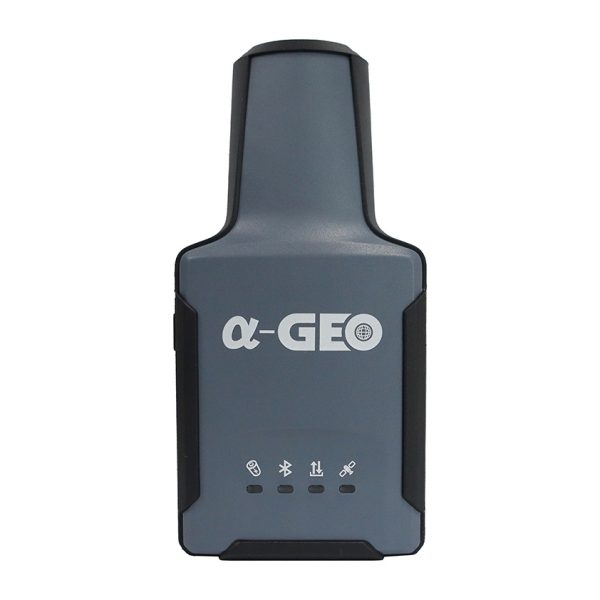

- Indicators
1*Satellite indicator
1*Bluetooth indicator
1* Data communication
1* Power indicator
