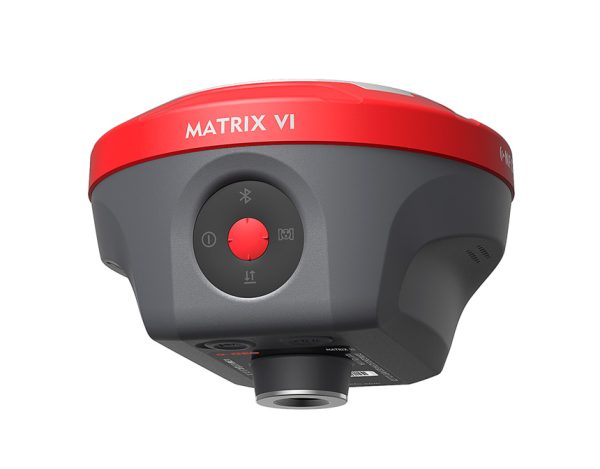

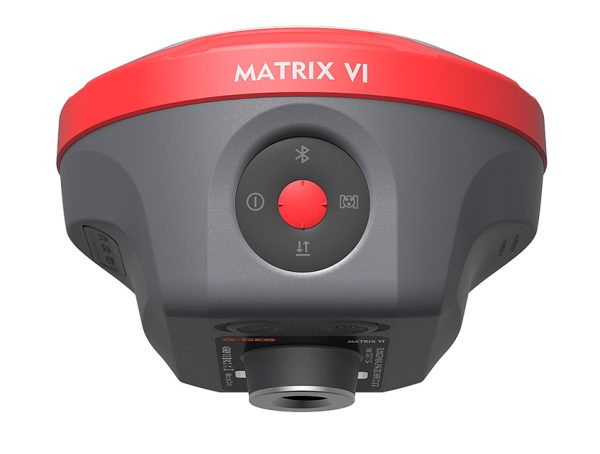

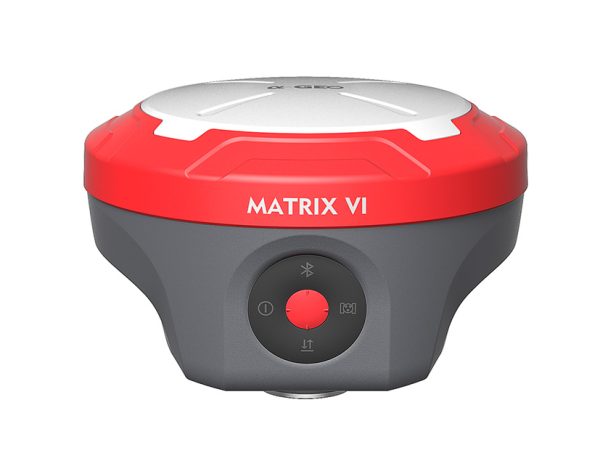

Matrix VI

SPECIFICATION

• Satellite signals tracked simultaneously

• GPS: L1C/A, L2C, L2P, L5

  GLONASS: L1, L2

  BDS: B1, B1C, B2, B2a, B2b, B3

  GALILEO: E1, E5a, E5b, E6

  QZSS: L1, L2, L5, L6

  SBAS: WAAS, EGNOS, MSAS, GAGAN, SDCM

• Channels

• 1408 tracking Channels

• Cold start

• <60 s

• Hot start

• <15 s

• Positioning output rate

• 1Hz ~ 50Hz

• Signal Reacquisition

• <1s

• RTK Initialization time

• <5s

• Initialization Reliability

• >99.99%

• Time accuracy

• 20 ns

Positioning

• Code differential GNSS positioning

• H: 0.25m + 1ppm RMS

  V: 0.50m + 1ppm RMS

• SBAS differential positioning accuracy2

• Typically < 5m 3DRMS

• Static GNSS surveying

• H: 2.5mm + 0.5ppm RMS

  V: 5mm + 0.5ppm RMS

• RTK surveying (baseline<30km)

• H: 8mm + 1ppm RMS

  V: 15mm + 1ppm RMS

• Network RTK

• H: 8mm + 0.5ppm RMS

  V: 15mm + 0.5ppm RMS

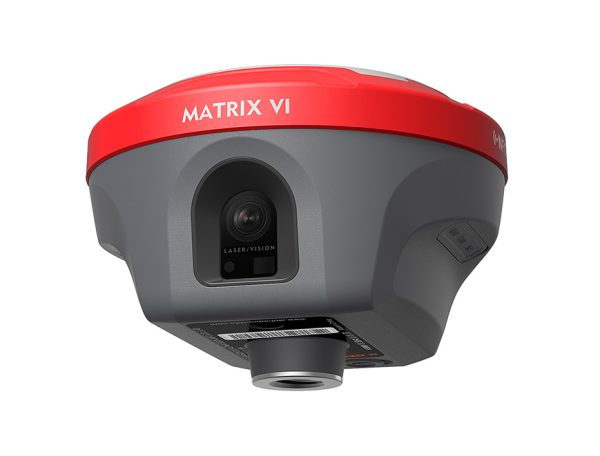

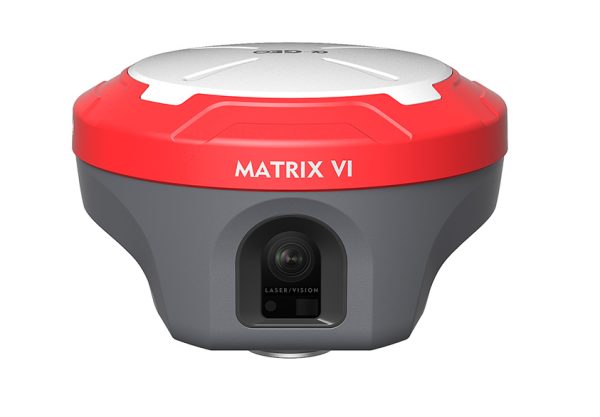

• Laser measurement

• ±1cmm + 5mm/m

PHYSYCAL

• Material

• Magnesium alloy

• Dimensions

• 129mm×129mm×99mm

• Weight

• <0.8kg

• Operating temperature

• -40℃ ~ +75℃

• Storage temperature

• -55℃ ~ +85℃

• Waterproof/Dustproof

• IP67 standard, protected from 30min immersion to depth of 1m

• Shock

• Survive a 2m pole drop onto concrete

• Vibration

• MIL-STD-810G

• Humidity

• 100%, condensing

ELECTRYCAL

• Power supply

• 9~24V DC external power input to 5-pin LEMO port Supports Type-C fast charging

• Battery

• Built-in 7000mAh-7.4V Li-ion battery

• Battery life

• Rover mode: 12hours

  Base mode: 7hours

  Static mode: 15hours

• I/O interface

• 1* 5-pin LEMO port, power supply, RS232, external radio communication port

  1* USB Type-C port, charging, data download

  1* SIM card slot, Nano SIM

  1* UHF antenna interface

• Internal UHF

• 410MHz~470MHz, supports frequency modification

• Protocols

• Trimtalk450S, Alphatalk15, South, Satel, PCC-EOT

• Cellular network

• Full frequency multi-band 4G modem, supports TDD-LTE /FDD-LTE/WCDMA/CDMA2000

• WiFi

• 802.11 b/g standard, access point & client mode, supports accessing to hotspot for correction transmission

• Bluetooth

• Bluetooth 5.2 classical/BLE proprietary dual-mode

• Differential data format

• RTCM2x, RTCM3x, CMR&CMR+, sCMRx

• GPS output data format

• RINEX, NMEA-0183

Data storage

• Memory

• 64GB, supports cyclic storage, with ability to collect almost 4 years raw observation based on 5s interval

User interaction

• Operating system

• Linux OS

• Buttons

• Power key

• Indicators

• 1* Power indicator

  1* Bluetooth indicator

  1* Satellite indicator

  1* Data link indicator

• Voice

• Intelligent voice prompts

• Web UI

• Supports Web UI configration
