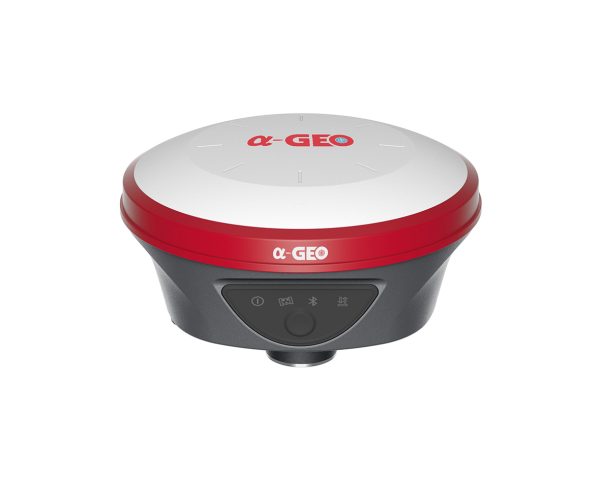

L100 PRO+

SPECIFICATION

• Satellite signals tracked simultaneously

• GPS: LlC/A. LlC, L2P(Y), L2C, LS

  GLONASS:Ll,L2,L3

  BEIDOU: Bl I, B2I, B3 I, BlC, B2a, B2b

  GALILEO:E1,E5a,E5b,E6

  QZSS:L1,L2,L5,L6

  SBAS:L1,LS

  IRNSS: LS

• Channels

• 1408trackin Channels

• Cold start

• <60s

• Hot start

• <15s

• Positioning output rate

• 1Hz 20Hz

• Signal Reacquisition

• <1s

• RTKlnitializationtime

• <10s

• In itia lizat ion Reliability

• >99.99%

• Time accuracy

• 20ns

Positioning

• Code differential GNSSpositioning

• Horizontal: 0.25 m + 1 ppm RMS

  Vertical: 0.50m+ 1 ppm RMS

  SBAS differential positioning accuracy :typically

• Static GNSS surveying

• Horizontal: 2.5 mm + 0.5 ppm RMS Vertical: 5 mm+ 0.5 ppm RMS

Real Time Kinematic Surveying

• SingleBaseline<30KM

• Horizontal: 8 mm+ 1 ppm RMS

  Vertical: 15 mm+ lppm RMS

• NetworkRTK

• Horizontal: 8 mm+ 0.5 ppm RMS

  Vertical: 15 mm+ 0.5 ppm RMS

HARDWARE

• Material

• Magnesium alloy

• Dimensions

• 131x64rnm

• Weight

• 0.76kg

• Operating temperature

• -40"Cto+75°C

• Storage temperature

• -55'C to+85°C

• Protection IP

• IP67 dust proof, protected from 30min immersion to depth of 1 m

• Shock

• Survive2 mdropontotheconcrete

• Vibration

• MIL-STD-810G

• Humidity

• 100%, condensing

ELECTRYCAL

• Power

• 9-24 V DC external power

• USB Type-C fast charging

• Support

• Battery capacity

• Interna l 7000rnAh lithium-ion battery

• Batterylife

• Rover Mode: 15 hours

  BaseMode:7hours

  StaticMode:17hours

1/0 interface

• LEMOport(Spin)

• Supports power input, serial port control, and externa l radio communication

• USBType-C port

• Charging

• Sim card slot

• Supports Nano-SIM

• Antenna port

• UHF antenna interface

Radio modem

• Transmit power

• 1/2 w switchable,Workrangecanreachto 15km underAlphalalklS protocol

• Frequency band

• 41 0MHz-470MHz; supports to set the frequency

• Protocols

• AlphaTalkl 5, Trimlalk450s, SOUTH, Satel,PCC-EOT

Cellular

• Integrated full frequency multi band 4G modem, supportsWCDMA/CDMA2000/TDD LTE/FDD-LTE

WIFI

• 802.11 big standard, access point & client mode, supports access to hotspot for correction t ransmission

Bluetooth

• Fully integrated BluetoothVS.2,range

Data format

• RTCM2x, RTCM3x, CMR& CMR+, sCMRx, Dat, RINEX, NMEA outputs

Storage

• 8GB internal memory, supports cyclic storage; with ability to collect over one ye~r r~w observ~tion b~sed on s seconds interval

Camera

• AR

• SM high-definition camera w ith large viewing angle and support for live scene stakeout

Others

• OS stystem

• lntelli ent LiNUX operatin system

• Tilt Compensation

• IMU up to 120° (Calibration free)

• Supported controllers

• All android devices w ith supported software

Design

• Button

• Power key

• Indicator

• Power indicator, data link indicator, satellite indicator, Bluetooth indicator

• Voice

• Intelligent voice prompts

• WEBUI

• Support WEBUI configuration
