The Zenith16 GNSS receiver is a cost-effective investment that guarantees reliable results. In combination with GeoMax field controllers and the X-PAD software, the receiver reaches its full potential.

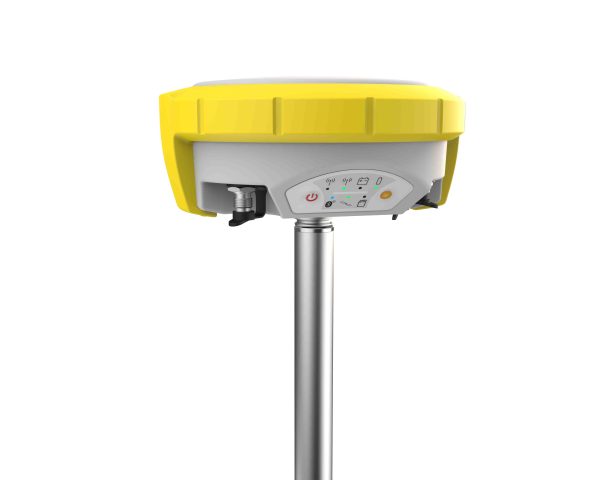

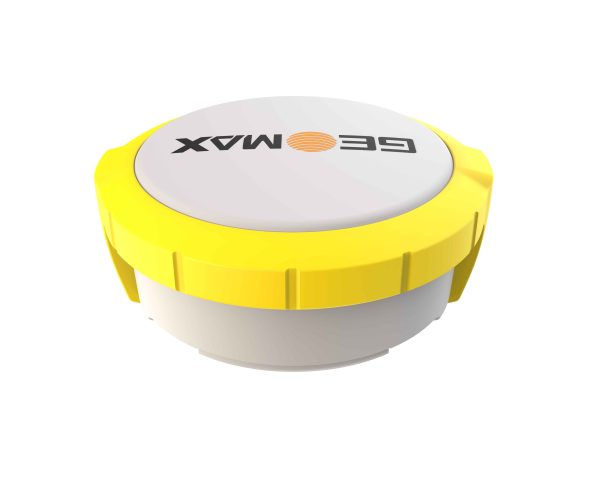

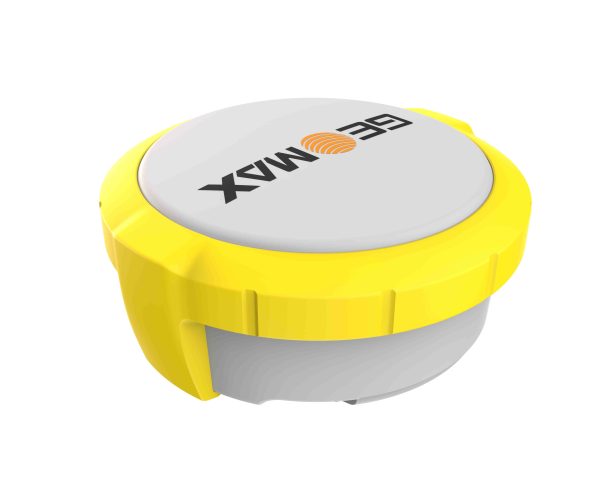

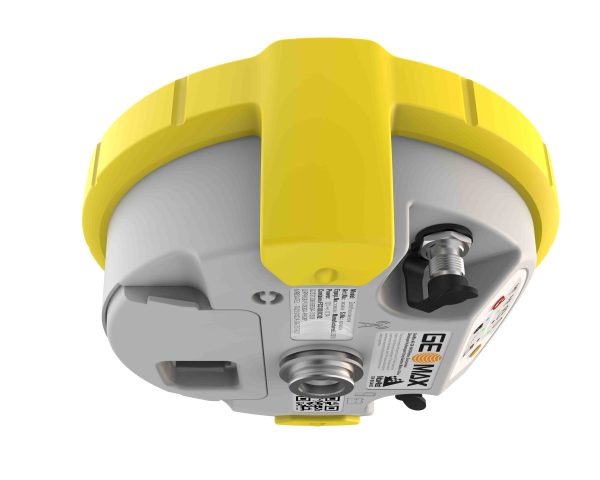

Zenith16
SPECIFICATION
- Q-Lock ProTM functionality
Lowest noise and advanced multipath mitigation for highest reliability
- Reliability
99.95%
- Measurement Engine
NovAtel OEM7, 181 channels, dual-frequency / multi-constellation
- GPS tracking
L1, L2, L2C
- GLONASS tracking
L1, L2, L2C
- BeiDou tracking
B1, B2 (opt)
- Galileo tracking
E1, E5b (opt)
- QZSS tracking
L1, L2C (opt)
- Positioning rate
5 Hz
- SBAS
EGNOS, WAAS, MSAS, GAGAN
Receiver accuracy (rms)
- RTK
Hz 10 mm + 1 ppm
V 20 mm + 1 ppm
- Network RTK
Hz 10 mm + 0.5 ppm
V 20 mm + 0.5 ppm
- Static
Hz 5 mm + 0.5 ppm
V 10 mm + 0.5 ppm
- Static - long
Hz 3 mm + 0.1 ppm
V 3.5 mm + 0.4 ppm
Interfaces
- Keyboard
On/off and function key

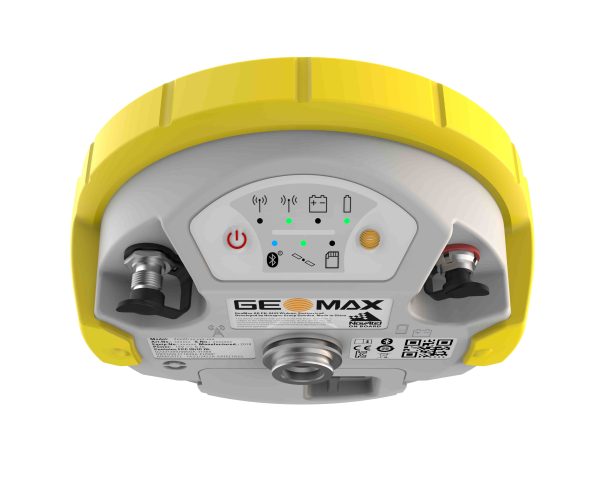

- LED status indicators
Position, battery, Bluetooth®,
RTK receive, RTK transmit, data storage
- LED mode indicators
Rover, base, static
- Data recording
Removable microSD card
Communication
- UHF radio module
SATEL, 500mW, 1000 mW transceiver, 403 – 473 MHz; (opt)
- Bluetooth®
Device class II QR-iConnect functionality

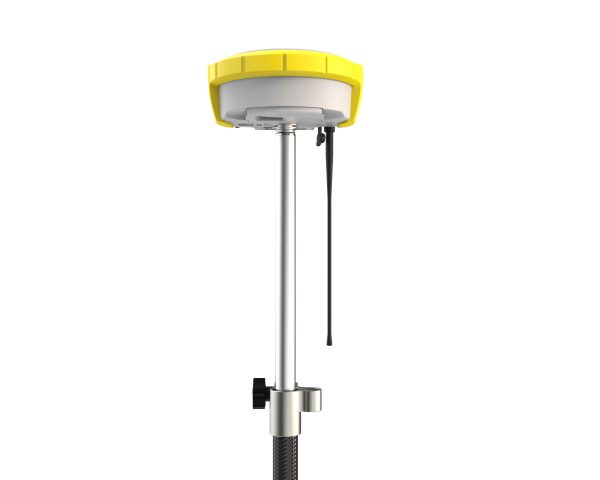

- TNC connector
High sensitivity, UHF antenna
- Communication port
USB, serial & power
Physical specifications
- Dimensions
Height 95 mm, ø 198 mm
- Weight
1.09 - 1.13 kg
- Operating temp.
– 40°C to 65°C
- Environmental protection
IP68 / IP66 / MIL
- Humidity
100%, condensing
- Vibration
Mechanical stress resistant according to ISO 9022-36-05
- Shock
Withstands 2 m drop onto hard surface
Power supply
- Internal battery
Removable, Li-Ion 2.6 Ah / 7.4 V
- Operating time
9 h in static
6 h in rover mode
- External power
10.5 V to 28 V, LEMO® plug
