Zenmuse L2 integrates frame LiDAR, a self-developed high-accuracy IMU system, and a 4/3 CMOS RGB mapping camera, providing DJI flight platforms with more precise, efficient, and reliable geospatial data acquisition. When used with DJI Terra, it delivers a turnkey solution for 3D data collection and high-accuracy post-processing.

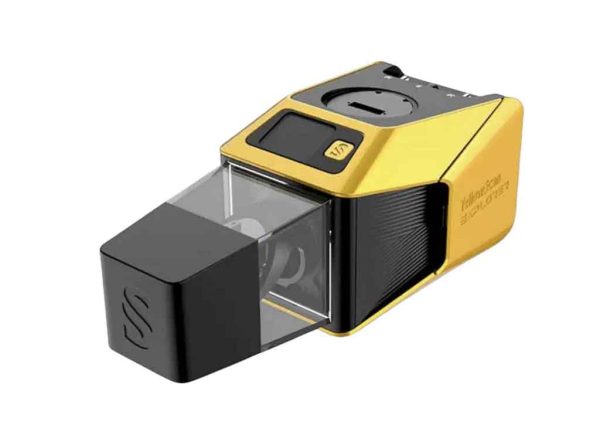

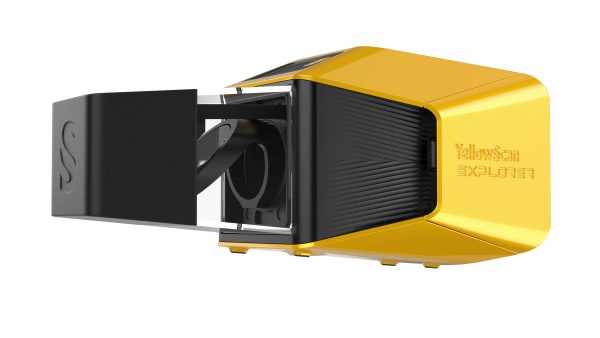

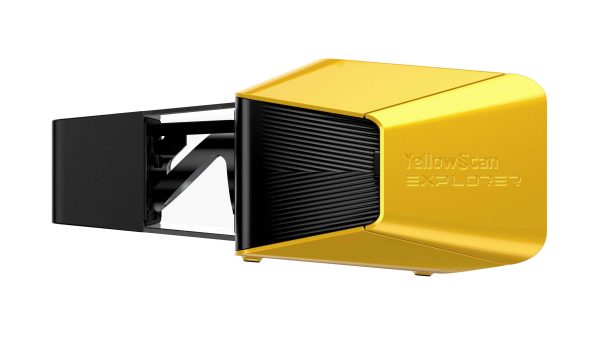

Explorer
The Explorer is the first compact, versatile and long range platform on the market. It is the culmination of several years of research and development done by YellowScan, while closely working alongside customers and partners from around the world.
Related products
Mapper
Start your LiDAR journey with Yellowscan easy-to-use Mapper system. Its low weight, mid-range capability, top-end point density and advanced accuracy and precision, makes this LiDAR system the best value for money.
Fly&Drive
The Fly & Drive is a versatile, land vehicle or UAV-mounted, mobile mapping system that combines high-resolution laser scanning and precise positioning to collect geo-referenced pointclouds.
Zenmuse L2
Navigator
The YellowScan bathymetric LiDAR is an innovative solution for exploring underwater and ground topography with a single-button operation.
Its lightweight design allows for versatile platform selection without compromising water penetration.
Mapper+
The YellowScan Mapper+ is the lightest three echoes and high-density LiDAR system.
Vx20
The Vx20 series is the ideal solution for high-flight projects with quick data processing needs. It is the most accurate system of the Vx series.
Voyager
The Voyager’s 100° laser scanner with its extremely fast data acquisition rate of up to 2400 kHz, makes this solution the best option for projects requiring the highest point density.
Vx15
Go from mapping inaccessible sites in the Balinese mountains to secluded areas in Chile.
Surveyor Ultra
With its 360° field of view, the YellowScan Surveyor Ultra answers vertical mapping and mobile mapping needs when combined with Fly&Drive. Expect unparalleled vegetation penetration thanks to this system’s 32 laser beams.

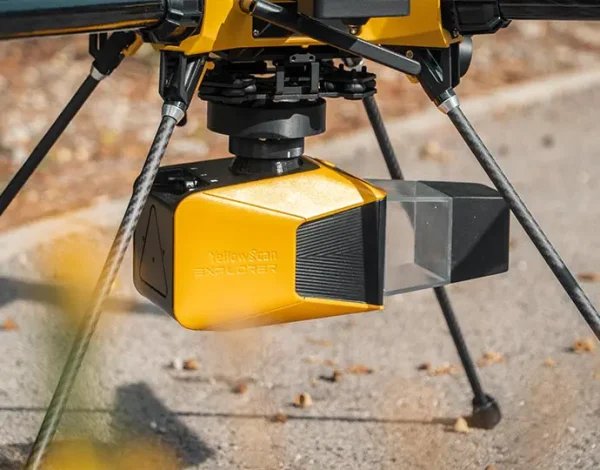

Complete more mission profiles with this compact LiDAR solution that can be mounted on light manned aircraft, helicopters or UAV platforms. When it comes to drones, the “quick release” attachment allows for easy mounting on a wide range of drones. Two options: Gremsy or Skyport, which can be interchanged depending on the drone you’re using.
Explorer
SPECIFICATION
- Precision
2 cm
- Accuracy
2 cm
- Echoes per shot
Up to 5
- Wavelength
1556 nm
- Range
Up to 300 m
- GNSS-Inertial solution
SBG Quanta Micro
- Scanner field of view
360°
- Shots per second
Up to 500k
- Scanning frequency
Up to 165 Hz (selectable)
- Weight
1.8 kg (4.0 lbs) batt. excl
- Size
L 270 x W 118 x H 135 mm
- Autonomy
1 hour typ.
- Power consumption
55 W
- Operating temperature
-10 to +40 °C
