Zenmuse L2 integrates frame LiDAR, a self-developed high-accuracy IMU system, and a 4/3 CMOS RGB mapping camera, providing DJI flight platforms with more precise, efficient, and reliable geospatial data acquisition. When used with DJI Terra, it delivers a turnkey solution for 3D data collection and high-accuracy post-processing.
Voyager
The Voyager’s 100° laser scanner with its extremely fast data acquisition rate of up to 2400 kHz, makes this solution the best option for projects requiring the highest point density.
Frequently Bought Together
Related products
Explorer
The Explorer is the first compact, versatile and long range platform on the market. It is the culmination of several years of research and development done by YellowScan, while closely working alongside customers and partners from around the world.
Mapper+
The YellowScan Mapper+ is the lightest three echoes and high-density LiDAR system.
Vx15
Go from mapping inaccessible sites in the Balinese mountains to secluded areas in Chile.
Navigator
The YellowScan bathymetric LiDAR is an innovative solution for exploring underwater and ground topography with a single-button operation.
Its lightweight design allows for versatile platform selection without compromising water penetration.
Fly&Drive
The Fly & Drive is a versatile, land vehicle or UAV-mounted, mobile mapping system that combines high-resolution laser scanning and precise positioning to collect geo-referenced pointclouds.
Vx20
The Vx20 series is the ideal solution for high-flight projects with quick data processing needs. It is the most accurate system of the Vx series.
Mapper
Start your LiDAR journey with Yellowscan easy-to-use Mapper system. Its low weight, mid-range capability, top-end point density and advanced accuracy and precision, makes this LiDAR system the best value for money.
Surveyor Ultra
With its 360° field of view, the YellowScan Surveyor Ultra answers vertical mapping and mobile mapping needs when combined with Fly&Drive. Expect unparalleled vegetation penetration thanks to this system’s 32 laser beams.
Zenmuse L2

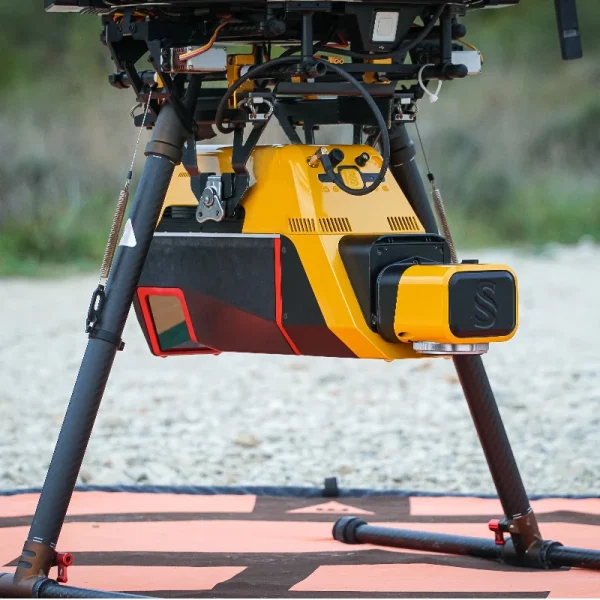

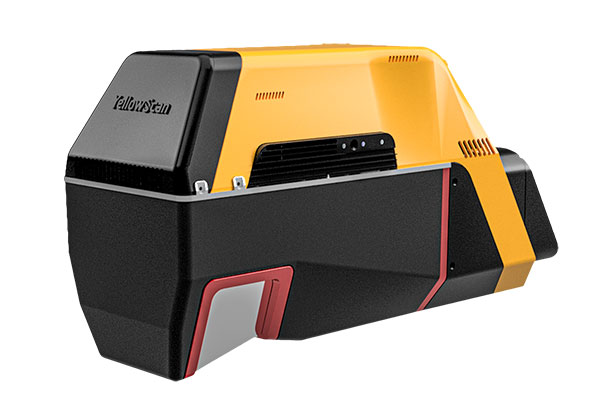

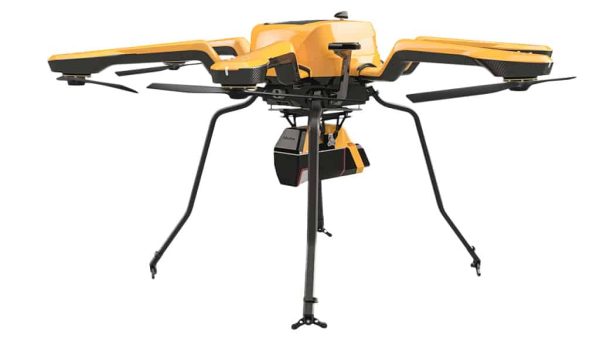

The Voyager is YellowScan highest range LiDAR solution, with a range of up to 440m. Its laser scanner’s wide field of view of 100° and its extremely fast data acquisition rate of up to 2.4 MHz, makes this solution the best option for projects requiring the highest point density.
Voyager
SPECIFICATION
- Scanner precision
0.5 cm
- Scanner accuracy(
1 cm
- Laser scanner
RIEGL VUX-12023
- Laser Pulse Repetition Rate
Up to 2.4 MHz
- Echoes per shot
Up to 32
- Wavelength
Near infrared
- Range
Up to 440 m
- Scanner field of view
100°
- GNSS-Inertial solution
Applanix
APX-20 UAV or AP+ 50 AIR
- Size
L 36.9 x W 11.7 x H 18.3 cm
- Autonomy
1 hours typ.
- Power consumption
55 W
- Operating temperature
-10°C to +40°C
- Weight
3.3 kg (7.3 lbs) battery excluded
3.7 kg (8.2 lbs) battery included
