Zenmuse L2 integrates frame LiDAR, a self-developed high-accuracy IMU system, and a 4/3 CMOS RGB mapping camera, providing DJI flight platforms with more precise, efficient, and reliable geospatial data acquisition. When used with DJI Terra, it delivers a turnkey solution for 3D data collection and high-accuracy post-processing.
Related products
Vx20
The Vx20 series is the ideal solution for high-flight projects with quick data processing needs. It is the most accurate system of the Vx series.
Surveyor Ultra
With its 360° field of view, the YellowScan Surveyor Ultra answers vertical mapping and mobile mapping needs when combined with Fly&Drive. Expect unparalleled vegetation penetration thanks to this system’s 32 laser beams.
Zenmuse L2
Navigator

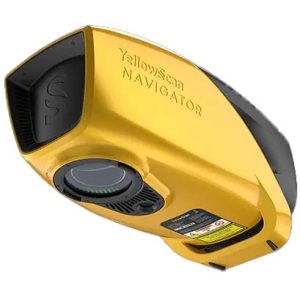

The YellowScan bathymetric LiDAR is an innovative solution for exploring underwater and ground topography with a single-button operation.
Its lightweight design allows for versatile platform selection without compromising water penetration.
Vx15
Go from mapping inaccessible sites in the Balinese mountains to secluded areas in Chile.
Voyager
The Voyager’s 100° laser scanner with its extremely fast data acquisition rate of up to 2400 kHz, makes this solution the best option for projects requiring the highest point density.
Fly&Drive

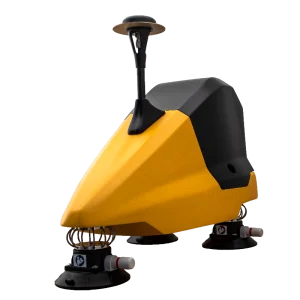

The Fly & Drive is a versatile, land vehicle or UAV-mounted, mobile mapping system that combines high-resolution laser scanning and precise positioning to collect geo-referenced pointclouds.
Mapper
Start your LiDAR journey with Yellowscan easy-to-use Mapper system. Its low weight, mid-range capability, top-end point density and advanced accuracy and precision, makes this LiDAR system the best value for money.
Explorer
The Explorer is the first compact, versatile and long range platform on the market. It is the culmination of several years of research and development done by YellowScan, while closely working alongside customers and partners from around the world.

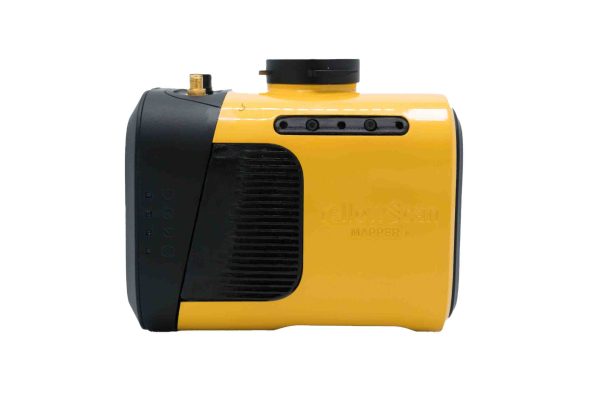

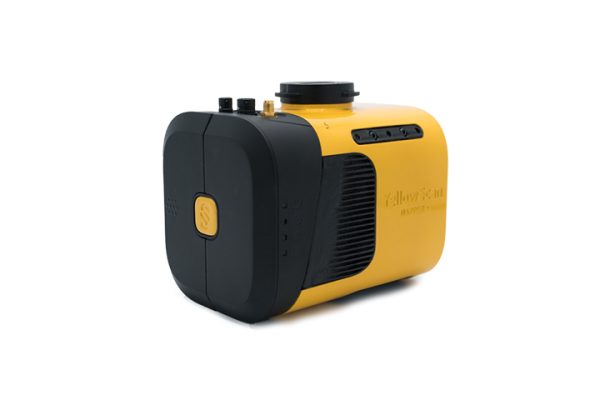

The YellowScan Mapper+ integrates Livox AVIA laser scanner together with high performance GNSS-aided inertial navigation system into a lightweight, standalone and easy-to-use lidar system. Proven capabilities and stable results over a wide range of applications.
Mapper+
SPECIFICATION
- Scanner
Livox AVIA
- Max. AGL altitude
100 m
- Precision
3.5 cm
- Accuracy
4.0 cm
- Shots per second
Up to 240 000
- Echoes per shot
Up to 3
- Scanner field of view
70.4° x 4.5°
- GNSS-Inertial solution
Applanix
APX-15 UAV
- Size
L 15 x W 10.4 x H 12.8 cm
- Autonomy
1 hour typ.
- Weight
35 W
- Power consumption
1.1 kg battery excl.
1.3 kg battery incl.
- Operating temperature
-10 to +40 °C
