Vx15

In Stock (VAT not included)
Highlights:

Go from mapping inaccessible sites in the Balinese mountains to secluded areas in Chile.

Category:
Description

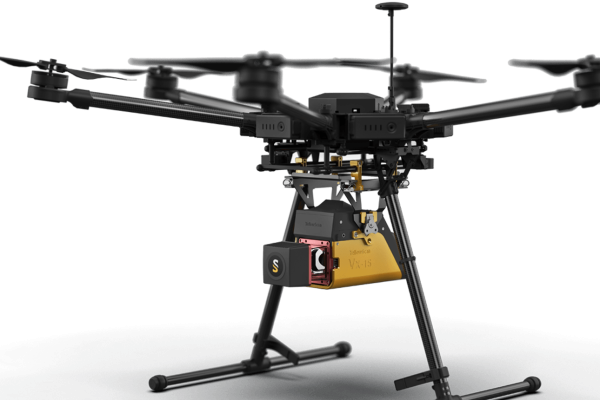

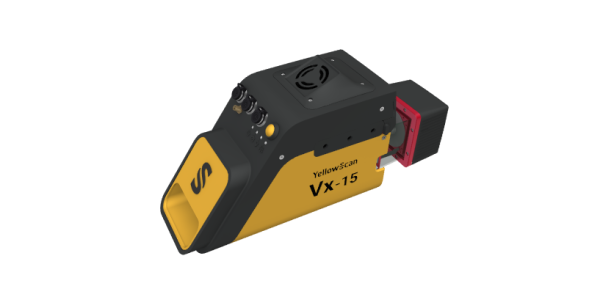

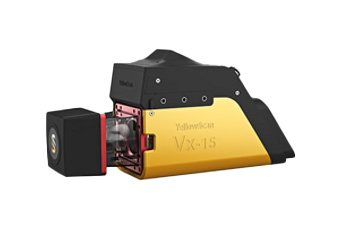

YellowScan Vx15 is the lightest system integrating the Riegl Mini-VUX. Ideally suited for high precision surveys such as civil engineering. Coupled with the DJI M300 it allows over 25min flight time maximizing your survey production.

Vx15

SPECIFICATION

  • Precision
  • 1 cm

  • Accuracy
  • 5 cm

  • Echoes per shot
  • Up to 5

  • Laser wavelength
  • 905 nm

  • GNSS-Inertial solution
  • Applanix

    APX-15 UAV

  • Weight
  • 2.6 kg (5.7 lbs) battery included

  • Size
  • L 35 x W 11 x H 17 cm

  • Autonomy
  • 1.5 hours typ.

  • Power consumption
  • 25 W

  • Operating temperature
  • -20 to +40 °C

Vx15-100 100 kHz

  • Shots per second
  • 100k over 360°

  • Scanner field of view
  • 360°

  • Operating Flight Altitude AGL natural targets ≥ 20%
  • 100m

  • Average point density @50m AGL, 5m/s, 90°FOV
  • 50pts/sqm

Vx15-300 100 kHz

  • Shots per second
  • 100k over 360°

  • Scanner field of view
  • 360°

  • Operating Flight Altitude AGL natural targets ≥ 20%
  • 100m

  • Average point density @50m AGL, 5m/s, 90°FOV
  • 50pts/sqm

Vx15-300 200 kHz ( over 360° )

  • Shots per second
  • 200k over 360°

  • Scanner field of view
  • 360°

  • Operating Flight Altitude AGL natural targets ≥ 20%
  • 85m

  • Average point density @50m AGL, 5m/s, 90°FOV
  • 100pts/sqm

Vx15-300 200 kHz ( over 180° )

  • Shots per second
  • 100k over 180°

  • Scanner field of view
  • 80°

  • Operating Flight Altitude AGL natural targets ≥ 20%
  • 100m

  • Average point density @50m AGL, 5m/s, 90°FOV
  • 100pts/sqm

Vx15-300 300 kHz

  • Shots per second
  • 100k over 120°

  • Scanner field of view
  • 120°

  • Operating Flight Altitude AGL natural targets ≥ 20%
  • 100m

  • Average point density @50m AGL, 5m/s, 90°FOV
  • 150pts/sqm
