DJI Mavic Series

SPECIFICATION

• Takeoff Weight

• 895 g

• Dimensions

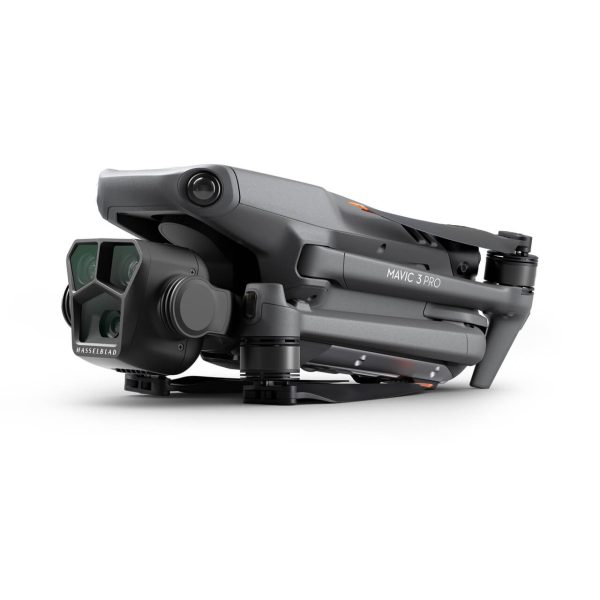

• Folded (without propellers): 221×96.3×90.3 mm (L×W×H)

  Unfolded (without propellers): 347.5×283×107.7 mm (L×W×H)

• Max Ascent Speed

• 8 m/s

• Max Descent Speed

• 6 m/s

• Max Horizontal Speed (at sea level, no wind)

• 21 m/s

  No faster than 19 m/s in EU regions.

• Max Takeoff Altitude

• 6000 m

• Max Flight Time

• 46 minutes

• Max Hovering Time

• 40 minutes

• Max Flight Distance

• 30 km

• Max Wind Speed Resistance

• 12 m/s

• Max Tilt Angle

• 35°

• Operating Temperature

• -10° to 40° C (14° to 104° F)

• Global Navigation Satellite System

• GPS + Galileo + BeiDou

• Internal Storage

• 8 GB (approx. 7.9GB available space)

Hovering Accuracy Range

• Vertical:

• ±0.1 m (with vision positioning)

  ±0.5 m (with GNSS positioning)

• Horizontal:

• ±0.3 m (with vision positioning)

  ±0.5 m (with high-precision positioning system)

Camera

• Image Sensor

• 4/3 CMOS, Effective Pixels: 20 MP

• Lens

• FOV: 84°

  Format Equivalent: 24 mm

  Aperture: f/2.8-f/11

  Focus: 1 m to ∞

• ISO Range

• Normal, Slow-motion:

  100-6400 (normal color)

  400-1600 (D-Log)

  100-1600 (HLG)

• Shutter Speed

• Electronic Shutter: 8-1/8000 s

• Max Image Size

• 5280×3956

• Still Photography Modes

• Single Shot: 20 MP

  Burst Shooting: 20 MP, 3/5/7 frames

  Timed: 20 MP, 2/3/5/7/10/15/20/30/60 s

• Photo Format

• JPEG/DNG (RAW)

• Video Resolution

• H.264/H.265

  5.1K: 5120×2700@24/25/30/48/50 fps

  DCI 4K: 4096×2160@24/25/30/48/50/60/120* fps

  4K: 3840×2160@24/25/30/48/50/60/120* fps

• Video Format

• MP4/MOV (MPEG-4 AVC/H.264, HEVC/H.265)

• Max Video Bitrate

• H.264/H.265: 200 Mbps

• Supported File System

• exFAT

• Color Mode and Sampling Method

• Normal/HLG/D-Log/D-Log M

• Digital Zoom (only in Normal Video Mode and Explore Mode)

• 3× (only in Video Mode)

Gimbal

• Stabilization

• 3-axis mechanical gimbal (tilt, roll, pan)

• Mechanical Range

• Tilt: -135° to 100°

  Roll: -45° to 45°

  Pan: -27° to 27°

• Controllable Range

• Tilt: -90° to 35°

  Pan: -5° to 5°

• Max Control Speed (tilt)

• 100°/s

• Angular Vibration Range

• ±0.007°

Sensing

• Sensing Type

• Omnidirectional binocular vision system, supplemented with an infrared sensor at the bottom of the aircraft

• Forward

• Measurement Range: 0.5-20 m

  Detection Range: 0.5-200 m

  FOV: Horizontal 90°, Vertical 103°

  Effective Sensing Speed: Flight Speed ≤ 15 m/s

• Backward

• Measurement Range: 0.5-16 m

  Effective Sensing Speed: Flight Speed ≤ 12 m/s

  FOV: Horizontal 90°, Vertical 103°

• Lateral

• Measurement Range: 0.5-25 m

  Effective Sensing Speed: Flight Speed ≤ 15 m/s

  FOV: Horizontal 90°, Vertical 85°

• Upward

• Measurement Range: 0.2-10 m

  Effective Sensing Speed: Flight Speed ≤ 6 m/s

  FOV: Front and Back 100°, Left and Right 90°

• Downward

• Measurement Range: 0.3-18 m

  Effective Sensing Speed: Flight Speed ≤ 6 m/s

  FOV: Front and Back 130°, Left and Right 160°

• Operating Environment

• Forward, Backward, Left, Right, and Upward

  surfaces with discernible patterns and adequate lighting (lux >15)

  Downward:surfaces with discernible patterns, diffuse reflectivity >20% (e.g. walls, trees, people), and adequate lighting (lux >15)

Battery

• Capacity

• 5000 mAh

• Weight

• 335.5 g

• Nominal Voltage

• 15.4 V

• Max Charging Voltage

• 17.6 V

• Type

• Li-ion 4S

• Energy

• 77 Wh

• Charging Temperature

• 5° to 40° C (41° to 104° F)

• Charging Time

• Approx. 96 minutes

Charger

• Input

• 100-240 V (AC), 47-63 Hz, 2 A

• Output

• USB-C:

  5 V, 5 A

  9 V, 5 A

  12 V, 5 A

• Rated Power

• 65 W

Battery Charging Hub

• Input

• USB-C: 5-20 V, max 5 A

• Output

• Battery Port: 12-17.6 V, max. 5 A

• Rated Power

• DJI Mavic 3 Battery Charging Hub: 65 W

  DJI Mavic 3 Battery Charging Hub (100W): 100 W

• Charging Type

• Three batteries charged in sequence

• Compatibility

• DJI Mavic 3 Intelligent Flight Battery
