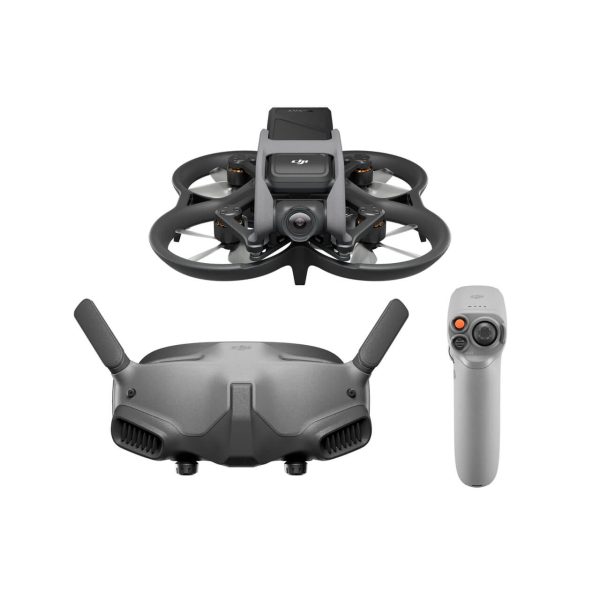

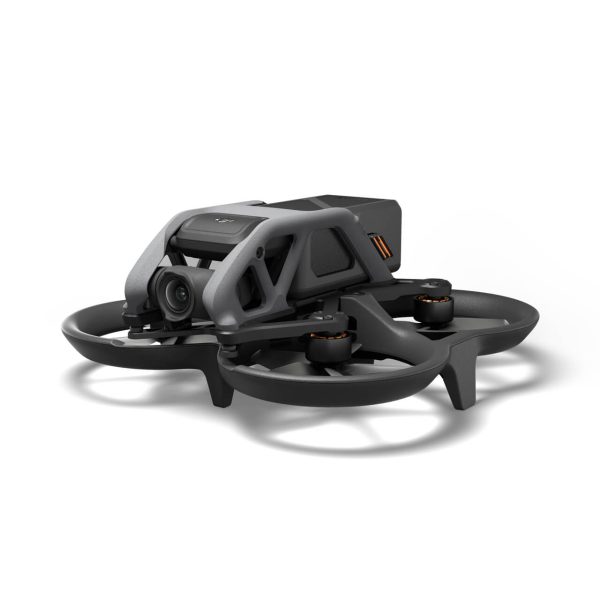

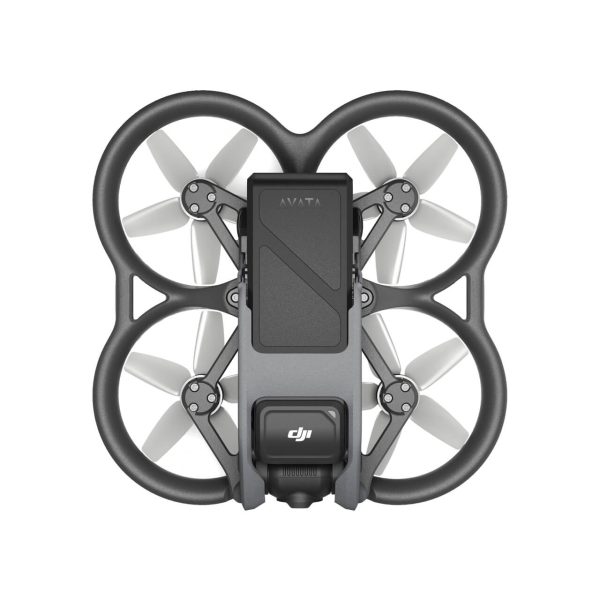

DJI Avata

SPECIFICATION

• Sensor

• 1/1.7-inch CMOS

  Effective Pixels: 48 MP

• Lens

• FOV: 155°

  Equivalent Focal Length: 12.7 mm

  Focal Length: 2.34 mm

  Aperture: f/2.8

  Focus Mode: FF

  Focus Range: 0.6 m to ∞

• ISO Range

• 100-6400 (Auto)

  100-25600 (Manual)

• Shutter Speed

• Video: 1/8000-1/50 s

  Photo: 1/8000-1/50 s

• Still Photography Mode

• Single Shot

• Max Image Size

• 4000×3000

• Photo Format

• JPEG

Video Resolution

• With DJI Goggles 2:

• 4K@30/50/60fps

  2.7K@30/50/60/100/120fps

  1080p@30/50/60/100/120fps

• With DJI FPV Goggles V2:

• 4K@30/50/60fps

  2.7K@30/50/60/100/120fps

  1080p@30/50/60/100/120fps

• Video Format

• MP4

• Max Video Bitrate

• 150 Mbps

• Color Mode

• Standard

  D-Cinelike

• EIS

• Supports RockSteady and HorizonSteady

  Can be disabled

• Distortion Correction

• Supports Normal Mode, Wide Mode, and Ultra Wide Mode

• Supported File System

• exFAT (recommended)

  FAT32

Gimbal

• Mechanical Range

• Tilt: -95° to 75°

• Controllable Range

• Tilt: -80° to +65°

• Stabilization

• Single-Axis (tilt)

• Max Control Speed

• 60°/s

• Angular Vibration Range

• ±0.01°

• Electronic Roll Axis

• Real-time screen correction is unavailable during recording, but can be applied to the footage recorded on the drone.

Aircraft

• Takeoff Weight

• Approx. 410 g

• Dimensions (L×W×H)

• 180×180×80 mm

• Diagonal Distance

• 120 mm

• Max Ascent Speed

• 6 m/s (Normal Mode, Sport Mode)

• Max Descent Speed

• 6 m/s (Normal Mode, Sport Mode)

• Max Speed

• 8 m/s (Normal Mode)

  14 m/s (Sport Mode)

  27 m/s (Manual Mode)

• Maximum Takeoff Altitude

• 5000 m

• Max Hover Time

• Approx. 18 mins

• Max Flight Distance

• 11.6 km

• Max Wind Speed Resistance

• 10.7 m/s (Level 5)

• Operating Temperature Range

• -10° to 40° C (14° to 104° F)

• Antennas

• Dual Antennas, 2T2R

• GNSS

• GPS + Galileo + BeiDou

• Supported SD Cards

• microSD (up to 256 GB)

• Internal Storage

• 20 GB

Hovering Accuracy Range

• Vertical:

• ±0.1 m (with Vision Positioning)

  ±0.5 m (with GNSS Positioning)

• Horizontal:

• ±0.3 m (with Vision Positioning)

  ±1.5 m (with GNSS Positioning)

Intelligent Flight Battery

• Battery Capacity

• 2420 mAh

• Voltage

• 14.76 V

• Charging Voltage Limit

• 17 V

• Type

• Li-ion

• Chemical System

• LiNiMnCoO2

• Energy

• 35.71 Wh@0.5C

• Discharge Rate

• Typical: 7C

• Weight

• Approx. 162 g

• Charging Temperature Range

• 5° to 40° C (41° to 104° F)

Video Transmission

• Communication Frequency

• 2.400-2.4835 GHz (RX only)

  5.725-5.850 GHz (RX and TX)

• Communication Bandwidth

• Max 40 MHz

Live View Quality and Latency

• With DJI FPV Goggles V2:

• 810p/120fps Video Transmission Quality: The video transmission latency is lower than 28 ms.

  810p/60fps Video Transmission Quality: The video transmission latency is lower than 40 ms.

• With DJI Goggles 2:

• 1080p/100fps Video Transmission Quality: The video transmission latency is as low as 30 ms.

  1080p/60fps Video Transmission Quality: The video transmission latency is as low as 40 ms.

• Max Video Transmission Bitrate

• 50 Mbps

• Max Video Transmission Range

• 10 km (FCC), 2 km (CE), 6 km (SRRC)

• Audio Transmission

• N/A
