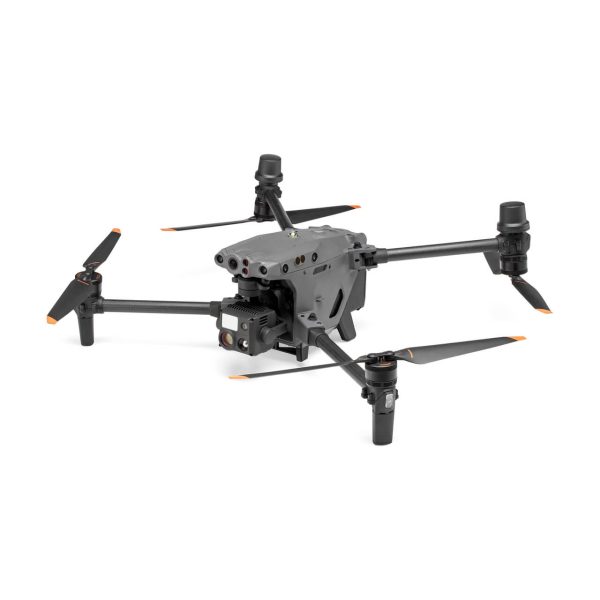

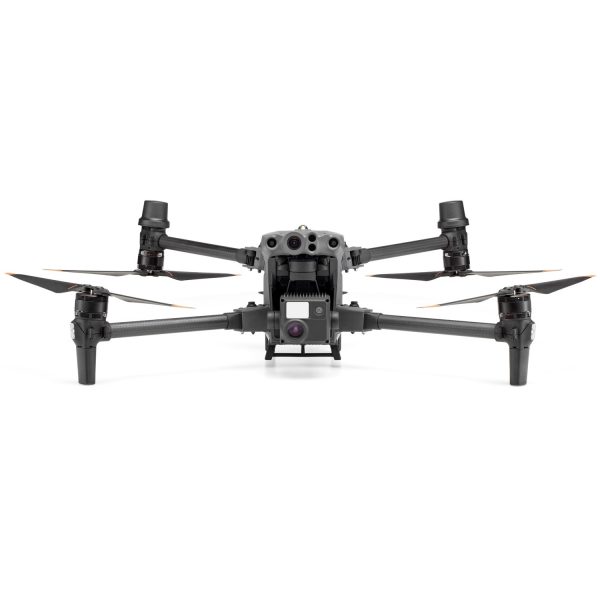

Matrice 30

SPECIFICATION

• Dimensions (unfolded, excl. propellers)

• 470×585×215 mm (L×W×H)

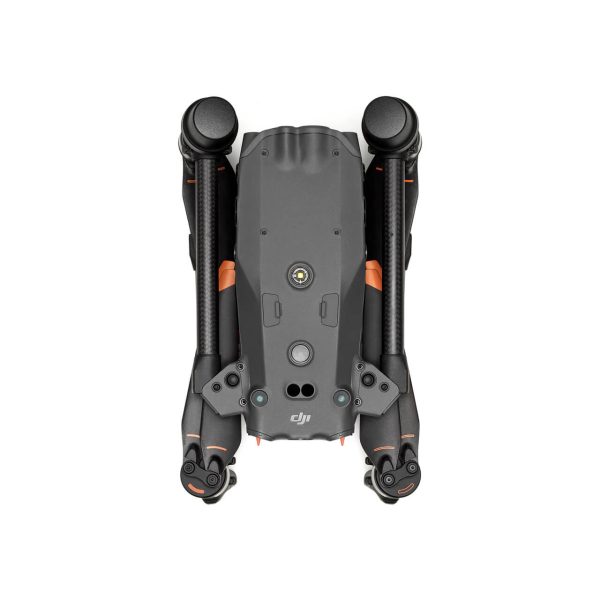

• Dimensions (folded)

• 365×215×195 mm (L×W×H)

• Diagonal Wheelbase

• 668 mm

• Weight (incl. two batteries)

• 3770 ± 10 g

• Max Takeoff Weight

• 4069 g

• Max Takeoff Weight for C2 Certification in EU

• 3998 g

• Operation Frequency

• 2.4000-2.4835 GHz;

  5.725-5.850 GHz

• Transmitter Power (EIRP)

• 2.4 GHz: <33 dBm (FCC);

  <20 dBm (CE/SRRC/MIC)

  5.8 GHz: <14 dBm (CE)

  <33 dBm (FCC/SRRC);

• Hovering Accuracy (windless or breezy)

• Vertical: ±0.1 m (Vision System enabled); ±0.5 m (N-mode with GPS); ±0.1 m (RTK)

  Horizontal: ±0.3 m (Vision System enabled); ±1.5 m (N-mode with GPS); ±0.1 m (RTK)

• RTK Positioning Accuracy (fixed RTK enabled)

• 1 cm+1 ppm (horizontal)

  1.5 cm+1 ppm (vertical)

• Max Angular Velocity

• Pitch: 150°/sec.; Yaw: 100°/sec.

• Max Tilt Angle

• 35° (N-mode and Forward Vision System enabled: 25°)

• Max Ascent/Descent Speed

• 6 m/s,

  5 m/s

• Max Tilt Descent Speed

• 7 m/s

• Max Horizontal Speed

• 23 m/s

• Max Service Ceiling Above Sea Level (without other payload)

• 5,000 m (with 1671 propellers)

  7,000 m (with 1676 propellers)

• Max Wind Resistance

• 12 m/s

• Max Hover Time

• 36 min

• Max Flight Time

• 41 min

• Motor Model

• 3511

• Propeller Model

• 1671

  1676 High Altitude (not included)

• Ingress Protection Rating

• IP55

• GNSS

• GPS+Galileo+BeiDou+GLONASS

  (GLONASS is supported only when RTK module is enabled)

• Operating Temperature

• -20° to 50° C (-4° to 122° F)

Gimbal

• Angular Vibration Range

• ±0.01°

• Controllable Range

• Pan: ±90°

  Tilt: -120° to +45°

• Mechanical Range

• Pan: ±105°

  Tilt: -135° to +60°

  Roll: ±45°

Wide Camera

• Sensor

• 1/2" CMOS, Effective pixels: 12M

• Lens

• DFOV: 84°

  Focal length: 4.5 mm (equivalent: 24 mm)

  Aperture: f/2.8

  Focus: 1 m to ∞

• Exposure Compensation

• ±3 ev (using 1/3 ev as step length)

• ISO Range

• 100-25600

Laser Module

• Wavelength

• 905 nm

• Max Laser Power

• 3.5 mW

• Single Pulse Width

• 6 ns

• Measurement Accuracy

• ± (0.2 m + D×0.15%)

  D is the distance to a vertical surface

• Measuring Range

• 3-1,200 m (0.5×12 m vertical surface with 20% reflectivity)

Vision Systems

• Obstacle Sensing Range

• Forward: 0.6-38 m

  Upward/Downward/Backward/Sideward: 0.5-33 m

• FOV

• 65° (H), 50° (V)

• Operating Environment

• Surfaces with clear patterns and adequate lighting (> 15 lux)

Infrared Sensing Systems

• Obstacle Sensing Range

• 0.1 to 10 m

• FOV

• 30°

• Operating Environment

• Large, diffuse, and reflective obstacles (reflectivity >10%)
