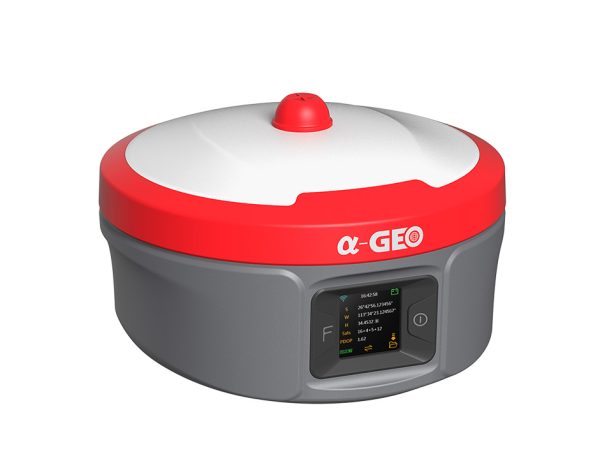

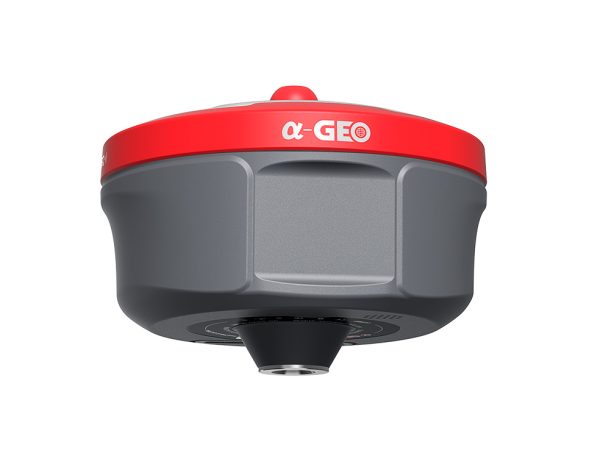

Matrix Ultra-B

MODEL

• Matrix Ultra Ultra UM980 (8D990)

SPECIFICATION

• Satellite signals tracked simultaneously

• GPS: L1 C/A, L2E, L2C, L5

  BeiDou: B1, B2, B3

  BeiDou: B1, B2, B3

  Galileo: E1, E5A, E5B, E5AltBOC, E6

  IRNSS: L5

  QZSS: L1 C/A, L1 SAIF, L2C, L5

  SBAS: L1 C/A, L5

• L-Band

• MSS L-Band: OmniSTAR, Trimble RTX

• Channels

• 336

• Cold start

• <45 s

• Hot start

• <30 s

• RTK Initialization time

• typically <8 seconds

• Initialization Reliability

• >99.99%

• Time accuracy

• <20ms

Positioning accuracy

• RTK Accuracy

• Horizontal: 0.008 m + 1 ppm

  Vertical: 0.015 m + 1 ppm

• Static Survey Accuracy

• Horizontal: 0.25 m + 0.5 ppm

  Vertical: 0.50 m + 0.5 ppm

• Autonomous Accuracy

• Horizontal: 1.00 m + 1 ppm

  Vertical: 1.50 m + 1ppm

• SBAS Accuracy

• Horizontal: 0.5 m + 1 ppm

  Vertical: 0.85 m + 1 ppm

• Laser measurement

• None

• Photogrammetry accuracy

• None

Sensor

• IMU

• Supported, 4D IMU initialization in 3 seconds

• Update rate

• 400Hz

• Accuracy

• <2.5cm within 120°

• Tilt compensation

• 0~120°

Camera

• Visual camera

• None

• AR stakeout camera

• None

• FOV

• None

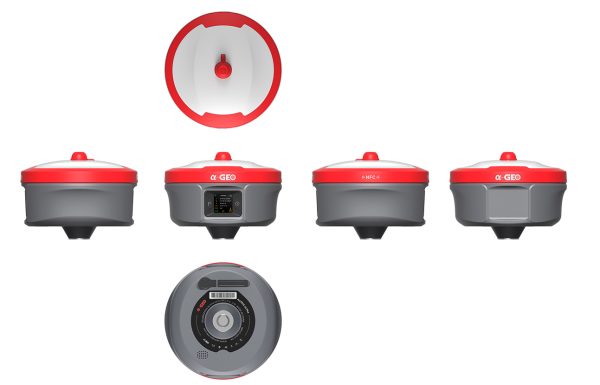

PHYSYCAL

• Material

• Magnesium alloy

• Dimensions

• 149x149x111mm

• Weight

• < 1.2kg

• Operating temperature

• -40℃ ~ +75℃

• Storage temperature

• -55℃ ~ +85℃

• Waterproof/Dustproof

• IP67 standard, protected from 30min immersion to depth of 1m

• Shock

• Survive a 2m pole drop onto concrete

• Vibration

• MIL-STD-810G

• Humidity

• 100% non-condensing

ELECTRYCAL

• Power supply

• 9~24V DC external power input to 5-pin LEMO port, Supports Type-C fast charging

• Battery

• Built-in 7000mAh-7.4V Li-ion battery

• Battery life

• 40hrs Rover Bluetooth mode, 7hrs Base mode (5W),

  48hrs Static mode.

• Battery solution

• 27000mAh (Optional)

27000mAh (Optional)

• I/O interface

• 1* 5-pin LEMO port, power supply, RS232, external radio communication port

  1* USB Type-C port, charging, data download

  1* SIM card slot, Nano SIM

  1* UHF antenna interface

• Internal UHF

• 5W receiver and transmitter, Typical 20km working distance

• Frequency band

• 410MHz ~ 470MHz, supports frequency modification

• Protocols

• Trimtalk450S, Alphatalk15, South, Satel, PCC-EOT

• Cellular network

• Full frequency multi-band 4G modem, supports TDD-L TE/FDD-L TE/WCDMNCDMA2000

• WiFi

• 802.11 b/g standard, access point & client mode, supports accessing to hotspot for correction transmission

• Bluetooth

• Bluetooth 5.2 classical/BLE proprietary dual-mode

• Differential data format

• RTCM2x, RTCM3x, CMR&CMR+, sCMRx

• Differential data format

• RTCM2x, RTCM3x, CMR&CMR+, sCMRx

Data storage

• Memory

• 64GB, supports cyclic storage, with ability to collect almost 4 years raw observation based on 5s interval

User interaction

• Operating system

• Linux OS

• Buttons

• Power key and Functional key

• Display

• 1.3-inch IPS display with 240*240 resolution.

• Voice

• Intelligent voice prompts

• Web UI

• Supports Web UI configration
