Reach RS2+ gets a fixed solution in just seconds and maintains robust performance even in challenging conditions. Centimeter accuracy can be achieved on distances up to 60 km in RTK, and 100 km in PPK mode.

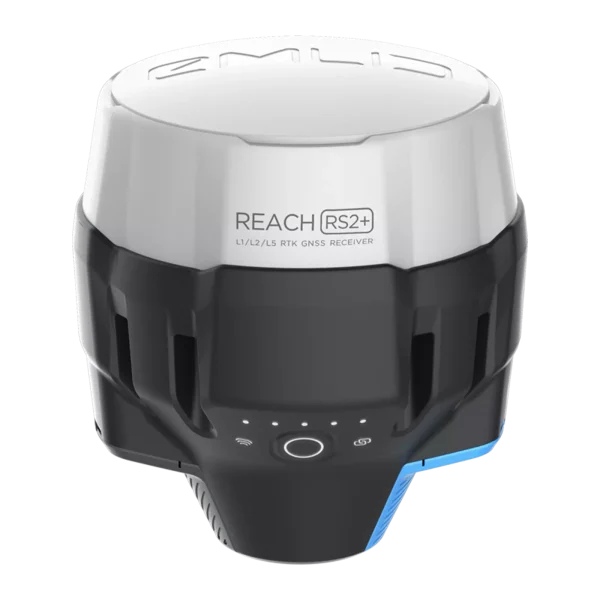

Reach RS2+
SPECIFICATION
- Static
H: 4 mm+0.5 ppm
V: 8mm+1 ppm
- PPK
H: 5 mm+0.5 ppm
V: 10 mm+1 ppm
- RTK
H: 7 mm+1 ppm
V: 14 mm+1 ppm
- Convergence time
~5 s typically
- Signal tracked
GPS/QZSS L1C/A, L2C,
GLONASS L1OF, L2OF,
BeiDou B1I, B2I,
Galileo E1-B/C, E5b
- Number of channels
184
- Update rates
Up to 10 Hz
- IMU
9DOF

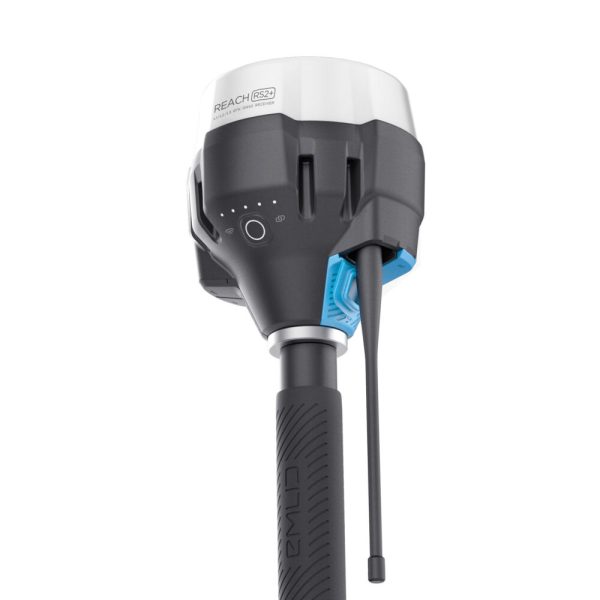

UHF LoRa radio
- Frequency range
868/915 MHz
- Power
0.1 W
- Distance
Up to 8 km
LTE modem
- Regions
Global
- Bands
FDD-LTE: 1, 2, 3, 4, 5, 7,8, 12,13, 18, 19,20, 26, 28, 66
TD-LTE: 38, 40, 41
UMTS (WCDMA/FDD): 1, 3,2, 4, 5, 6, 8, 19
Quad-Band, 850/1900/900/1800 MHz
- SIM card
Nano-SIM
CONNECTIVITY
- Wi -Fi
802.11 b/g/n
- Bluetooth
4.0/2.1 EDR
- Ports
RS-232, USB Type-C
Data Protocols
- Corrections
NTRIP, RTCM3
- Position output
NMEA, LLH/XYZ
- Data logging
RINEX at update rate up to 10 Hz
- Internal storage
16 GB
MECHANICAL
- Dimensions
126x126x142 mm
- Weight
950 g
- Temperature
-20...+65 °C
- Ingress protection
IP67 water and dustproof
ELECTRICAL
- Autonomy
16 hrs as LTE RTK rover
- Battery
LiFePO4 6400 mAh, 6.4 V
- External power input
6–40 V
- Charging
USB-C 5 V 2 A
