The IMU-based tilt compensation in Reach RS3 enables you to make measurements with up to 60 degrees of tilt while still staying within 20 mm of accuracy.
Reach RS3 continuously measures and corrects tilt in real-time to keep you on target.
Tilt initialization takes about 20 meters of walking or 10-20 seconds of tilting. Usually ready on the way from the car.

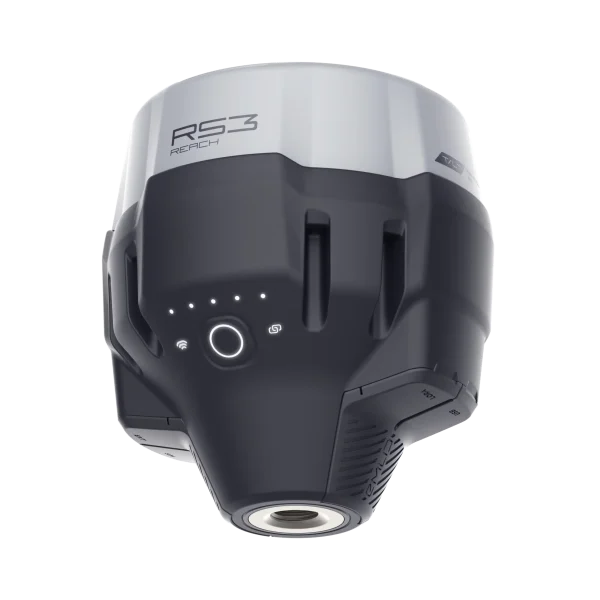

REACH RS3
SPECIFICATION
- Static
H: 4 mm+0.5 ppm
V: 8mm+1 ppm
- PPK
H: 5 mm+0.5 ppm
V: 10 mm+1 ppm
- RTK
H: 7 mm+1 ppm
V: 14 mm+1 ppm
- Convergence time
~5 s typically
- Signal tracked
GPS/QZSS L1C/A, L2C,
GLONASS L1OF, L2OF,
BeiDou B1I, B2I,
Galileo E1-B/C, E5b
- Number of channels
184
- Update rates
Up to 10 Hz
- IMU
6DOF
LoRa
- Frequency range
868/915 MHz
- Power
0.1 W
- Distance
Up to 8 km
UHF
- Frequency range
410–470 MHz
- Protocols
TRIMTALK 450S
- Modulation type
GMSK
LTE modem
- Regions
Global
- Bands
FDD-LTE: 1, 2, 3, 4, 5, 7,8, 12,13, 18, 19,20, 26, 28, 66
TD-LTE: 38, 40, 41
UMTS (WCDMA/FDD): 1, 3,2, 4, 5, 6, 8, 19
Quad-Band, 850/1900/900/1800 MHz
- SIM card
Nano-SIM
CONNECTIVITY
- Wi -Fi
802.11 b/g/n
- Bluetooth
4.0/2.1 EDR
- Ports
RS-232, USB Type-C
Data
- Corrections
NTRIP, RTCM3
- Position output
NMEA, LLH/XYZ
- Data logging
RINEX at update rate up to 10 Hz
- Internal storage
16 GB
MECHANICAL
- Dimensions
126x126x142 mm
- Weight
950 g
- Temperature
-20...+65 °C
- Ingress protection
IP67 water and dustproof
ELECTRICAL
- Autonomy
18 hrs as an RTK rover with tilt 22 hrs of logging
- Battery
Li-Ion 5200 mAh, 7.2 V37.44 Wh
- Charging
USB Type-C 5 V, 3 A
