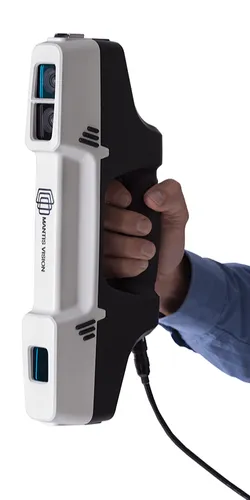

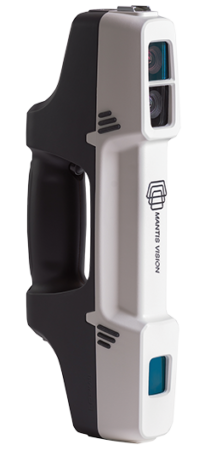

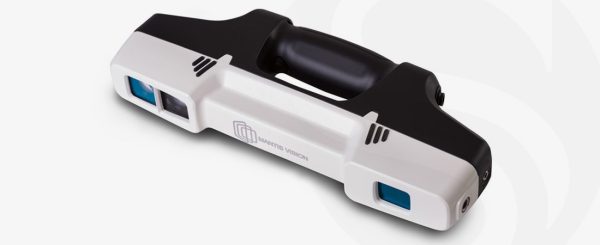

STONEX F6 is the market leader 3D handheld scanner for fast scanning of big objects and large areas from short to far ranges. Based on a patent algorithm of innovative encoding F6 provides superb quality of data making it the ultimate device for scanning complex scenes within seconds. The F6 is operated by Echo, an advanced and easy-to-use integrated software with high-end features such as:
- Advanced scanning modes with real time feedback
- Powerful 3D data editing tools
- Data quality for controlling distances and accuracies
- Advanced meshing with full color projection
F6
SPECIFICATION
- Accuracy
0.2% -0.1% upon scanning distance
- XY point density
5mrad
- Low noise level
less than 0.5mm@1meter
- Eye safety
Class 1
- Ambient lighting
From complete darkness to daylight
- Depth of field
4.5-0.5m
- Linear field of view
HxW 510 x 670mm, closest range
- Linear field of view
HxW 4585 x 6070mm, furthest range
- Angular field of view
HxW 54 x 68°
- RGB camera resolution
1.3MPix
- Exposure time
0.040.005 s
- Data acquisition speed
640,000 points/s
- Dimensions, HxDxW
32 x 12 x 4.5 cm
- Weight
1kg
- Power consumption
Internal battery
- Calibration
No special equipment required
- Working temperature
-10° to +50° / 14' to 122'F
SOFTWARE SPECIFICATIONS
- Multi-core processing
Yes
- Support OS
Windows 8/10
- Output formats
PTS
ASCII
PLY
E57
STL
- Interface
USB 2.0
