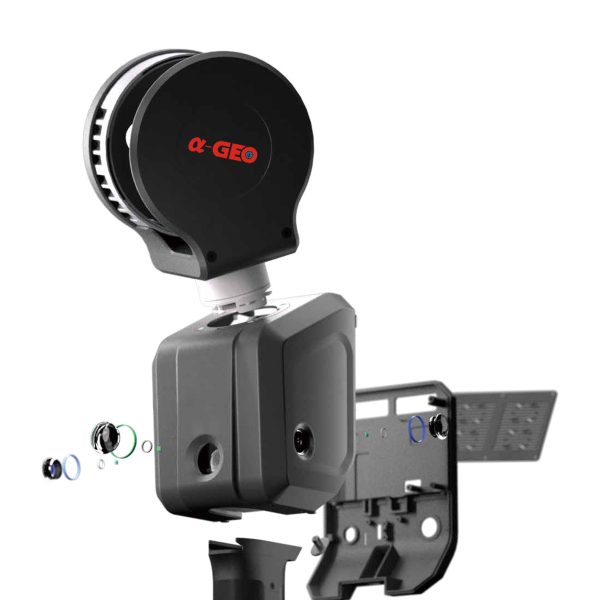

Highly integrated LIDAR, panoramic camera, high-precision IMU module and high-performance computing unit can achieve 360° panoramic scanning without external equipment. 120m measuring distance can cover a wider scanning range, making scanning job more efficient.
Generating true-color point clouds in real-time with rich details, and delicate depiction of the real world.
Built-in self-developed core algorithms, fusion of laser, vision, and gnss module, that ensures excellent performance in complex/degraded scenes such as open spaces, tunnels, and multiple parts.

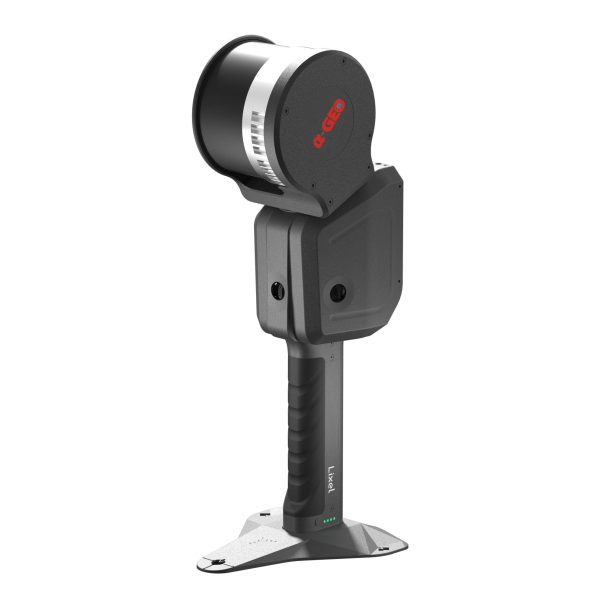

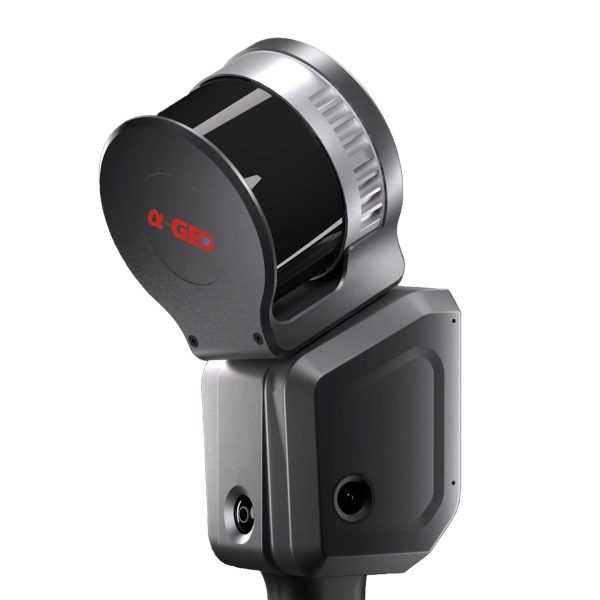

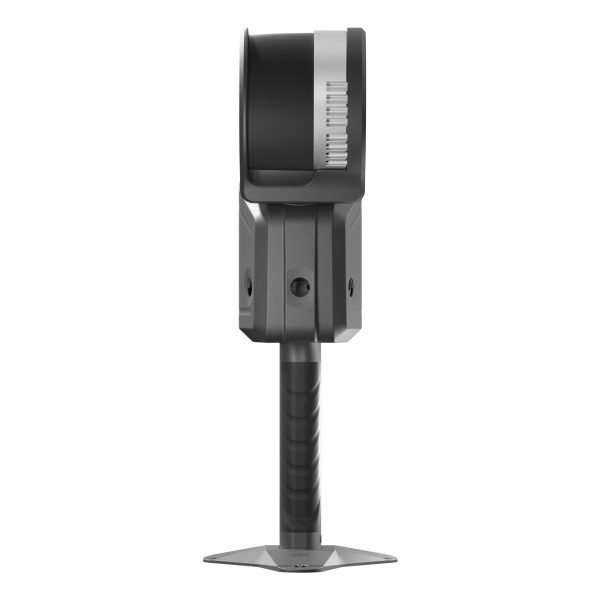

Lixel L2
SPECIFICATION
- Working range
0.5m~120m
- Laser class
Class 1/905nm
- Laser FOV
360°x270°
- Processing mode
Real-time/Post-processing
- Scanning speed
320,000 points/second
- Operating temperature
-20℃~+50℃
- Power consumption
<30W
- Storage capacity
1TB
- Operating time
1.5 hrs
- Protection level
IP54
- Power supply
Fast-lock battery/external power
- Dimensions(main body)
138.45mm(L)x90mm(W)x227.32mm(H)
- Weight
<1.6kg
- Visual-aided positioning
Supports
- Real-time color point cloud
Supports
- 5G real-time transmission
Supports
- Resume scanning from break point
Supports
- Point cloud format
*.las
- Relative accuracy
+1.2cm
- Absolute accuracy
≤3cm
- Repeat accuracy
≤2cm
- Battery capacity
46.8wh
- RTK frequency
BDS: B1l, B2l, B3l
GPS: L1C/A, L2P(Y), L2C, L5
GLONASS:L1, L2
GALILEO: E1, E5a, E5b
