Easy leveling, plumbing points, and staking out: Zoom3D’s unique and user friendly onboard software comes with a full set of features that will speed up your interior applications. With the best price to performance ratio, the Zoom3D will provide you with fast and accurate results that can easily be exported to the most common data formats.

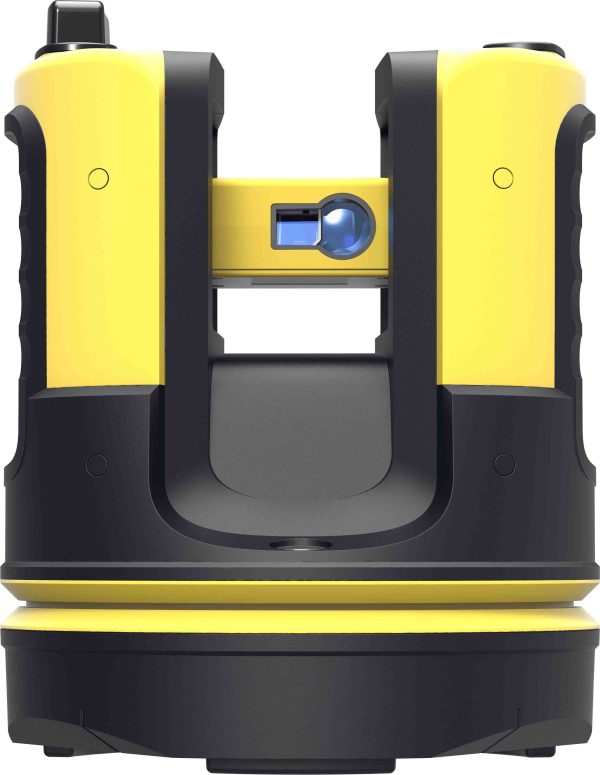

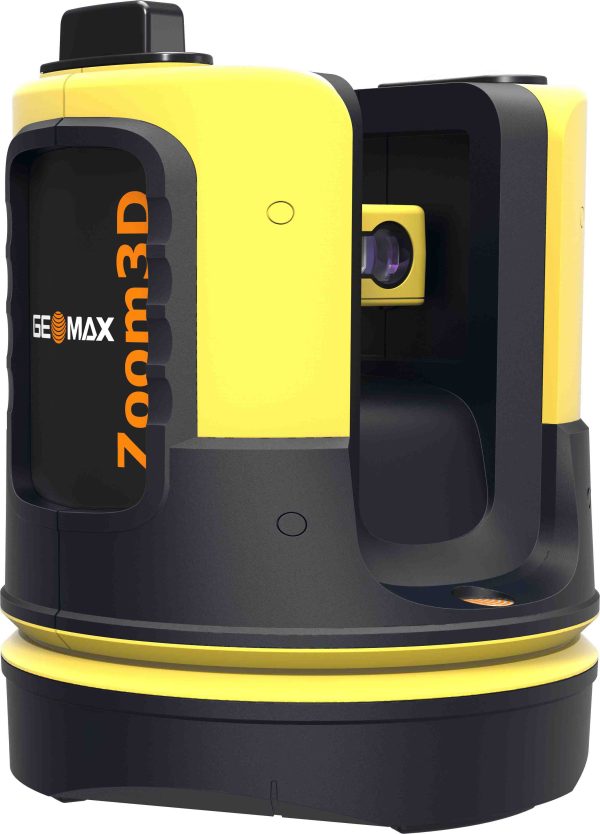

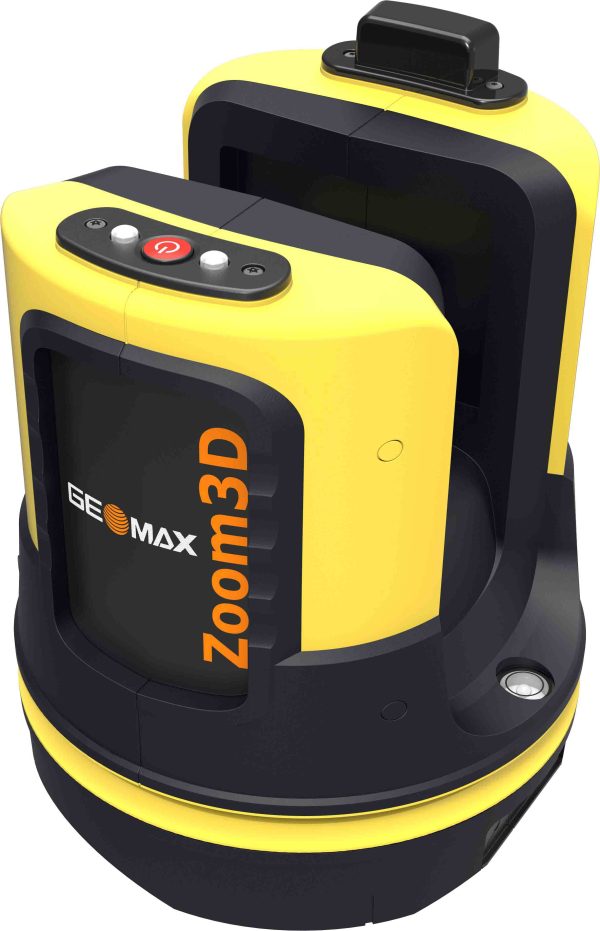

Zoom3D
SPECIFICATION
- Measurement range
Horizontal 360°
Vertical 250°
- Accuracy
5˝, equates to 1.2 mm ( 3/64 in) @ 50 m (150 ft)
Laser Distance Metre
- Type
Coaxial, visible red laser
- Measurement range
0.5 (1.8 ft) - 50 m (150 ft)
- Laser class
2
- Laser type
650 nm; < 1mW
- ø laser dot (at distance)
10 m: -7 mm x 7 mm
30 m: ~9 mm x 15 mm
Tie Distance Accuracy (3D)
- Angle and distance combination
@10 m @30 m @50 m
Approx. 1mm 2mm 4mm
- Accuracy
5˝, equates to 1.2 mm @ 50 m
Tilt sensor
- Self-leveling range
±3°
- Accuracy
10˝, equates to 2.5 mm ( 3/32 in) to 50m (150 ft)
Operation
- Keys/user interface
1 on / off button
- Interfaces
USB type B, power supply power pack
Digital Point Finder
- Zoom (magnification) / Field of view (@10 m)
1 x / 3.40 m (11.16 ft) x 2.14 m (7.02 ft)
2x / 1.70 m (5.58 ft) x 1.07 m ( 3.51 ft)
4x / 0.85m ( 2.79 ft) x 0.54 m (1.77 ft)
8x / 0.42 m (1.38 ft) x 0.27 m (.89 ft)
Circular Level Setting
- Accuracy
1°/mm
Communication
- Cable
USB: Micro-B USB and type a; WLAN
- Wireless
50 m (150 ft) range
Power Supply
- Internal battery
Li-Ion battery 14.4 V / 63 Wh
- External power
24 VDC / 2.5A, charging time 8h
- Operating time
24 VDC / 2.5A, charging time 8h
Physical Specifications
- Dimensions
Height 215.5 mm ( 8 1/2 in)
ø 186.6 mm ( 7 11/32 in)
- Weight
2.8 kg ( 6.17 lbs)
- Operating temp.
-10C (14 F) to 50C (122 F)
- Storage temp.
-25 C (-13F) to 70C (158 F)
- Protection class
IP54 (IEC 60529)
- Attachment
5 ⁄ 8” thread
Attachment
- Range
50 m ( 150ft)
- Communication
Infrared (IR)
- Battery
1 AA. 1.5 V
