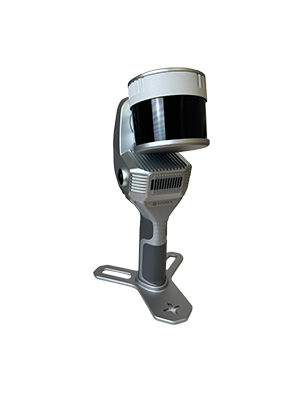

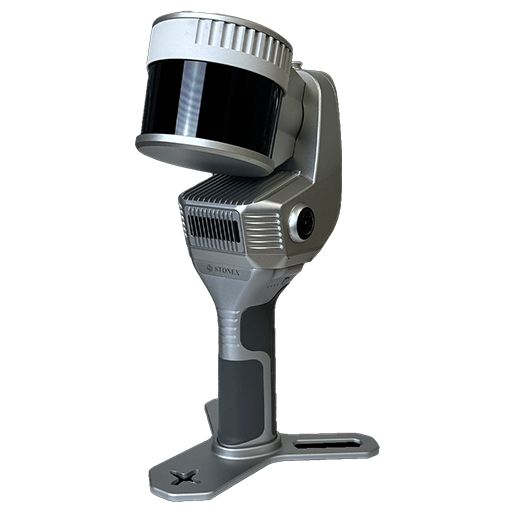

X200GO

SPECIFICATION

• Sensor Model

• Hesai XT32M2X

• Max Range

• 300 m

• Min Range

• 0.5 m

• Return number

• 3

• Scanning Point Frequency

• Single Ret.: 640.000 pts/s

  Dual Ret.: 1.280.000 pts/s

  Triple Ret.: 1.920.000 pts/s

• Field of view

• 360° x 270°

• Laser Class

• 1

• Channels

• 32

• Wavelength

• 905nm

COLOR CAMERA

• N° of pixels

• 24 Mpx (2 cameras, 12 MPx each)

• Diagonal FOV

• 210°

• Focal length

• 1.26 mm

• Resolution

• 4000x3000 px

• Sensor size

• 1/2.3 inch

• Pixel size

• 1.55 μm

GNSS RECEIVER

• Satellites Signal

• GPS L1 C/A/L2P(Y)/L2C/L5

  GLONASS G1/G2

  Galileo E1/E5A/E5B

  BDS B1I/B2I/B3I

  QZSS L1/L2/L5

• DGPS (RMS)

• Horizon 0.4 m+1 ppm

  Vertical 0.8 m+1 ppm

• RTK (RMS)

• Horizon 0.8cm+1ppm

  Vertical 1.5cm+1ppm

• Speed accuracy (RMS)

• 0.03m/s

SYSTEM

• Relative accuracy

• Up to 6mm

• Global accuracy

• Up to 2cm

  5cm on UAV platform1

• Control point support

• Ground & wall

• Data storage

• 512GB SSD

• Communication

• Wi-fi, Bluetooth, USB type-c, Lemo connector

• Operating mode

• SLAM & X-Whizz modes, Real-time visualisation, colouring and orientation

• Processing mode

• Real-time processing Post-processing with GOpost

ELECTRICAL SPECIFICATION

• Power consumption

• 26W

• System supply voltage

• 20V

• Operating time

• 1.2 h (single battery)

• External power

• USB type-c

• Battery input voltage

• 5-20V

• Battery output voltage

• 10.8V

• Battery capacity

• 3000mAh

PHYSICAL SPECIFICATION

• Weight

• 1.4 kg (without battery)

  1.9 kg (with battery)

• Size

• 403.6 mm x 173.8mm x 170mm

• Operating temperature

• -20°C to +50°C (-4°F to 122°F)

• Operating humidity

• <95%

• Waterproof/Dustproof

• IP54
