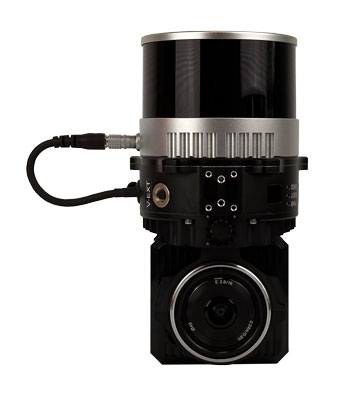

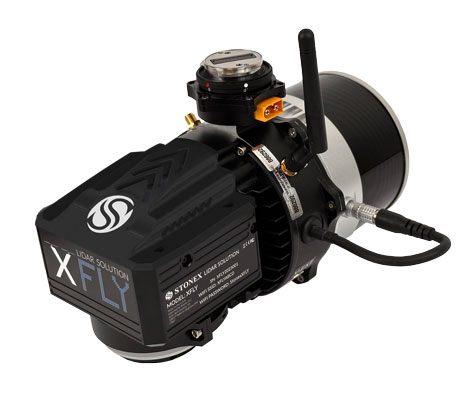

XFLY

33,500.0044,000.00

In Stock (VAT not included)
Highlights:

XFLY series integrates high performance Inertial Navigation System with camera and LiDAR for point cloud generation. Different customer’s need can be met by the choice of Hesai LiDAR XFLY120, XFLY300 or other sensors.

Clear

SKU: N/A Category:
Description

The processing platform contains a Wi-Fi interface, an embedded cellular modem for RTCM corrections, data logging software and a gigabit Ethernet network. Equipped with a high-performance INS, it delivers clean point clouds even at high AGL. As a small, lightweight and low-power system, it allows the user to fly longer, adapting to the needs of any project. The post-processing software provides fully automatic point cloud generation.


XFLY

SPECIFICATION

  • System Vertical Accuracy (5m/s @50m)
  • ±3cm

  • Recommended AGL
  • 50-120m

  • Weight
  • 1.23kg (with camera)

    0.87kg (no camera)

  • Dimensions
  • 20.8 x 14.8 x 15.2 cm

  • Max Flight Time (DJI M300)
  • 35 Minutes

  • External Storage
  • 256GB USB Included

LIDAR

  • Sensor*
  • Hesai XT-32M2X

  • Range
  • 0.5-300m

    80m @10% (all channels)

  • Range Accuracy
  • ±1cm

  • FOV (Horizontal)
  • 360°

  • FOV (Vertical)
  • 40.3°

  • Scan Angle (Vertical)
  • -20.8° to 19.5°

  • Beam Divergence
  • 0.21° (H), 0.047° (V) 1

  • Channels
  • 32

  • Returns
  • 3

  • Pulse Rate
  • 640k/s (single return)

    1280k/s (double return)

    1920k/s (triple return)

GPS-AIDED INS

  • Constellations
  • GPS, GLONASS, BEIDOU, GALILEO

  • Output Rates
  • Up to 200HZ (INS)

    Up to 2000HZ (IMU)

  • Pitch/Roll Accuracy
  • 0.03 (RTK) 2

    0.006 (PPK)

  • Heading Accuracy
  • 0.15 (RTK) 2,3

    0,03 (PPK)

  • Velocity Accuracy
  • <0.03 m/s

  • Position Accuracy
  • 1cm+1ppm (RTK)

    0.5cm (PPK)

CAMERA

  • Model
  • ADTI 24MP RGB

  • Lens
  • Sony E-Mount 16mm, 70° FOV

  • Max Trigger Rate
  • 2 seconds
