X120GO

22,500.00

In Stock (VAT not included)
Highlights:

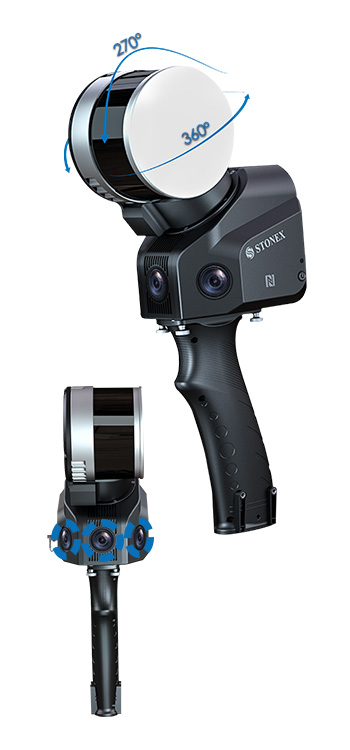

X120GO system has a 360° rotating head, which can generate a 360°x270° point cloud coverage. Combined with the industry-level SLAM algorithm, it can obtain high-precision three-dimensional point cloud data of the surrounding environment without light and GPS. Equipped with three 5MP cameras to generate a 200°FOV horizontal and 100°FOV vertical, capable of synchronously obtaining texture information and producing colour point clouds and partial panoramic images.

Category:
Description

The system has a 360° rotating head, which can generate a 360°x270° point cloud coverage. Combined with the industry-level SLAM algorithm, it can obtain high-precision three-dimensional point cloud data of the surrounding environment without light and GPS. Equipped with three 5MP cameras to generate a 200°FOV horizontal and 100°FOV vertical, capable of synchronously obtaining texture information and producing colour point clouds and partial panoramic images. X120GO can use GOapp to check and manage projects which will be updated and displayed synchronously. Real-time SLAM mapping and preview can be achieved via GOapp. GOpost can perform post-processing of collected data, generate high-precision and high-definition color point clouds, produce partial panoramic images, display point cloud and perform optimization processing. X120GO has an integrated structure design with a built-in control and storage system and built-in replaceable lithium batteries. Once pressed the start button, X120GO can start operations immediately, making data acquisition more efficient and convenient. You can manage your point clouds in the office with Cube-3d and Stonex Reconstructor Software or, if you need something different, you can use PointCab. Thanks to the collaboration between Stonex and PointCab, you can process X120GO data with it.

X120GO

SPECIFICATION

  • Max Range
  • 120 m

  • Min Range
  • 0.5 m

  • Relative Accuracy
  • Up to 6 mm

  • Vertical Resolution
  • 16 channels

  • Scanning Point Frequency
  • 320.000 pts/s

  • Field of View
  • 360°x270°

  • Laser Class
  • Class 1

  • Echo Strength
  • 8 bits

CAMERA

  • N° of Camera
  • 3 (5 MP each - total 15 MP)

  • Cameras FOV
  • 200°x100°

  • Image
  • Semi-spherical

  • RGB Point Cloud
  • Supported

SYSTEM

  • Memory
  • 32GB (expandable)

  • Operation Mode
  • Realtime visualization (Android2)

  • Communication
  • NFC

    WI-FI

  • Postprocessing
  • GOpost sofware

ELECTRICAL SPECIFICATION

  • Power Consumption
  • 25W

  • Supply Voltage
  • 20-30V

  • Operating Time
  • 2.5h (1 battery set - 4 batteries)

  • Capacity
  • 3350mAh x4

PHYSICAL SPECIFICATION

  • Weight
  • 1,6 kg (without battery)

  • Size
  • 372 mm x 163 mm x 106 mm

  • Operating Temperature
  • -10°C to +45°C (14°F to 113°F)

  • Operating Humidity
  • <85% RH

  • Waterproof/Dustproof
  • IP54
