A 12 MP visible-light camera provides texture information, while a visual camera guarantees stronger real time preview with GOapp. Mapping results are generated immediately inside the scanner, right after scanning: choose if you want to color them and improve their accuracy, postprocessing with GOpost software.

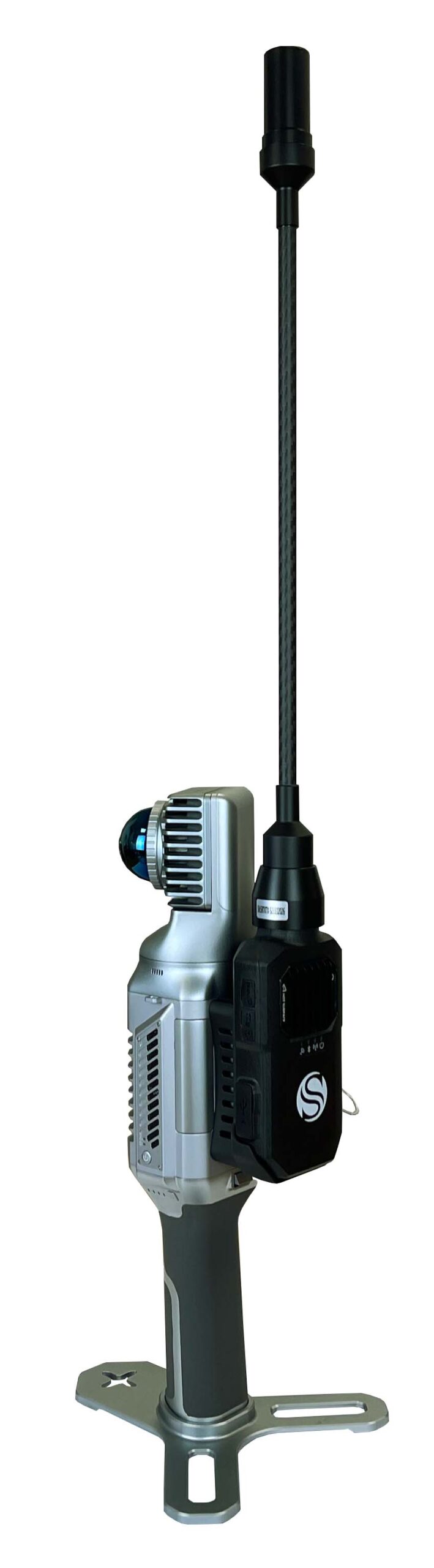

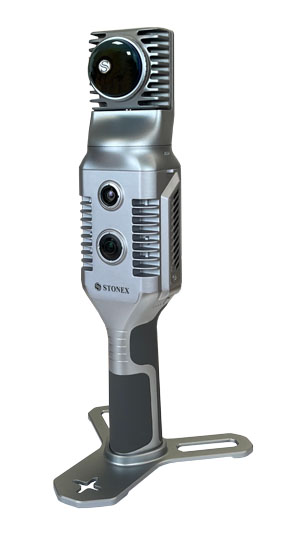

X70GO SLAM Laser Scanner
SPECIFICATION
- Max Range
70 m @80%
- Min Range
0.1 m
- Scanning Point Frequency
200.000 pts/s
- Field of view
360°H, -7~52°V
- Laser Class
Class 1
- Wavelength
905nm
- Frame rate
10 Hz
COLOR CAMERA
- N° of pixels
12 Mpx
- Diagonal FOV
210°
- Focal length
1.26 mm
- Resolution
4000x3000 px
- Sensor size
1 inch
- Pixel size
1.55 μm
VISUAL CAMERA
- N° of pixels
12 Mpx
- Diagonal FOV
100°
- Focal length
3.24 mm
- Resolution
4000x3000 px
- Sensor size
1 inch
- Pixel size
1.55 μm
SYSTEM
- Relative accuracy
6 mm
- Control point support
Ground & wall
- Data storage
512GB SSD
- Communication
Wi-fi, USB type-c, LEMO
- Operating mode
SLAM mode
Static mode (X-Whizz)
- Processing mode
Real time processing
Post-processing with GOpost
ELECTRICAL SPECIFICATION
- Power consumption
20W
- System supply voltage
20V
- Operating time
1.5 h (single battery)
- Battery input voltage
5-20V
- Battery output voltage
10.8V
- Battery capacity
3000mAh
PHYSICAL SPECIFICATION
- Weight
925 g (Without battery)
1450 g (With battery)
- Size
364.5 mm x 173.8 mm x 170 mm
- Operating temperature
-20°C to +50°C (-4°F to 122°F)
- Storage temperature
-40°C to +70°C (-40°F to 158°F)
- Operating humidity
<95%
- Waterproof/Dustproof
IP54
