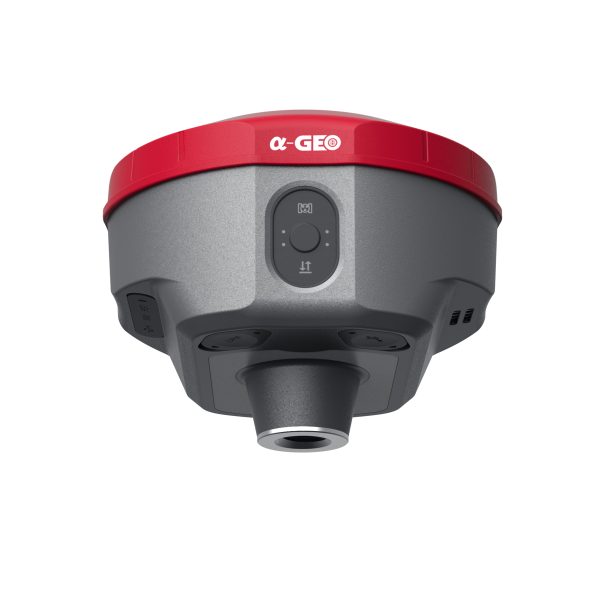

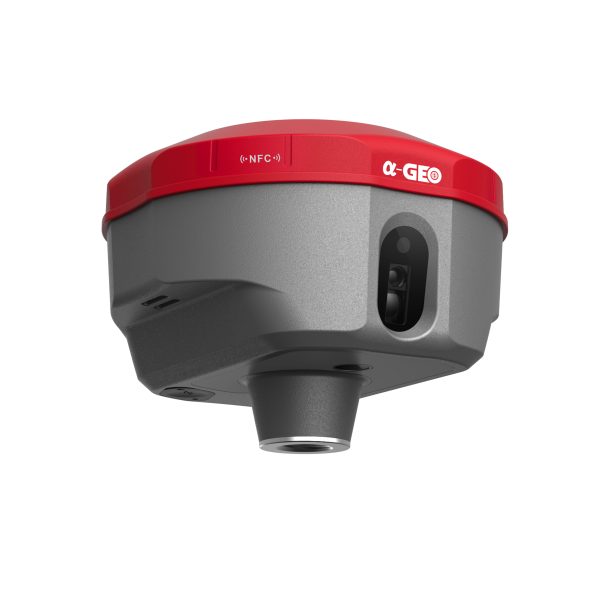

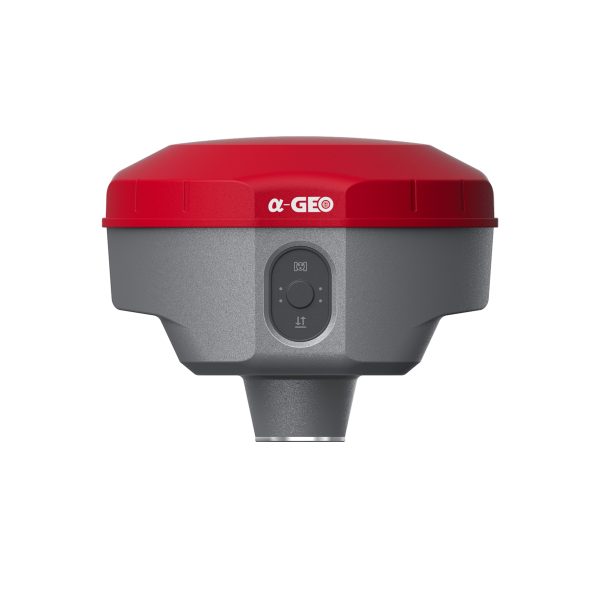

Matrix II

SPECIFICATION

• Satellite signals tracked simultaneously

• GPS: L1C/A, L1C, L2P(Y), L2C, L5

  GLONASS: L1, L2,L3

  BEIDOU: B11, B21, B31, B1C, B2a, B2b

  GALILEO: E1, E5a, E5b,E6 QZSS: L1, L2, L5, L6

  SBAS: L1, L5

  IRNSS: L5

• Channels

• 1408 tracking Channels

• Cold start

• <60 s

• Hot start

• <15 s

• Positioning output rate

• 1Hz - 20Hz

• Signal Reacquisition

• <1s

• RTK Initialization time

• <10s

• Initialization Reliability

• >99.99%

• Time accuracy

• 20 ns

Positioning

• Code differential GNSS positioning

• Horizontal: 0.25 m + 1 ppm RMS

  Vertical: 0.50 m + 1 ppm RMS

  SBAS differential positioning accuracy: typically <5m 3DRMS

• Static GNSS surveying

• Horizontal: 2.5 mm + 0.5 ppm RMS

  Vertical: 5 mm + 0.5 ppm RMS

Real Time Kinematic Surveying

• Single Baseline < 30 KM

• Horizontal: 8 mm + 1 ppm RMS

  Vertical: 15 mm + 1ppm RMS

• Network RTK

• Horizontal: 8 mm + 0.5 ppm

  RMS Vertical: 15 mm + 0.5 ppm RMS

• Laser survey

• ±1cm+5mm/m (Tilt height less than 30°)

PHYSYCAL

• Material

• Magnesium alloy

• Dimensions

• 120mm*72mm (without bottom connector 20mm)

• Weight

• 0.76kg

• Operating temperature

• -40°C to +75°C

• Storage temperature

• -55°C to +85°C

• Protection IP

• IP67 dust proof, protected from 30min immersion to depth of 1m

• Shock

• Survive a 2m pole drop onto concrete

• Vibration

• MIL-STD-810G

• Humidity

• 100%, condensing

ELECTRYCAL

• Power

• 9~24 V DC external power input on 5 pin LEMO port

• Support USB Type-C fast charging

• Internal 7000mAh-7.4V lithium-ion battery

• Battery Life

• Rover Mode: 12 hours

  Base Mode: 7 hours

  Static Mode: 15 hours

I/O interface

• LEMO port (5pin)

• Supports power input, serial port control, and external radio communication

• USB Type-C port

• Data download / Charging

• Sim card slot

• Supports Nano-SIM

• Antenna port

• UHF antenna interface

Radio modem

• Transmit power

• 1/1.5w switchable

• Frequency band

• 410MHz-470MHz; supports to set the frequency

• Protocols

• TrimTalk450s, SOUTH, Satel,PCC-EOT

Cellular

• Integrated full frequency multi band 4G modem, supports WCDMA/CDMA2000/TDD-LTE/FDD-LTE

WIFI

• 802.11 b/g standard, access point & client mode, supports access to hotspot for correction transmission

Bluetooth

• Bluetooth 5.2 Classical/BLE Proprietary double-mode

Data format

• RTCM2X, RTCM3x, CMR & CMR+, SCMRX

• RINEX, NMEA outputs

Storage

• 64GB internal memory, supports cyclic storage; with ability to collect over one year raw observation based on 5 seconds interval

Camera

• AR

• 5M high-definition camera with large viewing angle and support for live scene lofting

• Laser assisted

• 5M high-definition camera, large viewing angle, auxiliary laser measurement and aiming
