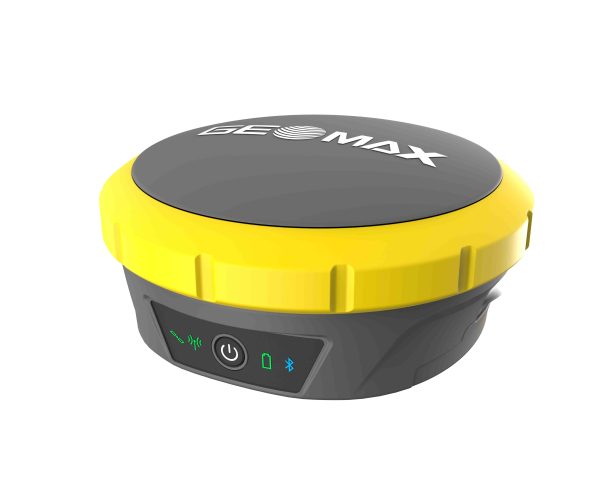

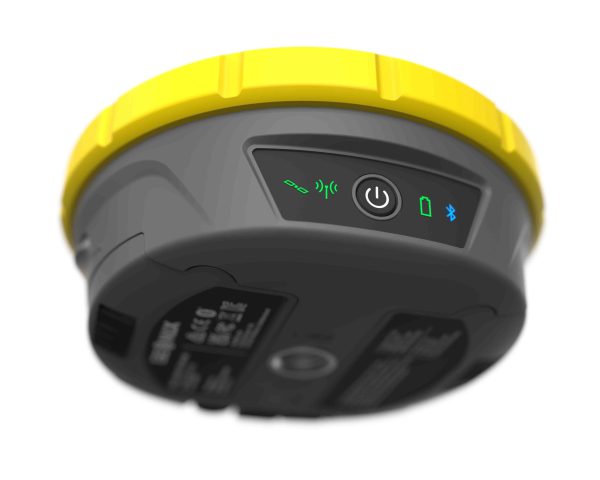

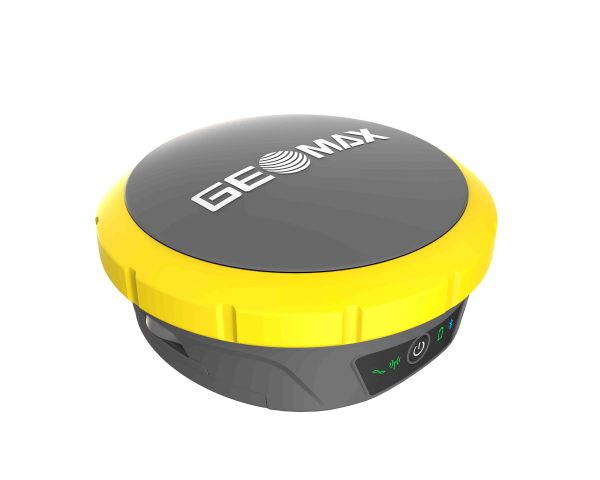

Zenith60

SPECIFICATION

VARIANTS

• GeoMax Zenith60 LTE

• 4G LTE

• GeoMax Zenith60 LTE-UHF

• 4G LTE

  UHF

• GeoMax Zenith60 LTE-IMU

• 4G LTE

  TILT COMPENSATION

• GeoMax Zenith60 LTE-UHF-IMU

• 4G LTE

  UHF

  TILT COMPENSATION

RECEIVER SPECIFICATIONS

• Reliability

• 99.99%

• Measurement Engine

• NovAtel OEM7, 555 channels, multi-frequency, multi-constellation

• GPS tracking

• L1 C/A, L1C, L2C, L2P, L5

• GLONASS tracking

• L1 C/A, L2 C/A, L2P, L3

• BeiDou tracking

• B1l, B1C, B2l, B2a, B2b, B3l

• Galileo tracking

• E1, E5a, E5b, AltBOC, E6

• QZSS tracking

• L1 C/A, L1C, L2C, L5, L6

• NavIC

• L5

• SBAS (EGNOS, WAAS, MSAS, GAGAN)

• L1, L5

• Precise Point Positioning (PPP)

• TerraStar C Pro, L-Band (opt)

• Positioning rate

• 5Hz, 20Hz (opt)

• Time for Initialization

• Typically 4s

QUALITY MODE

• RTK modes

• Selectable; ExtraSafe, Standard

• Tilt Compensation

• Calibration-free, Resistant to magnetic interferences

COMMUNICATION

• 4G LTE module

• RTCM 2.1, 2.3, 3.0, 3.1, 3.2, 3.3, 3.4,

  CMR, CMR+, RTCA, NOVATELX

• RTK data protocols

• QUECTEL EG25-G LTE FDD,

  LTE TDD, UMTS, GSM

• NMEA Output

• NMEA v3.1, NMEA v4.1

• UHF radio module

• SATEL TR4+, 500mW, 1000mW transceiver, 403–473 MHz; (opt)

• Bluetooth®

• 2.1 +EDR, V5.0 QR-iConnect functionality

• WLAN

• 802.11 a/ac/b/g/n Hotspot / client mode

• TNC connector

• UHF antenna

• Communication port

• USB, serial & power

RECEIVER ACCURACY & PERFORMANCE

• RTK

• Hz: 8 mm + 1 ppm (rms)

  V: 15 mm + 1 ppm (rms)

• Network RTK

• Hz: 8 mm + 0.5 ppm (rms)

  V: 15 mm + 0.5 ppm (rms)

• Static

• Hz: 3 mm + 0.5 ppm (rms)

  V: 5 mm + 0.5 ppm (rms)

• Static long

• Hz: 3 mm + 0.1 ppm (rms)

  V: 3.5 mm + 0.4 ppm (rms)

• Code differential

• Hz: 0.25 m (rms)

  V: 0.50 m (rms)

• Tilt compensated real-time kinematic

• Additional Hz uncertainty 2 cm up to 30° tilt

INTERFACES

• Keyboard

• On/off button

• LED status indicators

• Position, RTK, Power, Bluetooth®

• Data recording

• Dual; microSD card and 8 GB internal memory

• GSM/TCP/IP

• Removable SIM card

POWER SUPPLY

• Two internal batteries

• Hot-swappable, Li-Ion 3.4 Ah / 7.2 V

• Operating time

• 12.5 h in static / 11 h in rover mode

• External power

• 9 V to 28 V, LEMO® plug

PHYSICAL SPECIFICATIONS

• Dimensions

• Height 75 mm, ø 166.8 mm

• Weight

• 1.14 kg without batteries

• Operating temp.

• – 40°C to 65°C

• Environmental protection

• IP68 (IEC 60529)

  Withstands powerful jets and temp. immersion under water

  MIL-STD-810G 1 506.6 & 1 512.6

  Fully dust tight

  MIL-STD-810G 1 510.6

• Humidity

• MIL-STD-810H 1 507.6

• Vibration

• Mechanical stress resistant according to ISO 9022-36-05

• Shock

• Withstands 2 m drop onto hard surface
