In the incredibly compact design, Bluetooth and Wi-Fi modules allow for always reliable data flow to the controller, while the integrated UHF TX/RX radio makes the S900+ the perfect system for a GNSS Base + Rover. The S900+ is also equipped with optional IMU technology. Quick initialization, tilt up to 60° and corrected coordinates of a point with a single click.

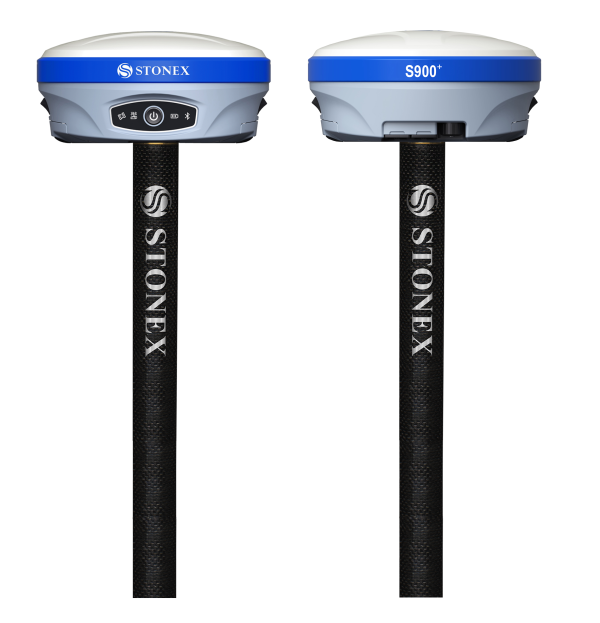

S900+
SPECIFICATION
- Satellite signals tracked
GPS: L1 C/A, L1C, L2P, L2C, L5
GLONASS: L1, L2, L31
BEIDOU: B1I, B2I, B3I, B1C, B2a, B2b
GALILEO: E1, E5a, E5b, E6
QZSS: L1, L2, L5
IRNSS: L51
SBAS
- PPP
B2b PPP, HAS
- Channels
1408
- Position Rate
Up to 20Hz
- Signal Reacquisition
< 1 s
- RTK Signal Initialization2
2 to 4 seconds
- Hot Start
Typically < 15 s
- Initialization Reliability
> 99.9 %
- Internal Memory
8 GB
- OS
Linux
- Micro SD Card
Expansion slot up to 32 GB
- Tilt sensor
IMU and E-bubble (optional)3
STATIC GNSS SURVEYING
- High Precision Static Horizontal
2.5 mm + 0.1 ppm RMS
- High Precision Static Vertical
3.5 mm + 0.4 ppm RMS
- Static and Fast Static Horizontal
3 mm + 0.5 ppm RMS
- Static and Fast Static Vertical
5 mm + 0.5 ppm RMS
CODE DIFFERENTIAL POSITIONING
- Accuracy
0.40 m RMS
SBAS POSITIONING
- Accuracy
0.60 m RMS
REAL TIME KINEMATIC (< 30 Km) – NETWORK RTK
- Fixed RTK Horizontal
5 mm + 0.5 ppm RMS
- Fixed RTK Vertical
10 mm + 0.5 ppm RMS
INTERNAL MODEM
- Band
LTE FDD:
B1/B2/B3/B4/B5/B7/B8/B12/
B13/B18/B19/B20/B25/B26/B28
LTE TDD: B38/B39/B40/B41
UMTS: B1/B2/B4/B5/B6/B8/B19
GSM: B2/B3/B5/B8
Nano SIM card
POWER SUPPLY
- Battery
2 rechargeable and replaceable
7.2 V – 3.400 mAh
Intelligent lithium batteries
- Voltage
9 to 28 V DC external power input with over-voltage protection (5-pin Lemo)
- Working Time
Up to 12 hours (2 batteries hot swap)
- Charge Time
Typically 4 hours
INTEGRATED GNSS ANTENNA
High accuracy multi-constellation antenna, zero phase center, with internal multipath suppressive board
