The S880 incorporates cutting-edge technology to deliver exceptional performance. It boasts a 2W radio transceiver, a positioning speed of 20Hz, and an integrated IMU, ensuring precise position updates. The device’s 8GB memory capacity resolves any storage issues, while the 4G modem ensures reliable connectivity. The S880 is designed to withstand challenging environments. It can function perfectly in temperatures ranging from -40°C to +65°C and has an IP68 rating for water and dust resistance. Additionally, the device is drop-resistant up to 1.5 meters, ensuring reliability even in difficult conditions. Despite its robust capabilities, the S880 maintains a lightweight design of approximately 730g, making it highly portable without compromising resistance. The long-lasting battery guarantees uninterrupted operation for at least 10 hours, further enhancing the device’s versatility and convenience

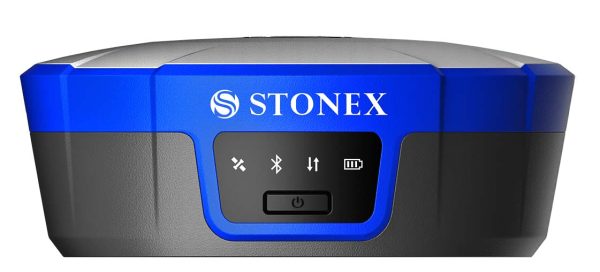

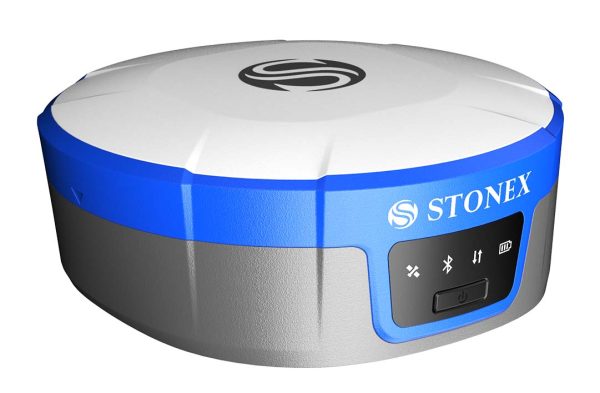

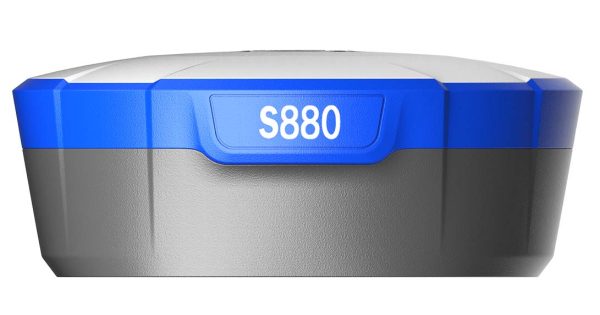

S880 GNSS Receiver
SPECIFICATION
- Satellite signals tracked
GPS: L1 C/A, L1C, L2P, L2C, L5 GLONASS: L1, L2, L3
BEIDOU: B11, B21, B31, B1C, B2a, B2b GALILEO: E1, E5a, E5b, E6
QZSS: L1, L2, L5
IRNSS: L5
SBAS
- PPP
B2b PPP, HAS
- Channels
1408
- Position Rate
Up to 20Hz
- Signal Reacquisition
< 1s
- RTK Signal Initialization
< 5 s
- Hot Start
Typically < 15 s
- Initialization Reliability
> 99.9%
- Internal Memory
8 GB
- Tilt Sensor
IMU
POSITIONING
- Horizontal
2.5 mm + 0.5 ppm RMS
- Vertical
5 mm + 0.4 ppm RMS
REAL TIME KINEMATIC (< 30 Km) - NETWORK RTK
- Fixed RTK Horizontal
8 mm + 1 ppm RMS
- Fixed RTK Vertical
15 mm + 1 ppm RMS
- PPP Accuracy
< 20 cm RMS
- SBAS Accuracy
< 60 cm RMS
INTEGRATED GNSS ANTENNA
- High accuracy multi-constellation antenna, zero phase center, with internal multipath suppressive board
INTERNAL RADIO (optional)
- Type
Tx - Rx 0.5W/2W
- Frequency Range
410-470 MHz
- Channel Spacing
12.5 KHz / 25 KHz
- Ranges
4 Km in urban environment
Up to 12 Km with optimal conditions
- Band
LTE FDD:
B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/
B19/B20/B25/B26/B28
LTE TDD: B38/B39/B40/B41
UMTS: B1/B2/B4/B5/B6/B8/B19 GSM: B2/B3/B5/B8
Nano SIM card
INTERNAL CAMERA FOR STAKE OUT
- Resolution
2 MP
- Image frame
30 frame/s
- Field of view
72°
COMMUNICATION
- I/O Connectors
Type-C for charging and data transfer
- Bluetooth
2.1 + EDR, V5.0
- Wi-Fi
802.11 a/ac/b/g/n
- Web UI
To upgrade the software, manage the status and settings, and download data. Smartphone, tablet, or other electronic device with Wi-Fi capability can be used.
- Reference outputs
RTCM 3.x
- Navigation outputs
NMEA 0183
POWER SUPPLY
- Battery
Internal battery not removable, 3.6V, 12Ah
- Power
Type-C PD 12V
- Working Time
Up to 10 hours
- Charge Time
Typically 4 hours
PHYSICAL SPECIFICATION
- Dimensions
Ø 138 mm x 55 mm
- Weight
730 g
- Operating Temperature
-40°C to 65°C (-40°F to 149°F)
- Storage Temperature
-40°C to 80°C (-40°F to 176°F)
- Waterproof/Dustproof
IP68
- Shock Resistance
Designed to endure to a 1.5 m free drop with no damage
- Humidity
100% non-condensing
