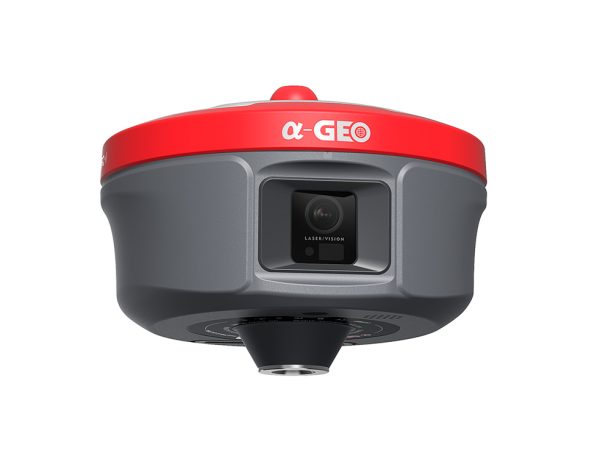

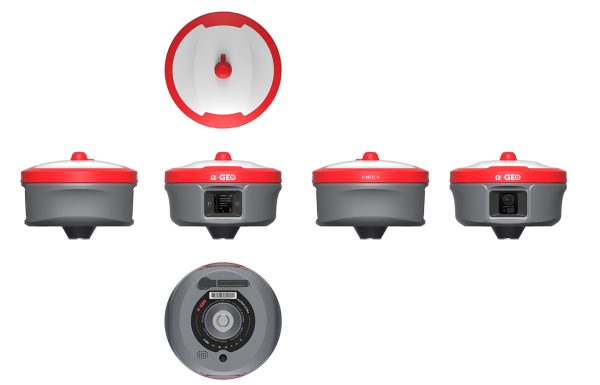

Side Camera - Photogrammetry Engine The dual RGB/IR sensor system performs simultaneous image capture and centimeter-grade (±2cm) real-time geotagging through direct pixel-to-position mapping. Downward Camera - AR Stakeout Assistant Real-time AR design overlay on terrain, supported by a 84° distortion-free FOV and 30fps RTK video for millimeter-accurate stakeout. Laser Measurement Module Featuring a Class 3A eye-safe laser with reflectorless range, this system enables rapid 'walk-and-map' continuous ranging at high sampling rates for efficient position data collection.

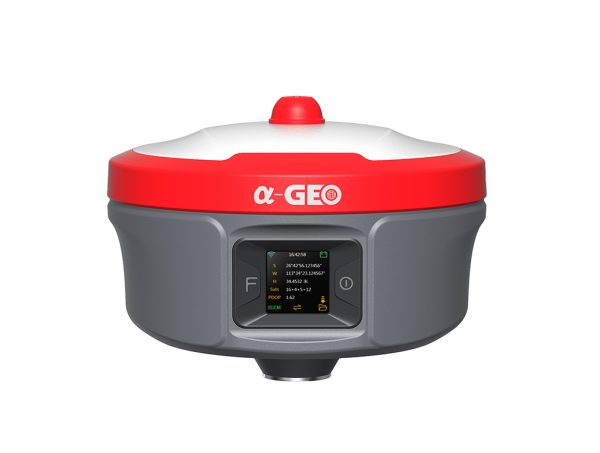

Matrix Ultra
MODEL
- Matrix Ultra Ultra UM980 (8D990)
SPECIFICATION
- Satellite signals tracked simultaneously
GPS: L1 C/A, L2E, L2C, L5
BeiDou: B1, B2, B3
BeiDou: B1, B2, B3
Galileo: E1, E5A, E5B, E5AltBOC, E6
IRNSS: L5
QZSS: L1 C/A, L1 SAIF, L2C, L5
SBAS: L1 C/A, L5
- Channels
336
- Cold start
<45 seconds
- Hot start
<30 seconds
- RTK Initialization time
typically <8 seconds
- Initialization Reliability
>99.99%
- Time accuracy
<20ms
Positioning accuracy
- RTK Accuracy
Horizontal: 8 mm + 1 ppm
Vertical: 15 mm + 1 ppm
- Static Survey Accuracy
Horizontal: 2.5 mm + 0.5 ppm
Vertical: 5 mm + 0.5 ppm
- Autonomous Accuracy
Horizontal: 1.00 m + 1 ppm
Vertical: 1.50 m + 1ppm
- SBAS Accuracy
Horizontal: 0.5 m + 1 ppm
Vertical: 0.85 m + 1 ppm
- Laser measurement
±1cmm + 5mm/m
- Photogrammetry accuracy
2~4 cm 95% (2σ) (10 m, normai lighting conditions)
Sensor
- IMU
Supported, 4D IMU initialization in 3 seconds
- Update rate
400Hz
- Accuracy
<2.5cm within 120°
- Tilt compensation
0~120°
Camera
- Visual camera
Global shutter with 2MP
- AR stakeout camera
5MP
- FOV
84°
PHYSYCAL
- Material
Magnesium alloy
- Dimensions
149x149x111mm
- Weight
< 1.02kg
- Operating temperature
-40℃ ~ +75℃
- Storage temperature
-55℃ ~ +85℃
- Waterproof/Dustproof
IP67 standard, protected from 30min immersion to depth of 1m
- Shock
Survive a 2m pole drop onto concrete
- Vibration
MIL-STD-810G
- Humidity
100% non-condensing
ELECTRYCAL
- Power supply
9~24V DC external power input to 5-pin LEMO port, Supports Type-C fast charging
- Battery
Built-in 7000mAh-7.4V Li-ion battery
- Battery life
20hrs Rover Bluetooth mode, 6hrs Base mode (2W),
24hrs Static mode.
- Battery solution
27000mAh (Optional)
27000mAh (Optional)
- I/O interface
1* 5-pin LEMO port, power supply, RS232, external radio communication port
1* USB Type-C port, charging, data download
1* SIM card slot, Nano SIM
1* UHF antenna interface
- Internal UHF
2W receiver and transmitter, Typical 8km working distance
- Frequency band
410MHz ~ 470MHz, supports frequency modification
- Protocols
Trimtalk450S, Alphatalk15, South, Satel, PCC-EOT
- Cellular network
Full frequency multi-band 4G modem, supports TDD-L TE/FDD-L TE/WCDMNCDMA2000
- WiFi
802.11 b/g standard, access point & client mode, supports accessing to hotspot for correction transmission
- Bluetooth
Bluetooth 5.2 classical/BLE proprietary dual-mode
- Differential data format
RTCM2x, RTCM3x, CMR&CMR+, sCMRx
- Differential data format
RTCM2x, RTCM3x, CMR&CMR+, sCMRx
Data storage
- Memory
64GB, supports cyclic storage, with ability to collect almost 4 years raw observation based on 5s interval
User interaction
- Operating system
Linux OS
- Buttons
Power key and Functional key
- Display
1.3-inch IPS display with 240*240 resolution.
- Voice
Intelligent voice prompts
- Web UI
Supports Web UI configration
