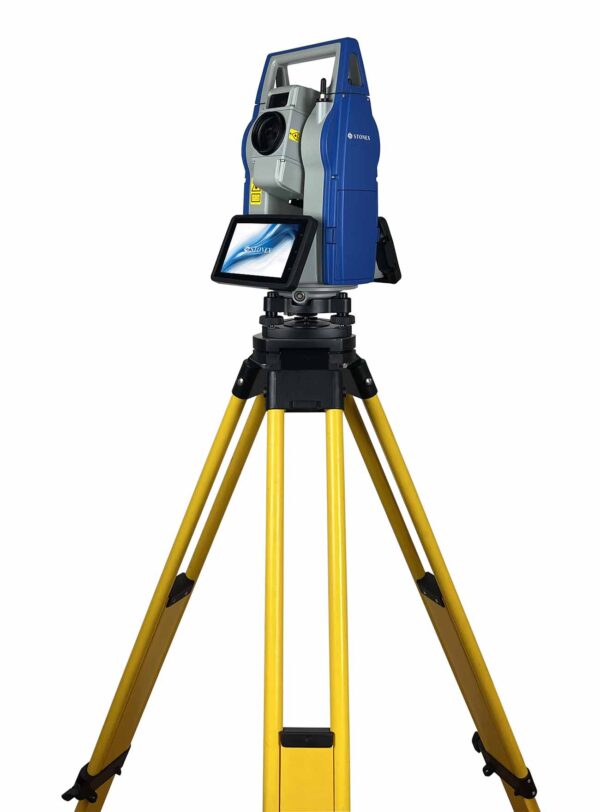

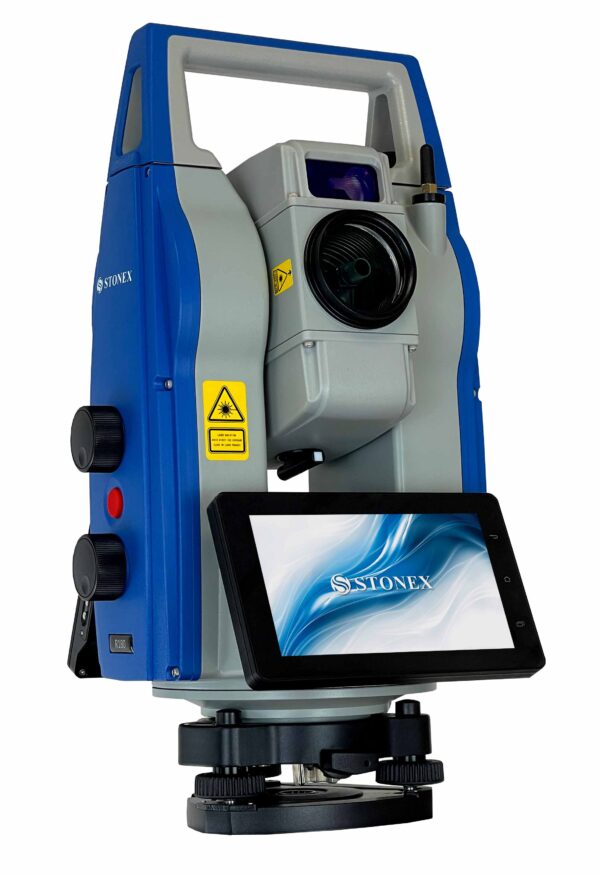

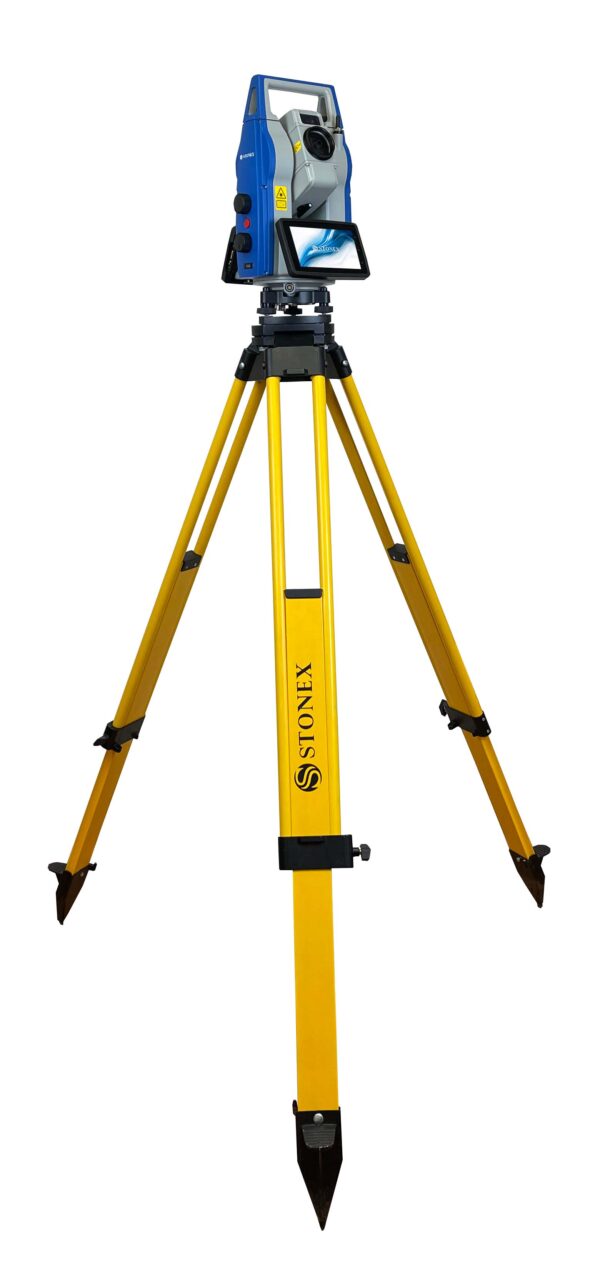

The R180 is a highly accurate and fast Android robotic station . It features a rotation speed of 180 °°/sec. The R180 is available in two versions, 0.5" and 1" second. The instrument has an accuracy of 1 mm + 1 ppm , with a range of up to 1000 m without a prism. Equipped with the Android operating system, the R180 has Cube a as onboard software . This enables users to navigate online and interact with the touch screen in an easy and familiar way.
R180
SPECIFICATION
- Accuracy
0.5”-1”
- Reading system
Absolute four-quadrant
- Display Resolution
0.1〞
- Angle Units
DEG 360°/GON 400/MIL 6.400
TELESCOPE
- Magnification/ Field of view
30x / 1°30’
- Tube length
164.5 mm
- Minimum focus distance
1.5 m
- Objective aperture
Ø 45 mm
- Laser pointer
Red light, coaxial
TILT SENSOR
- Type
Dual-axis liquid-electric sensor
- Compensation range/accuracy
± 3.0'/1”
DISTANCE MEASUREMENT RANGE
- Standard prism mode
6000 m
- Reflectorless
1000 m
DISTANCE MEASUREMENT ACCURACY
- Standard prism mode
1 mm + 1 ppm
- Reflectorless
2 mm + 2 ppm
MEASUREMENT TIME
- Standard prism mode (Tracking/Single)
<0.3 / 0.7 sec
- Reflectorless
Typically 0.8 sec (>500 m, >5 sec)
DISTANCE MEASUREMENT
- Distance Unit
m/US ft/INT ft
- Display Resolution
0.0001 m/0.001 m
0.001 ft/0.01 ft
MOTORIZATION
- Technology
Tdrive
- Max rotation speed
180°/sec
- APC-Target Aiming Range
1.5 - 1000 m
- APC-Measurement Time
<10 sec
- Fast360°-Target Aiming Range
1.5 - 600 m
- Fast360°-Angle
H: 360° - V: 20°
- AIM accuracy
± 1 mm @ 100 m2
ONBOARD FIELD APPLICATION PROGRAMS
- Cube-a TS-GPS
LASER PLUMMET
- Laser type
635nm semiconductor laser
- Accuracy
1mm/1.5 m
- Spot
±1.8mm/1.5 m
LEVEL VIAL SENSITIVITY
- Circular level
8‘/2mm
ENVIRONMENTAL CONDITIONS
- Operating Temperature
-20° C +50° C (-4°F to 122°F)
- Storage Temperature
-20° C +60° C (-4°F to 140°F)
- Waterproof/Dustproof
IP55
- Humidity
95% non-condensing
PHYSICAL SPECIFICATION
- Dimensions
430 x 255 x 235 mm
- Weight including battery and tribrach
9.3 Kg
POWER
- Battery Voltage
14.4 V
- Capacity
6400 mAh
- Type
Li-ion
- Batteries number
2
- Operating time
6 hours (one internal battery)
- Battery charger
100/240 V, charging time 4h
OTHER SPECIFICATIONS
- CPU
MSM8953
- Display
Two sides, 6” color LCD 720x1280 pixel touch screen
- OS
Android
- Memory
RAM: 3GB, ROM: 32GB
- Interface
RS-232
Micro USB
Bluetooth long range
- Data transfer
4G (build-in)
Bluetooth
WLAN
Hotspot
- Camera
Yes
- Guide Light
Yes
- Sensor
Temperature/Pressure
